Redefining AV for presentation, collaboration, and education.

The Atlona Omega™ Series is a family of switching, extension, and video processing solutions with features and technologies designed specifically for today’s meeting, gathering, and instructional spaces.

They’re essential AV system components made for simple user operation to deliver a presentation or video conferencing session, and collaborate with team members. Omega products are also ideal for education applications in classrooms, lecture halls, and student centers.

Discover more below about what makes Omega particularly ideal for modern AV presentation, collaboration, and instruction.

Key Features

  • Simple user operation – connect and present (no button to press)
  • Universal AV connectivity for USB-C®, HDMI®, and DisplayPort™
  • Video conferencing hub – USB interfacing for PCs, cameras, speakerphones, and soundbars
  • Built-in automation with auto-switching, display control, and more
  • Easily adaptable system designs for a facility, organization, educational institution, or enterprise





WHAT MAKES OMEGA UNIQUE FOR MEETING SPACES?

Here are some of the many convenience features for integration and user operation in the Omega Series, making it particularly ideal for today’s presentation and collaboration requirements.

Universal AV format connectivity.

USB-C, DisplayPort, and HDMI.
Learn more

Video conference with Zoom, Skype, and more.

Simple AV and USB connections to the host PC.
Learn more

Compact form factor, discreet systems.

Small and easily mountable onto surfaces.
Learn more

Hands-free, zero UI operation.

Connect it and forget it.
Learn more

Omega System Components

The Omega Series is a family of essential AV system components designed for simple plug-and-play operation to deliver a presentation, video conferencing session, and collaborate with team members.

An Omega system can be a straightforward, point-to-point setup from meeting table to display, or anchored by an AV switcher with remote endpoints at display or presenter locations.

Point-to-point system

(Click to enlarge)

Switching system with endpoints

(Click to enlarge)

Omega Room Builder

The Omega Room Builder is an online resource to help you select Omega Series AV switchers and extenders for your AV integration project or system design.

With the Omega Room Builder, you can easily specify an AV presentation or collaboration system, with the opportunity to contact us for further information or design assistance.

Omega Room Builder user interface

21:9 ultra-wide displays

Many products in the Omega Series support extension and display of 21:9 resolutions for ultra-wide displays, which are increasingly popular for meeting rooms with Microsoft Teams Rooms Front Row and Zoom Rooms.

Ultra-wide displays are also ideal for other applications, such as side-by-side content sharing.

Microsoft Teams Rooms Front Row mockup

Please refer to the specifications for the product pages which list specific information on VESA 21:9 resolutions.

In addition to these Omega Series products, the Avance™ Series, AT-HDR-EX-100CEA-KIT, AT-HDR-EX-70C-KIT, and AT-HDR-EX-70-2PS HDBaseT extenders are compatible with 21:9 resolutions.

OMEGA FEATURED PRODUCTS

Here are the latest additions to the Omega Series of AV integration solutions for meeting rooms, workplaces, and educational institutions. The AT-OME-CS31-SA features a product design and feature set for classroom applications.

Scroll below to see the complete Omega family of AV extension and switching products.

AT-OME-CS31-SA

Three-Input Switcher for HDMI, Mixer Amplifier, and USB Hub

AT-OME-CS31-SA-HDBT

Three-Input Switcher for HDMI and HDBaseT, Mixer Amplifier, and USB Hub

AT-OME-CS31-SA-C

Three-Input Switcher for HDMI and USB-C, Mixer Amplifier, and USB Hub

AT-OME-TX11-WP

Wallplate Transmitter for HDMI

AT-OME-WP-BKT

Wallplate Bracket Mount

TRANSMITTERS

Direct connectivity for source devices with HDMI or USB-C outputs, as well as USB for web and soft codec conferencing applications.

AT-OME-ST31A

  • Three-input switcher for HDMI and USB-C
  • Automatic input selection and display control
  • Local HDMI output with 4K downscaling
  • Audio de-embedding

Learn More

AT-OME-EX-TX

  • Transmitter for HDMI with USB
  • USB 2.0 hub

Learn More

AT-OME-TX11-WP

  • Wallplate transmitter for HDMI

Learn More

AT-OME-EX-TX-WP

  • Wallplate transmitter for HDMI with USB
  • USB 2.0 hub

Learn More

AT-OME-EX-TX-WPC

  • Wallplate transmitter for USB-C
  • USB 2.0 hub

Learn More

AT-OME-EX-TX-WP-E

  • EU/UK wallplate transmitter for HDMI with USB
  • USB 2.0 hub

Learn More

AT-OME-TX21-WP-E

  • EU/UK wallplate switcher for HDMI and USB-C
  • Automatic input selection and display control

Learn More

AT-OME-SW21-TX-WPC

  • Wallplate switcher for HDMI and USB-C
  • USB 2.0 hub
  • Automatic input selection and display control

Learn More

Switchers

A family of compact matrix switchers designed specifically for the needs of today’s small to medium-sized presentation applications.

AT-OME-CS31-SA

  • 3×1 switcher with USB hub, audio mixer, and amplifier
  • 3 HDMI inputs, 1 HDMI output
  • USB routing between 2 hosts and 4 peripherals
  • 2 x 25 watts @ 4/8 ohms amplifier
  • Mix 3 line inputs, de-embedded HDMI, and USB audio
  • Duck program audio when signal detected on balanced input
  • Mute audio with PA sense or contact closure
  • Automatic display control via activity or occupancy

Learn More

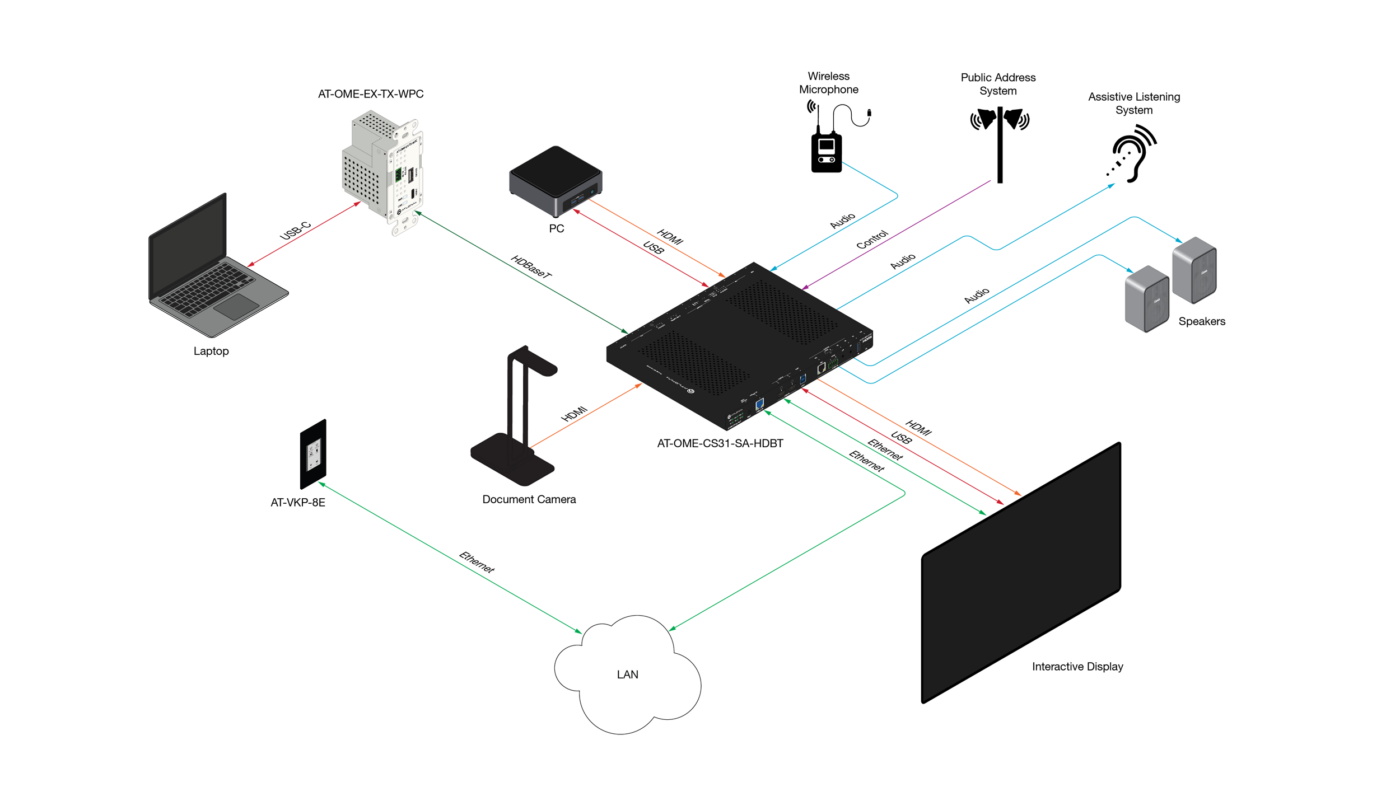

AT-OME-CS31-SA-HDBT

  • 3×1 switcher with USB hub, audio mixer, and amplifier
  • 1 HDBaseT and 2 HDMI inputs, 1 HDMI output
  • USB routing between 2 hosts and 4 peripherals
  • 2 x 25 watts @ 4/8 ohms amplifier
  • Mix 3 line inputs, de-embedded HDMI, and USB audio
  • Duck program audio when signal detected on balanced input
  • Mute audio with PA sense or contact closure
  • Automatic display control via activity or occupancy

Learn More

AT-OME-CS31-SA-C

  • 3×1 switcher with USB hub, audio mixer, and amplifier
  • 1 USB-C and 2 HDMI inputs, 1 HDMI output
  • USB routing between 2 hosts and 4 peripherals
  • 2 x 25 watts @ 4/8 ohms amplifier
  • Mix 3 line inputs, de-embedded HDMI, and USB audio
  • Duck program audio when signal detected on balanced input
  • Mute audio with PA sense or contact closure
  • Automatic display control via activity or occupancy

Learn More

AT-OME-PS62

  • 6×2 matrix presentation switcher with USB
  • HDMI, HDBaseT and USB-C inputs
  • HDBaseT and HDMI outputs
  • USB 3.0 hub with switching between host PCs
  • Automatic input selection and display control
  • 4K upscaling and downscaling on HDMI output
  • Audio embedding and de-embedding with mic / line matrix mixing

Learn More

AT-OME-MS52W

  • 5×2 matrix switcher with USB
  • HDMI, DisplayPort, USB-C, and wireless AV inputs
  • HDBaseT and HDMI outputs
  • Native wireless casting for iOS®, Android, Mac®, Chromebook, and Windows®
  • USB 2.0 hub with switching between host PCs
  • Automatic input selection and display control
  • Audio embedding and de-embedding

Learn More

AT-OME-MS42

  • 4×2 matrix switcher with USB
  • HDMI, DisplayPort, and USB-C inputs
  • HDBaseT and HDMI outputs
  • USB 2.0 hub with switching between host PCs
  • Automatic input selection and display control
  • 4K downscaling on HDMI output
  • Audio de-embedding

Learn More

AT-OME-MS42-HDBT

  • 4×2 matrix switcher with USB
  • HDMI, HDBaseT, and USB-C inputs
  • HDBaseT and HDMI outputs
  • USB 2.0 hub with switching between local and remote host PCs
  • Automatic input selection and display control
  • 4K downscaling on HDMI output
  • Audio de-embedding

Learn More

AT-OME-SW32

  • 3×2 matrix switcher for HDMI and USB-C
  • Automatic input selection and display control
  • 4K downscaling (HDMI output 1)
  • Audio de-embedding

Learn More

AT-OME-MH21

  • 2×1 switcher for HDMI and USB-C
  • USB 3.0 hub with switching between host PCs
  • Automatic input selection and display control
  • 4K downscaling
  • Audio de-embedding

Learn More

AT-OME-MH21-CP

AT-OME-MH21-CP

  • 2×1 switcher for HDMI and USB-C
  • USB 3.0 hub with switching between host PCs
  • USB-C port offers up 60 W device charging
  • Automatic input selection and display control
  • 4K downscaling
  • Audio de-embedding

Learn More

Receivers

Slim and compact for discreet installation, and a range of features and capabilities beyond receiving HDBaseT from a transmitter or switcher.

AT-OME-EX-RX

  • Receiver for HDMI with USB
  • USB 2.0 for peripherals

Learn More

AT-OME-RX11

  • Receiver for HDMI with audio output
  • Audio de-embedding

Learn More

AT-OME-SR21

  • Scaling receiver for HDMI with USB
  • Local HDMI input
  • USB 2.0 hub
  • Automatic input selection and display control
  • 4K upscaling and downscaling
  • Audio de-embedding

Learn More

AT-OME-RX21

  • Scaling receiver for HDMI
  • Local HDMI input
  • Automatic input selection and display control
  • 4K upscaling and downscaling
  • Audio de-embedding

Learn More

AT-OME-RX31

  • Scaling receiver for HDMI
  • Dual HDBaseT inputs
  • Local HDMI input
  • Automatic input selection and display control
  • 4K upscaling and downscaling
  • Audio de-embedding

Learn More

Extenders

Simple yet effective integration solutions for extending AV, control, and USB from a table, wall, floor box, or furniture to a display or projector.

AT-OME-EX-KIT-LT

  • Extender for HDMI with USB
  • USB 2.0 hub at transmitter
  • USB 2.0 at receiver for peripherals
  • Extends 4K up to 130 feet (40 meters)

Learn More

AT-OME-EX-WP-KIT

  • Wallplate extender for HDMI with USB
  • USB 2.0 hub at transmitter
  • USB 2.0 at receiver for peripherals
  • Extends 4K up to 330 feet (100 meters)

Learn More

AT-OME-EX-WP-KIT-LT photo

AT-OME-EX-WP-KIT-LT

  • Wallplate extender for HDMI with USB
  • USB 2.0 hub at transmitter
  • USB 2.0 at receiver for peripherals
  • Extends 4K up to 130 feet (40 meters)

Learn More

AT-OME-ST31A-KIT

  • Extender for HDMI and USB-C
  • 3×1 switcher (two HDMI, one USB-C)
  • USB-C for AV and optional power (no data)
  • Extends 4K up to 330 feet (100 meters)

Learn More

Frequently asked questions

The Omega Series lets you specify and deliver cost-friendly AV integration solutions for today’s presentation and collaboration settings, especially huddle rooms and small to mid-sized spaces where presenters bring in their own devices to present or share content.

Omega also makes it very easy to integrate AV systems for video conferencing with popular platforms such as Zoom Rooms, Cisco Webex, and Microsoft Teams.

Yes. The affordability of the Omega Series makes it efficient and cost-effective to specify AV systems for all rooms throughout a facility or organization. Furthermore, with Velocity Device Manager, additional time and cost savings are realized when all rooms are centrally managed from a web portal – from initial deployment to system monitoring and firmware updates.

Velocity Device Manager is available as part of Velocity™ control systems, or as a free virtual machine software download.

Today’s video conferencing systems are about connecting PCs and peripherals through USB, alongside video to the display. The challenge arises when you need to make multiple USB and HDMI connections from a meeting table to the wall. Omega AV systems solve this challenge by simplifying to a single cable carrying USB, HDMI, and other signals from the table to the display.

Omega Series matrix switchers also allow an easy upgrade path for legacy video conferencing systems, letting you integrate the hardware codec alongside USB peripherals for soft codec conferencing.

Absolutely. Please visit the Omega Room Builder, a resource to help you select Omega Series AV switchers and extenders for your AV integration project or system design.

The Omega Series is a successor to these longstanding product families in that they’re optimized for the latest source devices (USB-C interfaces), compact AV matrix switching needs for smaller meeting spaces, 4K/60 4:4:4 and HDR compatibility, and USB video conferencing.

The HDVS and CLSO Series continue to be very popular with integrators and end users in a wide variety of traditional AV environments and applications, as well as budget requirements.

WordPress Tables Plugin

* 18 Gbps supported over local video I/O ports; 10 Gbps over HDBaseT.
** Applies to HDVS-200 transmitters only.

Yes. The AT-HDVS-200-TX and AT-HDVS-200-TX-WP switching transmitters feature VGA input, and can be used with Omega Series receivers and select switchers.

AT-HDVS-200-TX

Three-Input Switcher for HDMI and VGA

AT-HDVS-200-TX-WP

Wallplate Switcher for HDMI and VGA

The following Omega Series transmitters and receivers can be used with the CLSO and SW Series AV switchers for extending AV, control, and Ethernet, plus remote device powering. Other models include USB extension and are not recommended for use with these product families.

AT-OME-ST31A

Three-Input Switcher for HDMI and USB-C

AT-OME-TX21-WP-E

Wallplate Switcher for HDMI and USB-C – EU / UK

AT-OME-RX11

Receiver for HDMI with Audio

AT-OME-RX21

Scaler for HDBaseT and HDMI

Omega Series systems are designed with built-in automation features that allow standalone, plug-and-play operation when presenters connect their device into the system. If desired, they’re also ready for integration with a Velocity System, especially if the project scope calls for AV control alongside other functions such as video conferencing.

OMEGA SYSTEM APPLICATIONS

Here are some examples of the many ideal application scenarios for the Omega Series, in environments ranging from small, open gathering areas to huddle rooms, conference rooms, classrooms, and more.

For more information on Omega AV system applications, please visit the Omega Room Builder, an online resource to help you get started in your AV integration project or system design.

Many Omega Series products are ideal for open spaces, with slim-profile enclosures for concealed installation in furniture and behind wall-mounted displays. The AT-OME-ST31A is an HDMI and USB-C switcher that feeds into the AT-OME-RX11 behind the display.

No active user control or pressing buttons are necessary. Simply connect a laptop and the display fires up from standby while switching to the appropriate input.

Omega provides an easy and affordable path to enabling huddle rooms with video capability. The AT-OME-EX-KIT lets you go one step further and add video conferencing with little or no extra effort. Just connect your USB peripherals, such as the Atlona AT-HDVS-CAM.

The AT-OME-EX-KIT also allows you to use a touch-enabled display, so you can provide mouse control of your laptop from the screen.

An essential feature of many Omega AV switchers is USB extension over HDBaseT. This enables clean, efficient integration from meeting table to display, with just a single network cable between the two locations for video, audio, data, and device powering.

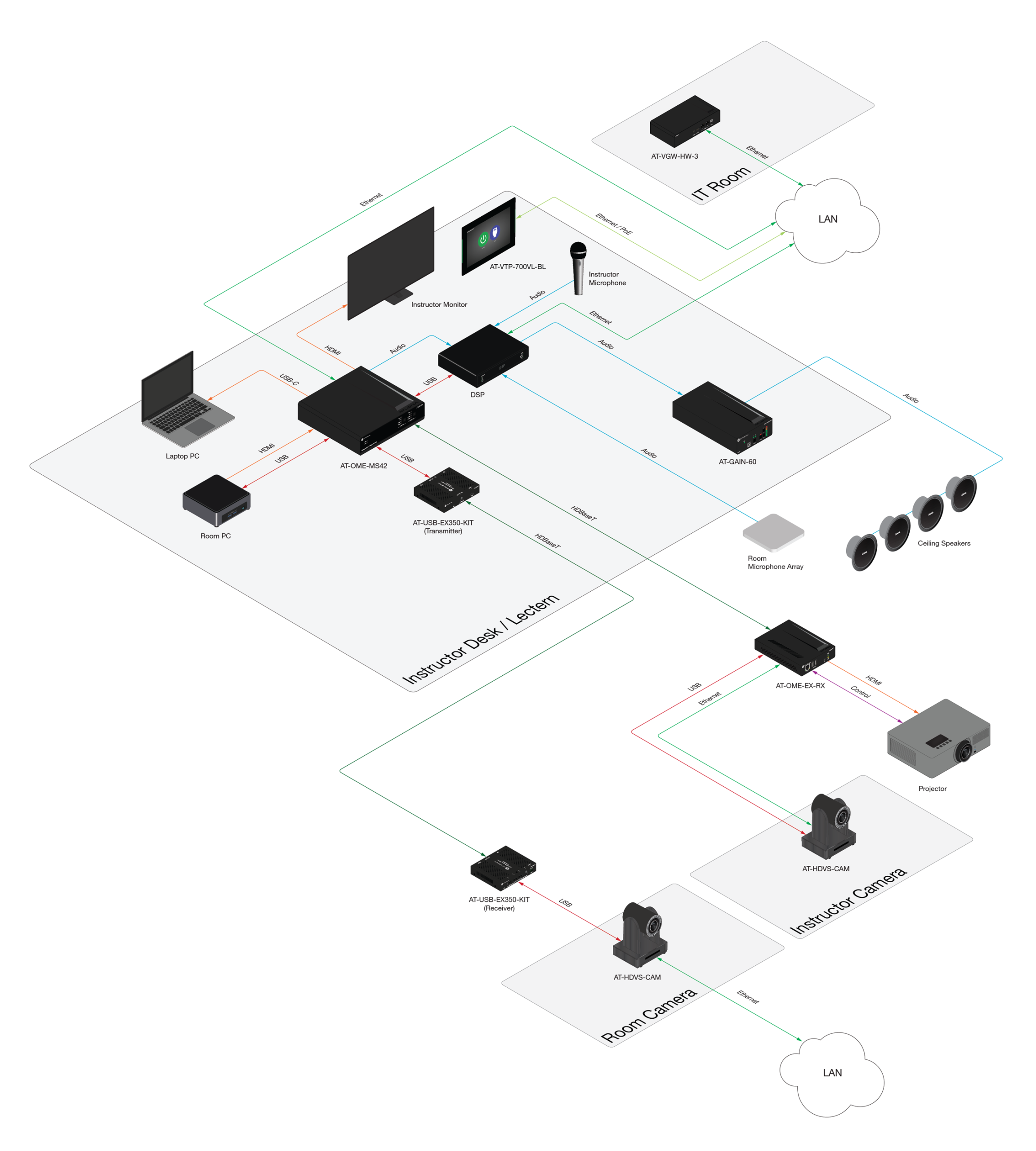

The AT-OME-MS42 is a compact, 4×2 matrix switcher that can be installed below a table and powered remotely by the AT-OME-EX-RX receiver at the display. It features universal laptop AV connectivity with USB-C, DisplayPort, and HDMI inputs.

Bonus feature: the USB-C input allows PC host connectivity to the built-in USB hub, and also can power the laptop.

Omega AT-OME-MS42 application diagram

The AT-OME-SW32 is a one-of-kind: a compact 3×2 matrix switcher with USB-C and HDMI inputs. The two matrixed HDMI outputs make it perfect for huddle rooms, meeting rooms, and other spaces with the desire for two independent displays.

Specify the OME-SW32 and avoid a more expensive, over-specified matrix switcher just to feed two displays. It also offers built-in display control and configurable auto-switching modes.

For traditional conference room scenarios, look no further than the AT-OME-PS62. This multi-format 6×2 matrix switcher comes with USB-C and HDMI inputs, as well as two HDBaseT inputs for receiving AV and USB from locations away from the switcher (such as a wall or floor box).

Matrixed HDMI and HDBaseT outputs provide an opportunity for a primary wall-mounted display, plus a secondary display on the side wall for displaying signage content or room scheduling information.

The OME-PS62 is equipped for audio integration with mic input, matrix mixing, embedding and de-embedding options, and more.

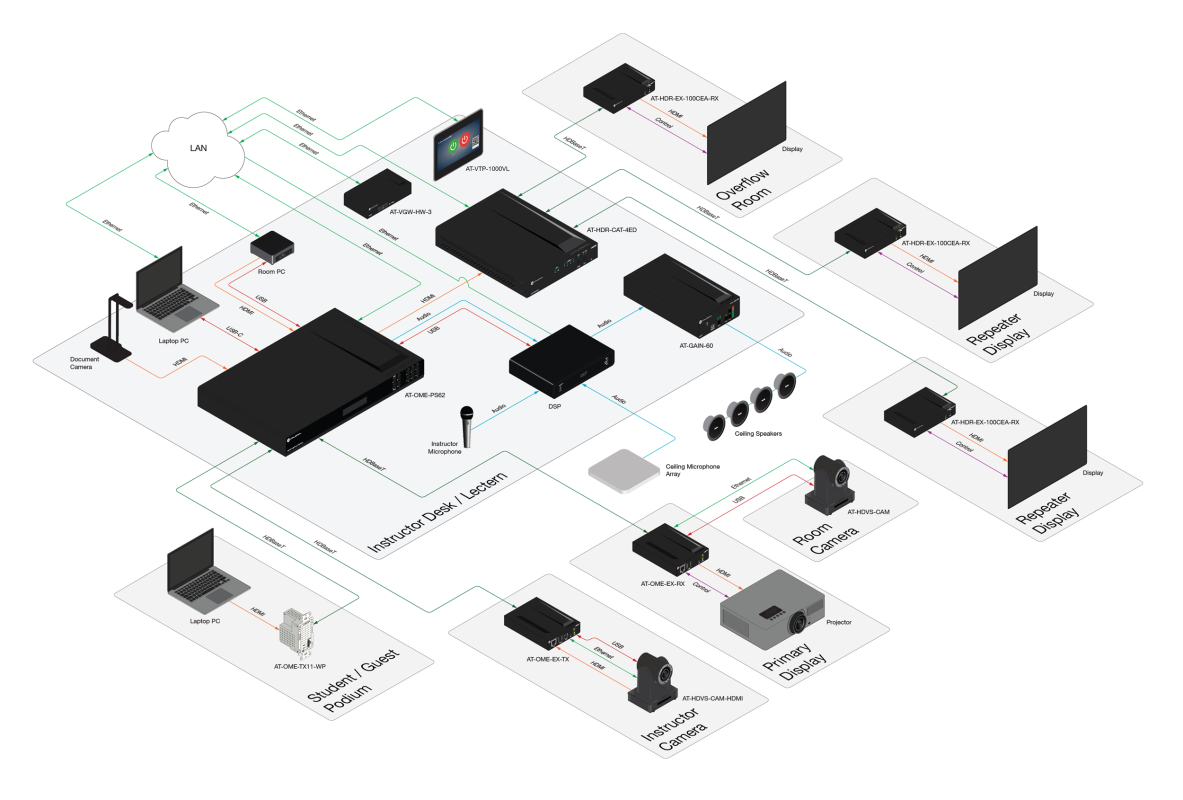

The AT-OME-PS62 is a great AV centerpiece for active learning classrooms, with the two HDBaseT inputs receiving input from two student pods with an AT-OME-ST31A three-input switcher at each location.

The OME-PS62 can be situated at the instructor’s lectern and used to connect into resident AV sources such as a PC and document camera, as well as the instructor’s laptop.

The HDBaseT output is ideal for the main display or projector, while the HDMI output feeds into the instructor’s confidence monitor. For sound reinforcement, the OME-PS62 can feed mic and program audio into an amplifier and speakers.

COMPLEMENTARY INTEGRATION PRODUCTS

Several Atlona products and technologies serve as ideal complements to the Omega Series, adding AV system control, multi-room AV asset management, BYOD cable access, and video conferencing.

Velocity™ AV Control

For user control of set-top boxes, Blu-ray players, and video conferencing functions, add the Velocity System for AV control. Use Velocity touch panels or BYOD mobile devices for user control.

AV Device Management

Use Velocity Device Manager to centrally configure, deploy, and manage Omega AV systems. It is included with Velocity gateways or as a free virtual machine software download.

Velocity Room Scheduling

Also standard with the Velocity System platform is room scheduling integration with third-party calendar platforms. Install a Velocity touch panel for viewing room status and booking a meeting.

AT-VPS-RG

Velocity Premier Services – Remote Gateway allows dealers and AV / IT technology managers to access a Velocity gateway over the internet for remote configuration, management, and control.

AT-ANC-108D

Provides convenient button control of select Omega Series AV switchers, with LED-illuminated, multi-color buttons that can be preconfigured or individually programmed.

AT-WAVE-101

Wireless presentation system designed for quick and easy content sharing from up to four PCs or mobile devices, with features to enhance education, corporate, and other applications.

AT-DISP-CTRL

The AT-DISP-CTRL provides automated display control via IP, RS-232, IR, or CEC. It’s ideal for Omega Series extender kits without display control.

AT-USB-EX100-KIT

This is an HDBaseT kit for extending USB from a table, rack, floor box, or lectern to a location further away where conventional USB cabling will not suffice.

AT-HDVS-CAM

Enterprise-grade PTZ cameras that seamlessly integrate with the Omega Series. Available in three versions with USB, HDMI + USB, and HDBaseT interfaces, each in black or white.

AT-CAP-FC110

4K ePTZ auto-framing camera ideal for use in video conferencing, distance learning, and other applications in huddle rooms and small to medium-sized meeting spaces.

AT-CAP-SP100

The AT-CAP-SP100 speakerphone is designed for use with unified communications platforms in small/medium sized corporate meeting environments.

Pocket™ 3H (AT-PKT-3H)

A tabletop cable access enclosure that supports three AV cables for presenters to connect their laptops. An under-table bag conceals cables for a clean, professional installation.

LinkConnect™ Cables

High performance cables with 4K/60 4:4:4 capability and HDMI, USB-C, and DisplayPort interfaces. They feature a secure locking connector designed for compatible Atlona switchers.

AT-OME-WP-BKT

This is a mounting accessory for Omega Series wallplate transmitters, designed for surface-mount installation below a meeting table, or in a lecture, desk, credenza, or other furniture.

AT-GAIN-120

This Class D power amplifier delivers two channels of 60 watts each into 4 or 8 ohms, or a single channel of 120 watts at 70 or 100 volts. Available is a Dante network audio interface card.

AT-GAIN-60

The AT-GAIN-60 is a compact, Class D power amplifier that delivers  two channels of 30 watts each into 4 or 8 ohms, or a single channel of 60 watts at 24, 70, or 100 volts.

AT-PA100-G2

The AT-PA100-G2 is a compact, Class D power amplifier that delivers two channels of 20 watts each into 4 ohms, or a single, bridged channel of 40 watts at 8 ohms.
