Velocity: IP-based AV control and management

Velocity 2.0: AV control, asset management, and room scheduling

The Atlona Velocity™ System is an innovative AV control platform that brings together a unique set of capabilities resulting in easy system scalability and a low cost of ownership. Velocity’s IP-based system architecture allows a single, networked processor to serve multiple AV systems simultaneously, leading to overall AV system control efficiency. Velocity also saves valuable time with the ability to configure control systems in minutes, and quickly make system modifications free of extensive programming.

NEW for 2020! In addition to AV control, Velocity serves as an integrated server for room scheduling touch panels, as well as centrally deploying and managing a network of Atlona AV devices.

Key Features

  • NEW! IP-based platform for AV control, plus room scheduling and AV asset management
  • NEW! Use Velocity touch panels for user control, or use BYOD mobile devices at no extra cost
  • NEW! Room scheduling server for Velocity touch panels (Google Calendar™ and Microsoft® Office 365™)
  • NEW! Includes Velocity Cloud Lite for off-site configuration, monitoring, and servicing AV control systems and scheduling panels
  • NEW! Atlona Management System (AMS) for centrally configuring, deploying, and managing Atlona AV devices
  • Low cost of ownership from a single, networked processor serving multiple room systems
  • Configure, deploy, and modify control systems in minutes – no programming necessary

New features and products for the Velocity System will be available January 2020. Please contact your Atlona representative for more information.

Take a Closer Look

Save time with easy configuration.

Configure control systems in minutes with simple, intuitive navigation and menu selections.

Learn More

Affordable scalability.

Serve multiple AV systems from a single processor, simplifying integration and lowering your costs.

Learn More

Fully customizable control interface.

Velocity makes it easy to create a simple, yet elegant and powerful UI.

Learn more

Touch panels or BYOD.

Control AV systems with high performance touch panels or a user’s mobile device.

Learn More

Enhance collaboration.

Velocity enables AV system integration into Cisco and Zoom meeting spaces with video conferencing.

Learn More

System redundancy for peace of mind.

Add a second processor for redundancy and built-in disaster recovery.

Learn More

Room scheduling built-in.

In addition to AV control, the Velocity System is a room scheduling server for Velocity touch panels.

Learn More

Remote servicing from the cloud.

Every Velocity System includes Velocity Cloud Lite monitoring and management.

Learn More

AV asset management.

Atlona Management System (AMS) for centrally configuring and deploying AV devices.

Learn More

Velocity System Gateways

At the heart of every Velocity System is the gateway, a server that provides the processing to serve multiple rooms of AV control, plus room scheduling panels. Each gateway also includes the Atlona Management System (AMS) for configuring and servicing Atlona switchers and other AV devices, as well as Velocity Cloud Lite remote management and the unlimited use of BYOD mobile devices for AV control.

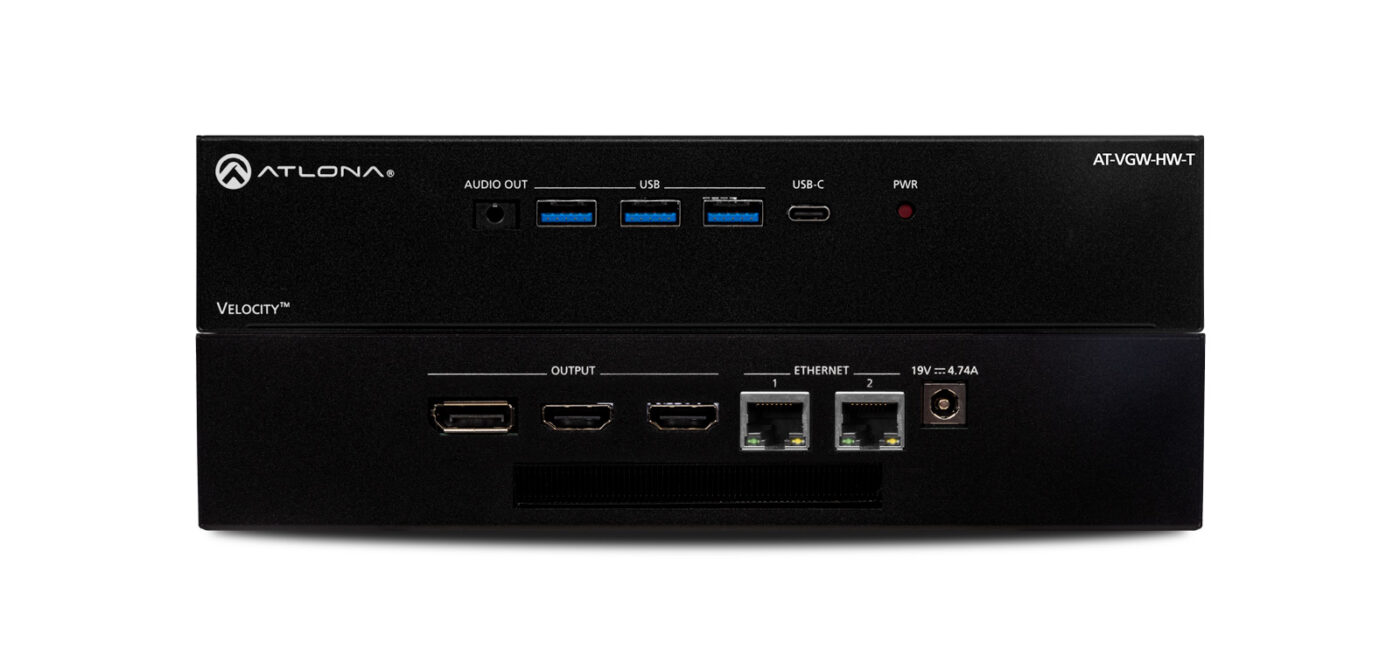

Hardware Gateway

The VGW-HW is a hardware gateway, available in 3 different room capacity configurations to suit your AV integration requirements. Velocity is the only platform that lets you serve multiple rooms of AV control from one processor.

* A room can include AV control, room scheduling, or both. For example, with the AT-VGW-HW-10 there can be a total of 6 rooms with AV control only, 4 rooms for control and scheduling, and 16 rooms with scheduling only.

** Total available IP device capacity for AV system control, room scheduling, and AV asset management.

Software Gateway

Also available is the AT-VGW-SW software gateway, for installation on standard IT server infrastructure. It delivers up to 20 rooms with AV system control, with additional rooms available through a simple license (AT-VRL-SW).

* A room can include AV control, room scheduling, or both. For example, with the AT-VGW-SW there can be a total of 12 rooms with AV control only, 8 rooms for control and scheduling, and 32 rooms with scheduling only.

Total available IP device capacity for AV system control, room scheduling, and AV asset management is dependent on server hardware.

Velocity System: From Simple to Advanced Applications

Velocity Systems deliver processing for AV system control.

In addition to AV control, Velocity Systems also include room scheduling, which can be used alongside AV control in a room, or as a standalone touch panel installation.

A Velocity System gateway is designed to serve multiple rooms for AV control and room scheduling, while also providing asset management for centrally deploying and managing AV devices.

Add a second Velocity System gateway for continuous system reliability and automatic disaster recovery.

A Velocity System gateway can be remotely monitored, managed, and serviced with Velocity Cloud Lite, included at no extra cost.

Velocity System Elements

Gateways

IP-based server gateways for AV control, room scheduling, and asset management. They’re available as a server appliance, or can be hosted on standard IT server infrastructure.

AT-VGW-HW

Gateway for AV Control and Management plus Room Scheduling

AT-VGW-SW

Software Gateway for AV Control and Management plus Room Scheduling

AT-VRL-SW

Additional Room License for Velocity AT-VGW-SW Software Gateway

Touch Panels

Sleek, stylistic touch panels in 5.5” and 8” sizes with a table mount available. Velocity also allows AV control with tablets, smartphones, PCs, and more – at no extra cost.

AT-VTP-550

5.5″ Touch Panel

AT-VTP-800

8″ Touch Panel

AT-VTP-TMK

Tabletop Mounting Kit for 8″
Touch Panel

Accessories

The Velocity System includes converters for IP control commands to IR, RS-232, and relay / sensor. Add as many converters as needed for your installation.

AT-VCC-IR-KIT

IP to IR Command Converter

AT-VCC-RELAY-KIT

IP to Relay / Sensor Signal Converter

AT-VCC-RS232-KIT

IP to RS-232 Command Converter
