AT-USB-EX100-KIT *** Discontinued ***

AT-USB-EX100-KIT *** Discontinued ***

AT-USB-EX100-KIT

  • USB 2.0 interfacing and extension up to 330 feet (100 meters)
  • Transmitter features a USB type B plus two USB type A ports
  • Receiver features four USB type A ports
  • Compact enclosures mount in furniture, behind a display, or above a projector
SKU: AT-USB-EX100-KIT Category:

NOTE: The AT-USB-EX100-KIT is discontinued. The AT-USB-EX350-KIT is the recommended replacement product.

USB Extender Kit

The Atlona AT-USB-EX100-KIT is a high speed USB extender kit. It supports extension of USB 2.0 data up to 330 feet (100 meters) using a single, cost effective Category-type twisted pair cable. The AT-USB-EX100-KIT is ideal for popular conferencing applications such as Zoom® and Microsoft® Teams®, where USB components including laptops, cameras, microphones, and speakers are located in different areas of the room. The kit is also suitable in classrooms for routing USB between an interactive display or projector, and the instructor’s laptop. The AT-USB-EX100-KIT is comprised of locally powered transmitter and receiver endpoints. Compact enclosures and included brackets allow the devices to be discretely mounted near computers and USB peripherals. The AT-USB-EX100-KIT is a great solution for connecting USB components separated by distances not supported by traditional cabling.

Applications

  • Video conferencing – The USB-EX100-KIT is ideal for soft codec and web-based conferencing applications, allowing a computer and speakerphone on a desk or meeting table to interface with a USB camera mounted across the room.
  • Interactive displays and projectors – The USB-EX100-KIT provides USB extension for touch-enabled displays and projectors, allowing remote control of a computer located at a meeting table, lectern, or desk.
  • Lecture Capture – The USB-EX100-KIT extends USB signals from a camera installed at the back of a classroom or lecture hall to the capture equipment located in the podium or rack.

Features

  • Point-to-point USB extender kit for devices such as cameras, speakers, and microphones as well as standard HID class peripherals
  • Extends USB signals up to 330 feet (100 meters) over a single category type twisted pair cable
  • USB 2.0 compatibility with a maximum data rate of 315 Mbps supported over HDBaseT
  • Transmitter features USB type B interface for connection to a host PC, plus two USB type A ports for peripheral devices
  • Receiver features four USB type A ports for peripheral devices
  • Compact enclosures can be mounted in furniture, behind a display, or above a projector
  • Kit includes transmitter, receiver, two power supplies, wall/table mounting brackets, and installation guide
  • Ideal USB integration solution for video conferencing and UC platforms such as Zoom, Skype® for Business, Microsoft® Teams®, Cisco® Webex®, and GoToMeeting®
  • To view the product warranty, use the following link: https://atlona.com/warranty/

Videos

What is the Atlona AT-USB-EX100-KIT?

The USB-EX100-KIT is an extender kit that supports transmission of USB 2.0 data up to 330 feet (100 meters) using a single, cost effective Category-type twisted pair cable.

Specifications

USB
Signal 2.0
Maximum Data Rate 315 Mbps
Maximum Current Draw 500 mA (per Type-A port)
Distance Feet Meters
CAT5e/6 330 100
Indicators
PWR (TX / RX) 1 – LED, green
Connectors
DEVICE (TX) 2 – USB Type-A
HOST (TX) 1 – USB Type-B
FW (TX) 1 – micro-USB
HDBaseT OUT (TX) 1 – RJ45
DC 5V (TX) 1 – Barrel connector, locking
DEVICE (RX) 4 – USB Type-A
FW (RX) 1 – micro-USB
HDBaseT IN (RX) 1 – RJ45
DC 5V (RX) 1 – Barrel connector, locking
Environmental Fahrenheit Celsius
Operating Temperature +32 to +122 0 to +50
Storage Temperature -4 to +140 -20 to +60
Operating Humidity (RH) 20% to 90%, non-condensing
Power
Consumption

 TX: 8.27 W
RX: 15.76 W
External Power Supply 100 – 240 V AC, 50/60 Hz
Output: 5 V / 4 A DC
Dimensions (H x W x D) Inches Millimeters
Unit (TX/RX) 1.02 x 4.29 x 3.76 26 x 109 x 95.5
Power Supply (AT-PS-54-L) 1.22 x 1.97 x 3.17 31 x 50 x 80.6
Weight Pounds Kilograms
Device (TX) 0.619 0.281
Device (RX) 0.617 0.280
Certification
Device CE, FCC
Power Supply CE, FCC, UL

Diagrams

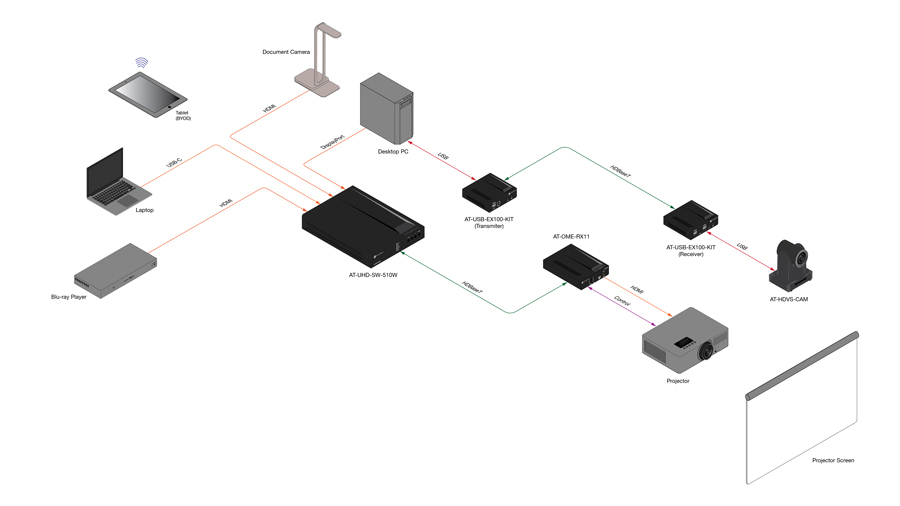

Lecture Capture

Upgrade classroom AV system with USB camera for recording lessons with lecture capture software running on the room.

Video Conferencing

Add a camera to another part of the meeting space or classroom for an alternate view in soft codec video conferencing sessions.


Resources

Documentation

pdf-icon Datasheet
pdf-icon Installation Guide and Manual

Declaration of Conformity

pdf-icon AT-USB-EX100-KIT
pdf-icon EC AT-USB-EX100-KIT
pdf-icon UK AT-USB-EX100-KIT

CAD File

cad-icon-(1) AT-USB-EX100-KIT

Related Products

Product Description
AT-HDVS-CAM PTZ Camera with USB

Similar Products

Product Description
AT-OME-EX-KIT-LT HDBaseT extender kit for HDMI, power, control, and USB
AT-OME-EX-KIT HDBaseT extender kit for HDMI, Ethernet, power, control, and USB
AT-OME-EX-WP-KIT Wallplate HDBaseT extender kit for HDMI, power, control, and USB
AT-OMNI-311 USB to IP Adapter for Host Device
AT-OMNI-324 IP to USB Adapter for Peripheral Devices

AT-USB-EX100-KIT Firmware

Firmware AT-USB-EX100-KIT Firmware Version 1.0.3
File Size 848 KB
Date 05.20.24

Release Notes

Version 1.0.3

Features

  • Features

    • The maximum number of allowed (physical) USB hubs supported in the system increased
      from 6 to 9.

    Bug Fixes

    • Updated to Valens Firmware 2.200.17.
    • Resolved compatibility issue with ClearOne Versa Mediabar™ Video Soundbar.
    • Resolved compatibility issue with Poly Studio P15 and R30.
Previous Releases
Version 1.0.2

Features

  • Added support for applications that require VID and PID detection (for example, Logitech Sync).

Bug Fixes

  • Updated to Valens Firmware 2.200.9.
  • Resolved an issue where USB device enumeration is not reliable when those devices are connected to the AT-USB-EX100-KIT via two HDBase-T extenders (as opposed to being directly connected to the AT-USB-EX100-KIT).
Version 1.0.1

Features

  • Added support for revision C and newer hardware.
  • Improved overall bandwidth performance from 280 Mbps to 315 Mbps.

Bug Fixes

  • Fixed issue where after a power cycle of Logitech Pro PTZ 2, the USB host will no longer enumerate the camera.
  • Update to Valens Firmware 1.201.9.
Version 1
  • Factory firmware
