Three-Input HDBaseT Transmitter for VGA and HDMI Video

AT-HDVS-200-TX-PSK

  • 3×1 HDBaseTTM switcher with two HDMI® inputs and one VGA input
  • Local AC powered version of AT-HDVS-200-TX – ideal for extension to an HDBaseT-equipped projector
  • HDBaseT transmitter for AV, Ethernet, and control up to 330 feet (100 meters)
  • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling (with a compatible HDBaseT-equipped display or the AT-OME-RX11)
  • Automatic input selection and automatic display control
  • Front panel input selection, display on/off, and volume control
  • TCP/IP and RS-232 control

SKU: AT-HDVS-200-TX-PSK Categories: , , , , , , , , , , , , , , , , , Tags: , , , , , , , , , , , , , , ,

NOTE: The AT-HDVS-200-RX receiver is discontinued. The recommended receiver is the AT-OME-RX11.

Three-Input HDBaseT Transmitter for VGA and HDMI Video

The Atlona AT-HDVS-200-TX-PSK is a 3×1 switcher and HDBaseT transmitter with two HDMI inputs and a VGA input with audio. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded audio, control, and Ethernet can be transmitted up to 330 feet (100 meters). The two-channel audio input can be assigned to any of the video inputs and embedded for HDBaseT transmission. The HDVS-200-TX-PSK is identical to the AT-HDVS-200-TX, with the addition of local powering capability and an external power supply. This makes it ideal for extending AV and control directly to a projector with an HDBaseT input. The HDVS-200-TX-PSK can serve as the central component of a compact, fully automated AV system with the convenience of automatic input selection, and by sending RS-232 or Ethernet control commands to the projector. With automatic display control capability, the HDVS-200-TX-PSK can power the projector on or off whenever a source is connected or disconnected from the unit.

All-in-One Switcher, Controller, and Extender

The HDVS-200-TX-PSK combines the benefits of auto-switching and integrated display control, and the advantages of HDBaseT signal transmission. It enables input selection, volume, and display on/off control from the front panel or external RS-232 or TCP/IP commands. The HDVS-200-TX-PSK incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces.

Surface mounting brackets are provided with the HDVS-200-TX-PSK for easy under-table, furniture, or on-wall installation.

Automatic Display Control

The HDVS-200-TX-PSK provides control to a projector through TCP/IP, RS-232, or CEC*, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the HDVS-200-TX-PSK can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-200-TX-PSK forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The HDVS-200-TX-PSK display control capability can also be triggered by an external control system.

A power button on the front panel can be used for manual on/off control of either the HDVS-200-TX-PSK or the display. Front panel volume controls are also available to control the display’s internal audio, or another device with volume control, such as a DSP or another switcher.

* Consumer Electronics Control (CEC): Atlona does not guarantee the function of CEC with all televisions. We can confirm proper operation with many current Samsung, Panasonic, Sony, and LG TVs. Many manufacturers do not support the CEC “off” command when sent from a source and older TVs use proprietary commands. Atlona only supports those TVs that follow CEC command structure from HDMI 1.2a and support the “off” command when issued by a source. We encourage any dealer to get evaluation product from Atlona prior to designing a system around this control technology or be prepared to use other methods to control their displays if Atlona CEC is not compatible with the installed displays.

Reliable Auto-Switching

The HDVS-200-TX-PSK automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt “high” state but may not be delivering active video.

Applications

  • Simple yet complete AV systems with HDBaseT-equipped projectors and flat-panel displays
  • Installations in which HDVS-200 Series transmitters are to be used with third-party HDBaseT devices

Configured and Managed by Velocity™ Device Manager

Velocity Device Manager is a powerful network software platform ideal for configuring, managing, and monitoring the HDVS-200-TX-PSK and other Atlona IP-controllable devices over a LAN, WAN, or VPN. Velocity Device Manager is available as part of Velocity control systems or as a free virtual machine software download, and greatly streamlines installation and maintenance of several Atlona products throughout a facility or enterprise, from a standard web browser.

AT-OME-ST31A

Also available from Atlona is the AT-OME-ST31A, for applications requiring 4K/UHD compatibility. The OME-ST31A offers three-input switching for HDMI and USB-C® sources, mirrored HDBaseT and HDMI outputs for driving two displays, selectable 4K downscaling to 1080p for the HDMI output, and audio de-embedding.

Atlona HDVS Series

The AT-HDVS-200-TX-PSK is part of the Atlona HDVS Series of HDBaseT extenders with AV switching and scaling, plus automatic display control and automatic input selection. See below for a complete listing of transmitters and receivers.

WordPress Tables Plugin

* To achieve optimal HDBaseT performance, CAT6a or CAT7 shielded twisted pair cable is highly recommended.
** Not a member of the HDVS Series, but includes many of the same convenient features without HDBaseT extension.

Product Compatibility

The AT-HDVS-200-TX-PSK is ideal for extending AV and control to a display with an HDBaseT input.

Features

3×1 HDBaseT switcher

  • Features two HDMI inputs plus a VGA input with audio
  • Allows advanced HDMI display devices to be used with legacy VGA sources
  • Audio input can be assigned to any of the video inputs
  • Audio-only playback available without video signal present

Local AC powered version of AT-HDVS-200-TX

  • Includes external power supply – ideal for point-to-point installations with an HDBaseT-equipped projector
  • Also can be powered via PoE (IEEE 802.3af Powered Device – PD) – provides an additional powering option through a compatible Atlona HDBaseT-equipped device, or the optional AT-PS-POE power injector

Automatic display control

  • Automatically changes projector power state based on active or standby mode of the switcher. Control signals to display are transmitted via IP, RS-232, or CEC.
  • Enables display and volume control. CEC enables control of consumer displays.
  • Eliminates the need for a complex AV control system

Automatic input selection using hot plug detect and video detection technology

  • Selects active input when sources are connected or if there is a change in source power status
  • Enables simplified, automatic system operation with no user intervention necessary

TCP/IP and RS-232 control of switcher

  • Flexible control options for compatibility with third-party control systems
  • Reduces integration time and costs

4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling

  • Compatible with sources up to 4K/60 4:2:0 and 4K/30 4:4:4
  • Allows 4K/UHD transmission when used with a compatible HDBaseT-equipped display or HDBaseT receiver, such as the AT-OME-RX11

HDCP 2.2 & 1.4 compliant

  • HDCP 1.4 compliant when used with the AT-HDVS-200-RX
  • HDCP 2.2 compliant when used with an HDCP 2.2 compliant receiver or switcher, such as the AT-OME-RX11 or HDBaseT-equipped projector
  • Allows protected content stream to pass between authenticated devices

Extended distance HDBaseT extension

  • Transmits AV, control, and Ethernet up to 330 feet (100 meters) @ 1080p with CAT5e/6 or 4K/UHD using CAT6a/7 cable
  • Uses easy-to-integrate category cable for low-cost, reliable system installation

EDID management

  • Manages EDID communications between source and switcher; allows integrators to force a source to a preferred resolution
  • Ensures desired audio formats and video resolutions are provided to the AV system

HDCP management

  • HDCP compliance can be disengaged through Velocity or other control system
  • Allows non-protected material from PCs to pass to non-compliant displays, streaming devices, and teleconference systems; protected content is not transmitted

Front panel input select button

  • Overrides auto-switching when more than one active source is present
  • Simple manual operation allows presenter to maintain control of AV system

Front panel display on/off control

  • Remotely controls display power state
  • Alternate mode available to mute video output and send display into standby
  • Eliminates need for manual operation of display or use of IR remote control

Front panel volume control

  • Remotely controls a display’s internal audio volume using TCP/IP or RS-232
  • Muting also available via Velocity or third-party control system
  • Eliminates need for manual operation of display or use of IR remote control

Integrated HDBaseT link status monitoring

  • Continuously monitors integrity of the HDBaseT cable link between the transmitter and the receiver
  • Web GUI provides real-time link status, plus detailed HDBaseT and HDMI signal information
  • Quick, easy verification or troubleshooting of RJ-45 termination or twisted pair cable quality

Configured and managed by Velocity Device Manager

  • This IP-controllable product is remotely managed by Velocity Device Manager
  • Integrates product configuration, management, and updates to reduce installation time and enable remote support

Field-updatable firmware

  • Rear panel USB port provides an easy means for device updates
  • Ensures long-term system return on investment

Front panel power and input selection status LEDs

  • LED indicators provide power and input selection status information
  • Provides easy setup and troubleshooting

Included accessories

  • User guide, surface mounting brackets, and external universal power supply

Product warranty

Specifications

Resolution
Video 4096×2160@24/25/30/50*/60Hz*, 3840×2160@24/25/30/50*/60Hz*, 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
VESA 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0*
Color Depth 8-bit, 10-bit, 12-bit
Audio
Analog IN PCM 2Ch
HDMI IN & HDBaseT OUT PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio
Sample Rate 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Bit Rate up to 24-bit
Distance
CAT5e/6 @ 4K up to 70 meters up to 230 feet
CAT5e/6 @ 1080p up to 100 meters up to 330 feet
CAT6a/7 @ 4K up to 100 meters up to 330 feet
HDMI IN/OUT @ 4K up to 5 meters up to 15 feet
HDMI IN/OUT @ 1080p up to 10 meters up to 30 feet
Signal
Bandwidth 10.2 Gbps
CEC Yes
HDCP 1.4
Temperature
Operating 0°C to 50°C 32°F to 122°F
Storage -20°C to 60°C -4°F to 140°F
Humidity 20 to 90% non-condensing
Power
Consumption 30 W (when paired)
Idle Consumption 22 W
Supply Input: 100 – 240 V AC, 50/60 Hz
Output: 48 V DC, 3.125 A
Dimensions (H x W x D) Inches Millimeters
Unit 1.5 x 5 x 4.02 38 x 127 x 102
Power Supply 1.42 x 1.81 x 4.41 36 x 46 x 112
Weight
Unit 0.29 kg 0.64 lbs
Certification
Unit CE, FCC

*4096×2160@50/60Hz & 3840×2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only

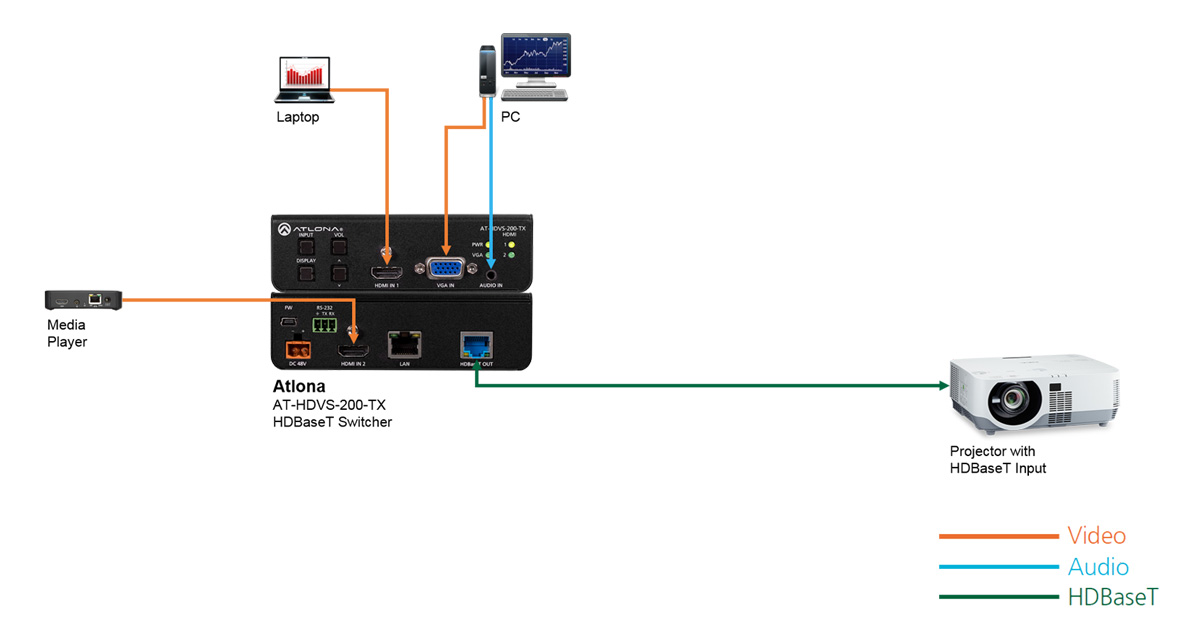

Diagrams


Resources

Documentation

pdf-icon Datasheet
pdf-icon Installation Guide
pdf-icon Guía de instalación
pdf-icon Manual
pdf-icon API

Declaration of Conformity

pdf-icon AT-HDVS-200-TX-PSK
pdf-icon EC AT-HDVS-200-TX-PSK
pdf-icon UK AT-HDVS-200-TX-PSK

CAD File

cad-icon-(1) AT-HDVS-200-TX-PSK

Support

pdf-icon Product Engineering Document

Related Products

WordPress Tables Plugin

Similar Products

WordPress Tables Plugin

AT-HDVS-200-TX Firmware

Firmware AT-HDVS-200-TX Firmware Version 2.1.08
File Size 819 KB
Date 06.11.20

Note: Atlona strongly recommends firmware updates using the Atlona Management System (AMS) or the unit’s web GUI. Firmware can also be updated via USB from a PC with Windows 7, or a Mac running Windows 7 in Bootcamp.

AMS allows management and automation of firmware updates for multiple Atlona IP-controllable products in an AV installation. With AMS, you can push new firmware to several devices at once, and also schedule updates at a convenient date and time.

Release Notes

Version 2.1.08

Features

  • Hostname added to network settings and system network info page.
  • System status API call [System sta] hostname added.
  • Integrated AT-UHD-CLSO-612ED:
    • Hardware buttons.
    • Display control.

Bug Fixes

  • Fixed an issue where fallback was not selectable for video switching.
  • Fixed an issue where display commands would not be passed, when used in conjunction with the AT-UHD-100CE-RX-PSE.

  • Fixed a communication issue that was present when used in conjunction with the AT-UHD-CLSO-824 running the latest firmware.
  • Fixed an issue where commands were being sent twice when physical Volume buttons were set to RS232.
  • Resolved an auto switching issue with Apple TV tvOS 13.4 and above.
  • Resolved an issue where the \x was sent over control interfaces in some cases.
  • Fixed an issue where the Mreset command was required due to display commands being reverted after a hard reboot.

Known Issues

  • Changing the color option in the OSD does not function.
Previous Releases
Version 2.0.64

Features

  • Added hostname support, allowing modification of the hostname in the WebUI.
  • Added hostname response to the “System sta” command.
  • Added the “Reset” command to the API. This command is used to soft-boot the unit.
  • Added an “Instant Fallback” setting so that when the source is lost, it will instantly fallback to the previous source.
  • Added the ability to pass display control commands through the UHD-CLSO-824. NOTE: Requires firmware 2.0.22 or higher.
  • Added help tips to the Display Control page in the WebUI.
  • Added Velocity Database to the Display Control tab in the WebUI. NOTE: Display Control is disabled when connected to the AT-OME-RX21/AT-UHD-CLSO612ED/AT-UHD-SW-5000ED.
  • Added SHostName and RHostName commands to API.

Bug Fixes

  • Fixed an issue where the Mreset command would not completely reset the unit to factory default.
  • Fixed an issue where the delimiter was being passed as part of the hex command string.
Version 2.0.42

Features

  • Added EDID support for 1440×900.
  • Added compatibility with the AT-CLSO-840.
  • Added InputStatus and InputBroadcast commands.
  • Added Display on/off events when Broadcast is enabled.

Bug Fixes

  • Fixed an issue where the unit would lock up when connected to the AT-UHD-CLSO-840.
  • Resolved issue where active Telnet sessions would be closed when the volume keys, on the front panel, were pressed for an extended period of time.
  • Units no longer revert to DHCP mode when using a static IP address.
  • The DispRS feedback message is no longer displayed in “AV SW” mode, when the Display button on the front panel is pressed.
  • Resolved an issue where the AT-HDVS-200-TX would not turn on if an active source was connected after the Lamp Cool Down timer expired.
  • Broadcast data is now properly presented when changing between standby / system power on/off states.
  • Added descriptions in help for the following API commands:
    • hdbtperf x y z t, Set monitoring the performance status. x = start/stop/sta, y = out, z = 1, t = 100 – 10000 (ms).
    • get_hdbt_stat, get_hdbt_stat x y z, Get the link quality of HDBaseT. x = out, y = 1, z = all/allhex/mse/maxerr/hpd/5vsta/devtype/tmdsclk/ber/cablelen.
    • hdbt_clear_stat, Initialize the link quality setting of HDBaseT.
Version 2.0.02

Bug Fixes

  • Commands issued using RS-232, when the AT-HDVS-200-TX is set to static IP mode, no longer cause communications to be lost.
Version 2.0.00

Features

  • HDBaseT cable testing feature has been added to the webGUI.
  • The DISPLAY button, on the HDVS-200-TX, is now illuminated when the unit is powered on.
  • A Reset all Picture button has been added to the webGUI.
  • Added mDNS functionality.

Bug Fixes

  • Improved integrity of video output over long durations (< 24 hours).
  • Resolved issue where auto-switching could become active when the system is powered off.
  • Resolved issue where auto-power on, for a display or projector, would not work under certain conditions.
  • Fixed issue where adding too many hex characters in the webGUI, under the Display page of the HDVS-200-TX, could lock up of the unit.
  • HDVS-200-TX no longer loses its IP address.
  • Modification of the root account, by the root user, no longer causes login problems.
  • Fixed an issue where the unit would not send the hex character $08.
  • Improved the reliability of the TrigRS232 and TrigCEC command.
  • DHCP lease time now functions correctly.
Version 1.1.09

Features

  • Added RS-232/IP command “DispBtn X” (X= on, off, tog, sta) to mimic the front panel button.

Bug Fixes

  • Improved compatibility with Sony projectors.
  • Now correctly passes RS-232 commands when connected to an AT-UHD-EX-100CE-RX.
  • Version command now shows correctly via RS-232/IP.
  • Improved compatibility with HDBaseT devices.

Known Issues

  • Auto switch may not work correctly with some CableMatters mini DisplayPort to HDMI cables.
Version 1.0.45

Features

  • Added the ability to switch between static and DHCP IP addresses.
  • Added the ability to disable volume level display – volume level will no longer appear on screen.
  • Improved AV source input detection.

Bug Fixes

  • Front panel buttons now send feedback over RS-232 and IP.
  • Improved auto switch functionality.
  • Set button and display mode to mirror settings – Display button will always follow what the display mode is set to.
  • Unit now tracks all source connection sequences, which ensures if no signal is received from the current source, it will fall back to the next source in the sequence that is sending signal.
  • Toggling mute in the webGUI no longer enables audio when the unit is in standby.
  • TrigRS CLI command no longer requires a disconnect/reconnect.
  • Front panel source LEDs now correctly show the selected input.
  • Audio control options within the webGUI are no longer incorrectly disabled.
  • RS-232 commands now pass correctly to HDBaseT projectors.
  • 200-TX now detects VGA connections correctly when connected directly to an HDBaseT projector.
  • CEC now functions correctly.
  • 200-TX no longer locks up when front panel buttons are used while the unit is powering on.
  • Rebooting the 200-TX no longer resets the baud parameter incorrectly.
  • Resolved audio issue where audio will pass even when the unit is off.
  • Auto switching on/off functionality on OSD is no longer disabled when in kitmode.
  • TrigRS CLI command now functions correctly.
  • Display off command is no longer sent twice when used.
  • Display IP commands will now add selected end character correctly.
Version 1.0.16

Features

  • Added display control through CEC, IP, RS-232, and webGUI.
  • Added HDVS sta command.

Bug Fixes

  • Resolved command issues with the HDVS-200-TX while working with an HDBaseT projector.
Version 1
  • Factory firmware

Sign up for updates

Notify Me!

Control Drivers

Atlona Velocity Atlona’s IP-based AV control and management
Date 06.25.18

3rd Party Control Systems

Crestron Crestron AT-HDVS-200-TX RS-232 and TCP/IP Control
File Size 374 KB
Date 04.11.17
Overview

NOTE: The AT-HDVS-200-RX receiver is discontinued. The recommended receiver is the AT-OME-RX11.

Three-Input HDBaseT Transmitter for VGA and HDMI Video

The Atlona AT-HDVS-200-TX-PSK is a 3×1 switcher and HDBaseT transmitter with two HDMI inputs and a VGA input with audio. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded audio, control, and Ethernet can be transmitted up to 330 feet (100 meters). The two-channel audio input can be assigned to any of the video inputs and embedded for HDBaseT transmission. The HDVS-200-TX-PSK is identical to the AT-HDVS-200-TX, with the addition of local powering capability and an external power supply. This makes it ideal for extending AV and control directly to a projector with an HDBaseT input. The HDVS-200-TX-PSK can serve as the central component of a compact, fully automated AV system with the convenience of automatic input selection, and by sending RS-232 or Ethernet control commands to the projector. With automatic display control capability, the HDVS-200-TX-PSK can power the projector on or off whenever a source is connected or disconnected from the unit.

All-in-One Switcher, Controller, and Extender

The HDVS-200-TX-PSK combines the benefits of auto-switching and integrated display control, and the advantages of HDBaseT signal transmission. It enables input selection, volume, and display on/off control from the front panel or external RS-232 or TCP/IP commands. The HDVS-200-TX-PSK incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces.

Surface mounting brackets are provided with the HDVS-200-TX-PSK for easy under-table, furniture, or on-wall installation.

Automatic Display Control

The HDVS-200-TX-PSK provides control to a projector through TCP/IP, RS-232, or CEC*, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the HDVS-200-TX-PSK can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-200-TX-PSK forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The HDVS-200-TX-PSK display control capability can also be triggered by an external control system.

A power button on the front panel can be used for manual on/off control of either the HDVS-200-TX-PSK or the display. Front panel volume controls are also available to control the display’s internal audio, or another device with volume control, such as a DSP or another switcher.

* Consumer Electronics Control (CEC): Atlona does not guarantee the function of CEC with all televisions. We can confirm proper operation with many current Samsung, Panasonic, Sony, and LG TVs. Many manufacturers do not support the CEC “off” command when sent from a source and older TVs use proprietary commands. Atlona only supports those TVs that follow CEC command structure from HDMI 1.2a and support the “off” command when issued by a source. We encourage any dealer to get evaluation product from Atlona prior to designing a system around this control technology or be prepared to use other methods to control their displays if Atlona CEC is not compatible with the installed displays.

Reliable Auto-Switching

The HDVS-200-TX-PSK automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt “high” state but may not be delivering active video.

Applications

  • Simple yet complete AV systems with HDBaseT-equipped projectors and flat-panel displays
  • Installations in which HDVS-200 Series transmitters are to be used with third-party HDBaseT devices

Configured and Managed by Velocity™ Device Manager

Velocity Device Manager is a powerful network software platform ideal for configuring, managing, and monitoring the HDVS-200-TX-PSK and other Atlona IP-controllable devices over a LAN, WAN, or VPN. Velocity Device Manager is available as part of Velocity control systems or as a free virtual machine software download, and greatly streamlines installation and maintenance of several Atlona products throughout a facility or enterprise, from a standard web browser.

AT-OME-ST31A

Also available from Atlona is the AT-OME-ST31A, for applications requiring 4K/UHD compatibility. The OME-ST31A offers three-input switching for HDMI and USB-C® sources, mirrored HDBaseT and HDMI outputs for driving two displays, selectable 4K downscaling to 1080p for the HDMI output, and audio de-embedding.

Atlona HDVS Series

The AT-HDVS-200-TX-PSK is part of the Atlona HDVS Series of HDBaseT extenders with AV switching and scaling, plus automatic display control and automatic input selection. See below for a complete listing of transmitters and receivers.

WordPress Tables Plugin

* To achieve optimal HDBaseT performance, CAT6a or CAT7 shielded twisted pair cable is highly recommended.
** Not a member of the HDVS Series, but includes many of the same convenient features without HDBaseT extension.

Product Compatibility

The AT-HDVS-200-TX-PSK is ideal for extending AV and control to a display with an HDBaseT input.

Features

3×1 HDBaseT switcher

  • Features two HDMI inputs plus a VGA input with audio
  • Allows advanced HDMI display devices to be used with legacy VGA sources
  • Audio input can be assigned to any of the video inputs
  • Audio-only playback available without video signal present

Local AC powered version of AT-HDVS-200-TX

  • Includes external power supply – ideal for point-to-point installations with an HDBaseT-equipped projector
  • Also can be powered via PoE (IEEE 802.3af Powered Device – PD) – provides an additional powering option through a compatible Atlona HDBaseT-equipped device, or the optional AT-PS-POE power injector

Automatic display control

  • Automatically changes projector power state based on active or standby mode of the switcher. Control signals to display are transmitted via IP, RS-232, or CEC.
  • Enables display and volume control. CEC enables control of consumer displays.
  • Eliminates the need for a complex AV control system

Automatic input selection using hot plug detect and video detection technology

  • Selects active input when sources are connected or if there is a change in source power status
  • Enables simplified, automatic system operation with no user intervention necessary

TCP/IP and RS-232 control of switcher

  • Flexible control options for compatibility with third-party control systems
  • Reduces integration time and costs

4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling

  • Compatible with sources up to 4K/60 4:2:0 and 4K/30 4:4:4
  • Allows 4K/UHD transmission when used with a compatible HDBaseT-equipped display or HDBaseT receiver, such as the AT-OME-RX11

HDCP 2.2 & 1.4 compliant

  • HDCP 1.4 compliant when used with the AT-HDVS-200-RX
  • HDCP 2.2 compliant when used with an HDCP 2.2 compliant receiver or switcher, such as the AT-OME-RX11 or HDBaseT-equipped projector
  • Allows protected content stream to pass between authenticated devices

Extended distance HDBaseT extension

  • Transmits AV, control, and Ethernet up to 330 feet (100 meters) @ 1080p with CAT5e/6 or 4K/UHD using CAT6a/7 cable
  • Uses easy-to-integrate category cable for low-cost, reliable system installation

EDID management

  • Manages EDID communications between source and switcher; allows integrators to force a source to a preferred resolution
  • Ensures desired audio formats and video resolutions are provided to the AV system

HDCP management

  • HDCP compliance can be disengaged through Velocity or other control system
  • Allows non-protected material from PCs to pass to non-compliant displays, streaming devices, and teleconference systems; protected content is not transmitted

Front panel input select button

  • Overrides auto-switching when more than one active source is present
  • Simple manual operation allows presenter to maintain control of AV system

Front panel display on/off control

  • Remotely controls display power state
  • Alternate mode available to mute video output and send display into standby
  • Eliminates need for manual operation of display or use of IR remote control

Front panel volume control

  • Remotely controls a display’s internal audio volume using TCP/IP or RS-232
  • Muting also available via Velocity or third-party control system
  • Eliminates need for manual operation of display or use of IR remote control

Integrated HDBaseT link status monitoring

  • Continuously monitors integrity of the HDBaseT cable link between the transmitter and the receiver
  • Web GUI provides real-time link status, plus detailed HDBaseT and HDMI signal information
  • Quick, easy verification or troubleshooting of RJ-45 termination or twisted pair cable quality

Configured and managed by Velocity Device Manager

  • This IP-controllable product is remotely managed by Velocity Device Manager
  • Integrates product configuration, management, and updates to reduce installation time and enable remote support

Field-updatable firmware

  • Rear panel USB port provides an easy means for device updates
  • Ensures long-term system return on investment

Front panel power and input selection status LEDs

  • LED indicators provide power and input selection status information
  • Provides easy setup and troubleshooting

Included accessories

  • User guide, surface mounting brackets, and external universal power supply

Product warranty

Specifications

Specifications

Resolution
Video 4096×2160@24/25/30/50*/60Hz*, 3840×2160@24/25/30/50*/60Hz*, 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
VESA 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0*
Color Depth 8-bit, 10-bit, 12-bit
Audio
Analog IN PCM 2Ch
HDMI IN & HDBaseT OUT PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio
Sample Rate 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Bit Rate up to 24-bit
Distance
CAT5e/6 @ 4K up to 70 meters up to 230 feet
CAT5e/6 @ 1080p up to 100 meters up to 330 feet
CAT6a/7 @ 4K up to 100 meters up to 330 feet
HDMI IN/OUT @ 4K up to 5 meters up to 15 feet
HDMI IN/OUT @ 1080p up to 10 meters up to 30 feet
Signal
Bandwidth 10.2 Gbps
CEC Yes
HDCP 1.4
Temperature
Operating 0°C to 50°C 32°F to 122°F
Storage -20°C to 60°C -4°F to 140°F
Humidity 20 to 90% non-condensing
Power
Consumption 30 W (when paired)
Idle Consumption 22 W
Supply Input: 100 – 240 V AC, 50/60 Hz
Output: 48 V DC, 3.125 A
Dimensions (H x W x D) Inches Millimeters
Unit 1.5 x 5 x 4.02 38 x 127 x 102
Power Supply 1.42 x 1.81 x 4.41 36 x 46 x 112
Weight
Unit 0.29 kg 0.64 lbs
Certification
Unit CE, FCC

*4096×2160@50/60Hz & 3840×2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only
