EU/UK Wallplate HDBaseT Transmitter with HDMI Input and USB Hub

EU/UK Wallplate HDBaseT Transmitter with HDMI Input and USB Hub

AT-OME-EX-TX-WP-E

  • Two-gang enclosure for EU and UK wallplate openings – interchangeable EU and UK trim kits
  • HDBaseTTM transmitter for HDMI® video, power, control, and USB
  • USB 2.0 interfacing and extension up to 330 feet (100 meters)
  • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
  • HDCP 2.2 compliant
  • Remote powering over HDBaseT
SKU: AT-OME-EX-TX-WP-E Categories: , , , , , , Tags: , , , , , , , , , , , , , ,

Wallplate HDBaseT Transmitter with HDMI Input and USB Hub

The Atlona AT-OME-EX-TX-WP-E is an HDBaseT transmitter for video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 330 feet (100 meters). It is designed for commercial installations in Europe, and includes interchangeable EU and UK faceplates and brackets. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-TX-WP-E is HDCP 2.2 compliant and transmits RS-232 control signals. With a matching HDBaseT receiver, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-TX-WP-E includes a USB 2.0 host interface for a PC, plus two peripheral devices such as a speakerphone, microphone, or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as switchers with HDBaseT inputs.

The OME-EX-TX-WP-E incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The OME-EX-TX-WP-E can be remotely powered by the OME-EX-RX, OME-SR21, OME-PS62, or other Omega Series receiver or switcher.

Applications

  • Complete system integration – The OME-EX-TX-WP-E and OME-SR21 together provide a compact, yet comprehensive and cost-effective integration solution, with 4K scaling, display control, HDBaseT link testing, and audio system interfacing provided by the receiver.
  • Lecture hall and training room applications – This transmitter is ideal for extending AV connectivity from an OME-PS62 in a central equipment rack to lecterns as well as remote wall and floor box locations, where presenters can easily access the system.
  • Video conferencing – The OME-EX-TX-WP-E and a compatible Omega Series receiver or switcher are ideal for soft codec and web-based conferencing applications, with the ability to integrate with PCs, cameras, speakerphones, and microphones.

Product compatibility

The OME-EX-TX-WP-E is not compatible with the Atlona HDVS-300 system for USB extension.

Technical Features

Two-gang enclosure for EU and UK wallplate openings –interchangeable EU and UK trim kits

  • Allows inconspicuous installation on a wall, in furniture, or in a floor box. Includes EU and UK faceplates and brackets.
  • Meets end user requirements for conveniently accessible yet discreet AV connectivity

Video, audio, power, and data over category cable utilizing HDBaseT technology

  • Transmits 4K/UHD video up to 330 feet (100 meters) with CAT6/6a/7 cable, or up to 295 feet (90 meters) using CAT5e cable
  • Uses easy-to-integrate category cable for low-cost, reliable system installation

USB 2.0 interfacing and extension* up to 330 feet (100 meters)

  • USB type B interface for connection to a host PC, plus two USB type A ports for peripheral devices such as a microphone, speakerphone, or a keyboard and mouse
  • Supports USB 2.0 devices, USB 3.0 devices compatible with USB 2.0, and legacy USB 1.x peripherals
  • Provides an ideal USB integration solution for software video conferencing and other applications
  • * A maximum 120 Mbps data rate is supported, due to specific USB bandwidth limitations over HDBaseT.

4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling

  • Compatible with sources up to 4K/60 4:2:0 and 4K/30 4:4:4
  • Supports HDMI data rates up to 10 Gbps from PCs, media players, and Ultra HD Blu-ray players

HDCP 2.2 compliant

  • Adheres to latest specification for High-bandwidth Digital Content Protection*
  • Allows protected content stream to pass between authenticated devices
  • * HDBaseT receiver or switcher must also be HDCP 2.2 compliant.

Remote powering over HDBaseT

  • Industry standard IEEE 802.3af PoE is supplied by an Atlona receiver or switcher over HDBaseT
  • Allows convenient wall, floor box, or furniture installation without the need for local AC power

Multi-channel audio compliant

  • Passes through multi-channel audio formats
  • Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®

Field-updatable firmware

  • Device can be updated in the field via the USB port

Front panel power and signal status LEDs

  • LED indicators provide power and HDBaseT link status information
  • Provides convenient setup and troubleshooting

Included accessories

  • Installation guide and interchangeable EU and UK trim kits

Product Warranty

Specifications

Video
HDMI Specification HDMI 2.0, HDCP 2.2
TMDS Clock 300 MHz
UHD/HD 4096×2160(DCI)@60(1)/30/24 Hz, 3840×2160(UHD)@60(1)/50(1)/24/25/30 Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60 Hz, 1080i@25/29.97/30 Hz, 720p@30/50/59.94/60 Hz
VESA 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480
VESA 21:9 2560×1080 @ 30 Hz 4:4:4
2560×1080 @ 60 Hz 4:4:4
3440×1440 @ 30 Hz 4:4:4
3440×1440 @ 50 Hz 4:4:4
3840×1600 @ 30 Hz 4:4:4
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color Depth 8-bit, 10-bit, 12-bit
Audio
Pass-through PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos®, DTS®, DTS-HD Master Audio™, DTS:X
Sample Rate 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit Depth Up to 24-bit
USB
Signal 2.0
Maximum Data Rate 120 Mbps
Internal Hubs 1 USB hub
Control
CEC Pass-through
RS-232 Pass-through from control system to sink device; supports baud rates from 2400 to 115200
Connectors
HDMI IN 1 – Type A, 19-pin female
HDBaseT OUT 1 – RJ45
HOST 1 – USB Type-B
DEVICE 2 – USB Type-A
RS-232 1 – captive screw, 3-pin
Indicators and Controls
PWR LED indicator 1 – LED, green
LINK LED indicator 1 – LED, yellow
Resolution / Distance 4K/UHD – Feet / Meters 1080p – Feet / Meters
HDMI IN/OUT 15 5 30 10
CAT5e 295 90 330 100
CAT6/6a/7 330 100 330 100
Power
Consumption 11.68 W (includes 5 W for USB)
USB Power 2.5 W per USB device interface
BTU/h 39.8
Environmental
Operating Temperature 32° to 104° F
0° – 40° C
Storage Temperature -4° to +140° F
-20° to +60° C
Operating Humidity (RH) +20 to +90%, non-condensing
Chassis
Dimensions (H x W x D) EU version:
5.98 in x 3.19 in x 1.77 in
152 mm x 81 mm x 45 mm		 UK version:
5.79 in x 3.44 in x 1.77 in
147 mm x 87.5 mm x 45 mm
Weight 0.44 lb, 200 g
Safety CE, RoHS, FCC

(1) HDMI input supports up to 4K/UHD @ 60 Hz YUV 4:4:4 8-bit. HDBaseT output supports 4K/UHD @ 60 Hz YUV 4:2:0 only. An input of 4K/UHD @ 60 Hz YUV 4:4:4 will be converted to output 4K/UHD @ 60 Hz YUV 4:2:0.

Diagrams

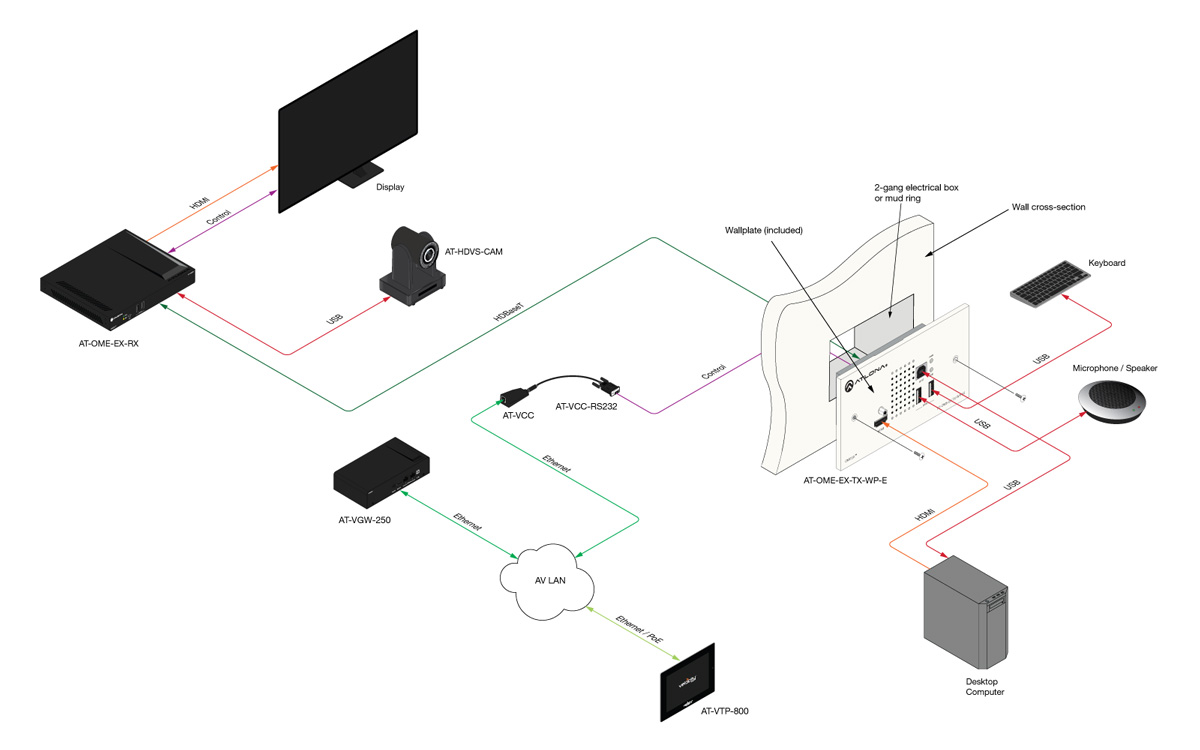

AV + USB extension for video conferencing

With a compatible Omega receiver, USB extension makes the OME-EX-TX-WP-E ideal for soft codec and web-based conferencing applications, with the ability to integrate with PCs and USB peripherals such as a microphone and camera.

Resources

Documentation

pdf-icon Datasheet
pdf-icon Installation Guide and Manual

Declaration of Conformity

pdf-icon AT-OME-EX-TX-WP-E
pdf-icon CE AT-OME-EX-TX-WP-E
pdf-icon UK AT-OME-EX-TX-WP-E

CAD File

cad-icon-(1) AT-OME-EX-TX-WP-E

Support

pdf-icon Omega USB Peripheral Compatibility List

Related Products

WordPress Tables Plugin

Similar Products

WordPress Tables Plugin

AT-OME-EX-TX-WP-E Firmware

Firmware AT-OME-EX-TX-WP-E Firmware Version 1.2.4
File Size 1.08 MB
Date 06.24.24

Release Notes

Version 1.2.4

Features

  • Added support for AT-OME-MS42-HDBT firmware 1.0.0.

Bug Fixes

  • Updated to Valens Firmware 7.5.21.
  • Resolved compatibility issue with products such as ClearOne Versa Mediabar™ Video Soundbar. Poly Studio P15 and R30, Yealink, etc.
  • General USB improvements.
Previous Releases
Version 1.2.2

Bug Fixes

  • Update to Valens Firmware 7.5.4.
  • Resolved an issue where cascading of HDBaseT extenders would cause degradation in both USB audio and video quality.
Version 1.2.1

Features

  • Support for hardware revision B. Adds control for powering on/off of the USB hub. When no PC is connected, the USB hub turns off. When a PC is connected, the USB hub turns on.
Version 1.1.03

Features

  • Improved USB performance.
  • The USB HUB 5V signal is no longer held high, when no USB HOST is present. NOTE: This fix only applies to hardware revision B or later.
Version 1.1.0

Features

  • Improved support for USB cameras, specifically Lumens.
  • Resolved an issue where RS-232 would only function at a baud rate of 115200.
Version 1
  • Factory firmware

Sign up for updates

Notify Me!
Overview

Wallplate HDBaseT Transmitter with HDMI Input and USB Hub

The Atlona AT-OME-EX-TX-WP-E is an HDBaseT transmitter for video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 330 feet (100 meters). It is designed for commercial installations in Europe, and includes interchangeable EU and UK faceplates and brackets. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-TX-WP-E is HDCP 2.2 compliant and transmits RS-232 control signals. With a matching HDBaseT receiver, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-TX-WP-E includes a USB 2.0 host interface for a PC, plus two peripheral devices such as a speakerphone, microphone, or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as switchers with HDBaseT inputs.

The OME-EX-TX-WP-E incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The OME-EX-TX-WP-E can be remotely powered by the OME-EX-RX, OME-SR21, OME-PS62, or other Omega Series receiver or switcher.

Applications

  • Complete system integration – The OME-EX-TX-WP-E and OME-SR21 together provide a compact, yet comprehensive and cost-effective integration solution, with 4K scaling, display control, HDBaseT link testing, and audio system interfacing provided by the receiver.
  • Lecture hall and training room applications – This transmitter is ideal for extending AV connectivity from an OME-PS62 in a central equipment rack to lecterns as well as remote wall and floor box locations, where presenters can easily access the system.
  • Video conferencing – The OME-EX-TX-WP-E and a compatible Omega Series receiver or switcher are ideal for soft codec and web-based conferencing applications, with the ability to integrate with PCs, cameras, speakerphones, and microphones.

Product compatibility

The OME-EX-TX-WP-E is not compatible with the Atlona HDVS-300 system for USB extension.

Technical Features

Two-gang enclosure for EU and UK wallplate openings –interchangeable EU and UK trim kits

  • Allows inconspicuous installation on a wall, in furniture, or in a floor box. Includes EU and UK faceplates and brackets.
  • Meets end user requirements for conveniently accessible yet discreet AV connectivity

Video, audio, power, and data over category cable utilizing HDBaseT technology

  • Transmits 4K/UHD video up to 330 feet (100 meters) with CAT6/6a/7 cable, or up to 295 feet (90 meters) using CAT5e cable
  • Uses easy-to-integrate category cable for low-cost, reliable system installation

USB 2.0 interfacing and extension* up to 330 feet (100 meters)

  • USB type B interface for connection to a host PC, plus two USB type A ports for peripheral devices such as a microphone, speakerphone, or a keyboard and mouse
  • Supports USB 2.0 devices, USB 3.0 devices compatible with USB 2.0, and legacy USB 1.x peripherals
  • Provides an ideal USB integration solution for software video conferencing and other applications
  • * A maximum 120 Mbps data rate is supported, due to specific USB bandwidth limitations over HDBaseT.

4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling

  • Compatible with sources up to 4K/60 4:2:0 and 4K/30 4:4:4
  • Supports HDMI data rates up to 10 Gbps from PCs, media players, and Ultra HD Blu-ray players

HDCP 2.2 compliant

  • Adheres to latest specification for High-bandwidth Digital Content Protection*
  • Allows protected content stream to pass between authenticated devices
  • * HDBaseT receiver or switcher must also be HDCP 2.2 compliant.

Remote powering over HDBaseT

  • Industry standard IEEE 802.3af PoE is supplied by an Atlona receiver or switcher over HDBaseT
  • Allows convenient wall, floor box, or furniture installation without the need for local AC power

Multi-channel audio compliant

  • Passes through multi-channel audio formats
  • Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®

Field-updatable firmware

  • Device can be updated in the field via the USB port

Front panel power and signal status LEDs

  • LED indicators provide power and HDBaseT link status information
  • Provides convenient setup and troubleshooting

Included accessories

  • Installation guide and interchangeable EU and UK trim kits

Product Warranty

Specifications

Specifications

Video
HDMI Specification HDMI 2.0, HDCP 2.2
TMDS Clock 300 MHz
UHD/HD 4096×2160(DCI)@60(1)/30/24 Hz, 3840×2160(UHD)@60(1)/50(1)/24/25/30 Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60 Hz, 1080i@25/29.97/30 Hz, 720p@30/50/59.94/60 Hz
VESA 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480
VESA 21:9 2560×1080 @ 30 Hz 4:4:4
2560×1080 @ 60 Hz 4:4:4
3440×1440 @ 30 Hz 4:4:4
3440×1440 @ 50 Hz 4:4:4
3840×1600 @ 30 Hz 4:4:4
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color Depth 8-bit, 10-bit, 12-bit
Audio
Pass-through PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos®, DTS®, DTS-HD Master Audio™, DTS:X
Sample Rate 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit Depth Up to 24-bit
USB
Signal 2.0
Maximum Data Rate 120 Mbps
Internal Hubs 1 USB hub
Control
CEC Pass-through
RS-232 Pass-through from control system to sink device; supports baud rates from 2400 to 115200
Connectors
HDMI IN 1 – Type A, 19-pin female
HDBaseT OUT 1 – RJ45
HOST 1 – USB Type-B
DEVICE 2 – USB Type-A
RS-232 1 – captive screw, 3-pin
Indicators and Controls
PWR LED indicator 1 – LED, green
LINK LED indicator 1 – LED, yellow
Resolution / Distance 4K/UHD – Feet / Meters 1080p – Feet / Meters
HDMI IN/OUT 15 5 30 10
CAT5e 295 90 330 100
CAT6/6a/7 330 100 330 100
Power
Consumption 11.68 W (includes 5 W for USB)
USB Power 2.5 W per USB device interface
BTU/h 39.8
Environmental
Operating Temperature 32° to 104° F
0° – 40° C
Storage Temperature -4° to +140° F
-20° to +60° C
Operating Humidity (RH) +20 to +90%, non-condensing
Chassis
Dimensions (H x W x D) EU version:
5.98 in x 3.19 in x 1.77 in
152 mm x 81 mm x 45 mm		 UK version:
5.79 in x 3.44 in x 1.77 in
147 mm x 87.5 mm x 45 mm
Weight 0.44 lb, 200 g
Safety CE, RoHS, FCC

(1) HDMI input supports up to 4K/UHD @ 60 Hz YUV 4:4:4 8-bit. HDBaseT output supports 4K/UHD @ 60 Hz YUV 4:2:0 only. An input of 4K/UHD @ 60 Hz YUV 4:4:4 will be converted to output 4K/UHD @ 60 Hz YUV 4:2:0.

Diagrams

Diagrams

AV + USB extension for video conferencing

With a compatible Omega receiver, USB extension makes the OME-EX-TX-WP-E ideal for soft codec and web-based conferencing applications, with the ability to integrate with PCs and USB peripherals such as a microphone and camera.

Resources

Resources

Documentation

pdf-icon Datasheet
pdf-icon Installation Guide and Manual

Declaration of Conformity

pdf-icon AT-OME-EX-TX-WP-E
pdf-icon CE AT-OME-EX-TX-WP-E
pdf-icon UK AT-OME-EX-TX-WP-E

CAD File

cad-icon-(1) AT-OME-EX-TX-WP-E

Support

pdf-icon Omega USB Peripheral Compatibility List
Related Products

Related Products

WordPress Tables Plugin

Similar Products

WordPress Tables Plugin
Firmware

AT-OME-EX-TX-WP-E Firmware

Firmware AT-OME-EX-TX-WP-E Firmware Version 1.2.4
File Size 1.08 MB
Date 06.24.24

Release Notes

Version 1.2.4

Features

  • Added support for AT-OME-MS42-HDBT firmware 1.0.0.

Bug Fixes

  • Updated to Valens Firmware 7.5.21.
  • Resolved compatibility issue with products such as ClearOne Versa Mediabar™ Video Soundbar. Poly Studio P15 and R30, Yealink, etc.
  • General USB improvements.
Previous Releases
Version 1.2.2

Bug Fixes

  • Update to Valens Firmware 7.5.4.
  • Resolved an issue where cascading of HDBaseT extenders would cause degradation in both USB audio and video quality.
Version 1.2.1

Features

  • Support for hardware revision B. Adds control for powering on/off of the USB hub. When no PC is connected, the USB hub turns off. When a PC is connected, the USB hub turns on.
Version 1.1.03

Features

  • Improved USB performance.
  • The USB HUB 5V signal is no longer held high, when no USB HOST is present. NOTE: This fix only applies to hardware revision B or later.
Version 1.1.0

Features

  • Improved support for USB cameras, specifically Lumens.
  • Resolved an issue where RS-232 would only function at a baud rate of 115200.
Version 1
  • Factory firmware
