Wallplate Transmitter for USB-C®
The Atlona AT-OME-EX-TX-WPC is an HDBaseT transmitter with USB-C input. It sends video up to 4K/30 4:4:4, plus embedded audio, control, and USB over distances up to 330 feet (100 meters). It features a US one-gang, wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-TX-WPC is HDCP 2.2 compliant and extends RS-232 control signals. The USB-C input is ideal for AV interfacing with newer Mac®, Chromebook™, and Windows® PCs, as well as smartphones and tablets. With a matching HDBaseT receiver, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-TX-WPC includes a PC host interface over USB-C, plus a USB 2.0 interface for a peripheral device such as a speakerphone, microphone, or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as switchers with HDBaseT inputs.
The OME-EX-TX-WPC incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The OME-EX-TX-WPC can be remotely powered by the OME-EX-RX, OME-SR21, OME-PS62, or other Omega Series receiver or switcher.
Applications

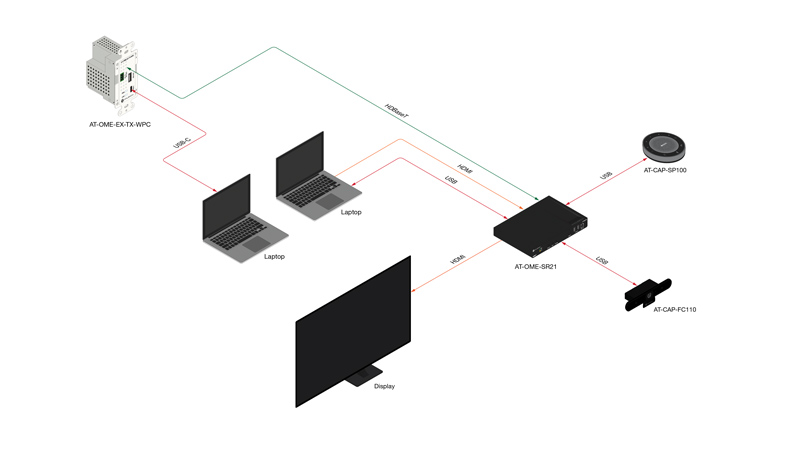

- Complete system integration – The OME-EX-TX-WPC and OME-SR21 together provide a compact, yet comprehensive and cost-effective integration solution, with 4K scaling, display control, HDBaseT link testing, and audio system interfacing provided by the receiver.
- Lecture hall and training room applications – This transmitter is ideal for extending AV connectivity from an OME-PS62 in a central equipment rack to lecterns as well as remote wall and floor box locations, where presenters can easily access the system.
- Video conferencing – The OME-EX-TX-WPC and a compatible Omega Series receiver or switcher are ideal for soft codec and web-based conferencing applications, with the ability to integrate with PCs, cameras, speakerphones, and microphones.
Product compatibility
The OME-EX-TX-WPC is not compatible with the Atlona HDVS-300 system for USB extension.
Technical Features
US one-gang enclosure for wallplate openings – interchangeable black or white trim kits
- Allows inconspicuous installation on a wall, in furniture, or in a floor box. Includes black and white wallplates and faceplates.
- Meets end user requirements for conveniently accessible yet discreet AV connectivity
USB-C input for AV and data*
- Immediate compatibility with laptops and tablets with USB-C ports supporting AV
- No need to provide USB-C to HDMI adapters
- * USB-C port does not support device powering.
Video, audio, power, and data over category cable utilizing HDBaseT technology
- Transmits 4K/UHD video up to 330 feet (100 meters) with CAT6/6a/7 cable, or up to 295 feet (90 meters) using CAT5e cable
- Uses easy-to-integrate category cable for low-cost, reliable system installation
USB 2.0 interfacing and extension* up to 330 feet (100 meters)
- USB-C interface for connection to a host PC, plus a USB type A port for a peripheral device such as a microphone, speakerphone, or a keyboard and mouse
- Supports USB 2.0 devices, USB 3.0 devices compatible with USB 2.0, and legacy USB 1.x peripherals
- Provides an ideal USB integration solution for software video conferencing and other applications
- * A maximum 120 Mbps data rate is supported, due to specific USB bandwidth limitations over HDBaseT.
4K/UHD capability @ 30 Hz with 4:4:4 chroma subsampling
- Transmits high resolution video up to and including 4K/UHD @ 30 Hz 4:4:4 8-bit
- Supports HDMI data rates up to 10 Gbps from PCs, media players, and Ultra HD Blu-ray players
HDCP 2.2 compliant
- Adheres to latest specification for High-bandwidth Digital Content Protection*
- Allows protected content stream to pass between authenticated devices
- * HDBaseT receiver or switcher must also be HDCP 2.2 compliant.
Remote powering over HDBaseT
- Industry standard IEEE 802.3af PoE is supplied by an Atlona receiver or switcher over HDBaseT
- Allows convenient wall, floor box, or furniture installation without the need for local AC power
Multi-channel audio compliant
- Passes through multi-channel audio formats
- Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®
Field-updatable firmware
- Device can be updated in the field via the USB port
Front panel power and signal status LEDs
- LED indicators provide power and HDBaseT link status information
- Provides convenient setup and troubleshooting
Included accessories
- Installation guide, interchangeable black and white wallplates and faceplates, and 2 meter (6.5 foot) USB-C male-to-male cable (USB 3.2 Gen 1)
Product Warranty
- To view the product warranty, use the following link: https://atlona.com/warranty/
