AT-USB-EX350-WPD-KIT

  • USB extension up to 330 feet (100 meters)
  • Supports USB 3.2 Gen 1 data rates up to 5 Gbps
  • Supports USB 2.0 data rates up to 480 Mbps
  • USB-C interface for host connection
  • Three USB-A and one USB-C for peripheral connections on the device wall plate
  • LAN port for configuration, monitoring, and control over the network
SKU: AT-USB-EX350-WPD-KIT Categories: , , , , Tags: , , , , , ,

NOW SHIPPING ***


USB 3.2 Gen 1 Extender Extend high data rate USB

Extend high data rate USB

The Atlona AT-USB-EX350-WPD-KIT supports extension of 5 Gbps USB 3.2 Gen 1 data up to 330 feet (100 meters). It allows high data rate USB components including laptops, computers, cameras, microphones, and speakers are to be located in different areas of the room.

Enhanced integration capabilities

Network connection provides access to advanced features including individual VBUS configuration, power consumption and connection monitoring, firmware updates, and RS-232 control.

Additional Features

The Atlona AT-USB-EX350-WPD-KIT is a data only USB extender kit that supports transmission of 5 Gbps USB 3.2 Gen 1 data up to 330 feet (100 meters) using a single, cost-effective Category 6A U/FTP cable.

USB

Simultaneous support for USB 3.2 Gen 1 data rates up to 5 Gbps, and USB 2.0 data rates up to 480 Mbps.

Extension

Transmits 5 Gbps USB 3.2 Gen 1 data up to 330 feet (100 meters) over Category 6A U/FTP cable.

Integration Features

Network interface for VBUS configuration, power / connection monitoring, firmware updates, and RS-232 control.

Videos

Introducing the AT-USB-EX350-WP-KITS

This video offers a detailed introduction to the AT-USB-EX350-WP-KITS, a data only USB 3.2 extender kit supporting simultaneous extension of 5 Gbps USB 3.2 Gen 1 data and 480 Mbps USB 2.0 data, up to 330 feet (100 meters) over Category 6A U/FTP cable.

AT-USB-EX350-Kit Setup & Configuration

This video offers detailed instructions for the setup and configuration for the AT-USB-EX350-KIT.

Details

The Atlona AT-USB-EX350-WPD-KIT is a data only USB 3.2 extender kit. It supports simultaneous extension of 5 Gbps USB 3.2 Gen 1 data and 480 Mbps USB 2.0 data up to 330 feet (100 meters) using a single, cost-effective Category 6A U/FTP cable.

The USB-EX350-WPD-KIT is ideal for video conferencing or remote instruction applications where high data rate USB components including laptops, computers, cameras, microphones, and speakers are in different areas of the room.

The USB-EX350-WPD-KIT is comprised of two endpoints. The host endpoint includes a USB-C port for connection to hosts such as laptops, computers, or other AV equipment that supports USB connectivity including many Omega™ Series products. The device endpoint is a two-gang wall plate that includes three USB Type A ports and one USB-C port for connection to 4K cameras, conferencing bars, microphones, speakers, and other peripherals. Bidirectional remote power allows the kit to be powered by the included power supply connected to either the host or device endpoint.

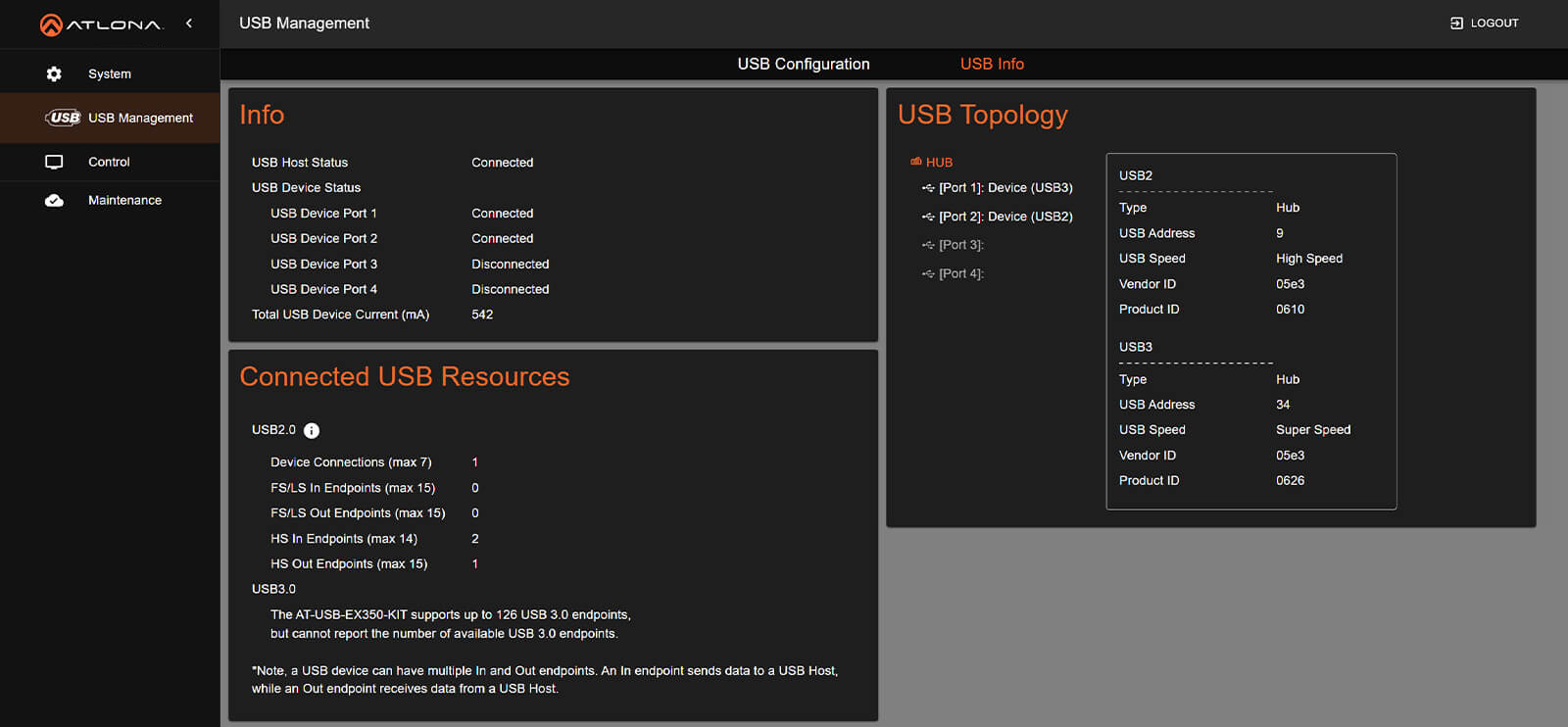

A LAN connection on the host endpoint provides access to advanced integration capabilities including:

  • Monitor system and port status for validation and troubleshooting
  • Configure VBUS modes
  • Update firmware
  • IP to RS-232 translation supporting bi-directional serial control through the device endpoint

The USB-EX350-WPD-KIT is a great solution for extending USB 3.2 Gen 1 data up to 5 Gbps between components at distances greater than is possible with traditional cabling.

Applications

  • Education – Provides clean wall plate device connection for classroom applications where higher data rate USB peripherals such as 4K cameras are located at distances of up to 330 feet (100 meters) from the room computer or teacher laptop.
  • Commercial – Access higher data rate USB peripherals at distances of up to 330 feet (100 meters) from a room computer or BYOD laptop host connected to a wall plate matching the aesthetics of modern meeting room environments.

Features

  • Point-to-point USB extender kit for devices such as cameras, speakers, microphones and other peripherals
  • Extends USB data up to 330 feet (100 meters) using a single Category 6A U/FTP cable
  • Supports USB 3.2 Gen 1 data rates up to 5 Gbps
  • Supports USB 2.0 data rates up to 480 Mbps
  • One USB-C interface for host connection
  • Three USB-A and one USB-C for peripheral connections on the device wall plate
  • Each peripheral port provides up to 1.5 amps (3.2 amps total) allowing even energy-hungry components to be powered by the device endpoint
  • Kit is powered from the host endpoint, allowing a single cable connection for data and power to the device wall plate
  • LAN port for configuration, monitoring, and control over the network
  • Configurable VBUS mode for each USB port on the device endpoint
  • IP to RS-232 translation for bi-directional RS-232 communications through the device wall plate
  • US two-gang device wall plate – interchangeable white and black trim kits
  • Compact enclosures can be mounted in furniture, behind a display, or above a projector
  • Kit includes device wall plate, white and black trim kits, host endpoint, power supply, and mounting brackets
  • To view the product warranty, use the following link: https://atlona.com/warranty/

Specifications

USB Capabilities
Protocol Support USB 2.0, USB 3.2 Gen 1 (5 Gbps)
USB 2.0 Capabilities(1) Maximum hubs: 9
Maximum hub tiers: 5
Maximum devices: 7
Maximum endpoints: 14 (IN), 15 (OUT)
USB 3.2 Gen 1 Capabilities(1) Maximum hub tiers: 5
Maximum endpoints: 126
USB Transfer Types Control, Bulk, Interrupt, Isochronous
Internal Hubs USB 2.0: 1 Hub, 1 Tier
USB 3.2 Gen 1: 2 Hubs, 2 Tiers
USB Power Host: No Power
Device: max 1.5A per port, 3.2A total across all device ports
USB Device VBUS Control Per-port settings: Follow USB Host, Always High, Always Low
Bandwidth(2) USB 2.0: 480 Mbps
USB 3.2 Gen 1: 5 Gbps
Ethernet
Port 1 x RJ45 on Host Endpoint
Standards and Protocols HTTP, HTTPS, Telnet, SSH, JSON over WebSockets, TCP Proxy for RS-232, NTP
Speeds 10/100 Mbps
Addressing DHCP, Static – selectable through built-in web server and API commands
802.1x Support PEAP-MSCHAPv2, EAP-TLS
RS-232
Port 1 x 3-pin captive screw on Device Endpoint
Use External device control via TCP Proxy
Baud Rates 9600, 19200, 38400, 57600, 115200
Data Flow Bidirectional
Distance Feet Meters
CAT 6a U/FTP – straight run 330 100
CAT 6a U/FTP – through patch panel/coupler 295 90
CAT 6a UTP – either straight run or through patch panel/coupler 230 70
CAT 5e UTP – either straight run or through patch panel/coupler 164 50
Indicators
Host Endpoint
PWR
LAN
HDBT-USB3
1 x LED, green
1 x LED, green; 1 x LED, amber
1 x LED, green (LINK); 1 x LED, amber (FW)
Device Endpoint
PWR
LINK
HDBT-USB3
1 x LED, green
1 x LED, amber
1 x LED, green (LINK); 1 x LED, amber (FW)
Connectors (Host Endpoint)
USB HOST (5G) 1 x USB-C, locking
LAN 1 x RJ45
HDBT-USB3 1 x RJ45
48V / 1.36A 1 x 2-pin captive screw
Connectors (Device Endpoint)
USB DEVICES (5G) 3 x USB-A
USB DEVICES (5G) 1 x USB-C, locking
DEBUG 1 x USB-C
RS-232 1 x 3-pin captive screw
HDBT-USB3 1 x RJ45
48V / 1.36A 1 x 2-pin captive screw
Environmental Fahrenheit Celsius
Operating Temperature +32 to +104 0 to +40
Storage Temperature -4 to +158 -20 to +70
Operating Humidity (RH) 20% to 90%, non-condensing
Power Powered from Total System Power Host Endpoint Device Endpoint
Consumption (under full USB device load) Host Endpoint 33 W (max.) 25.4 BTU/h 21 BTU/h
Consumption (under full USB device load) Device Endpoint 29 W (max.) 11.1 BTU/h 25 BTU/h
External Power Supply Input: 100-240 V AC, 50/60 Hz Output: 48 V DC / 1.36 A
Dimensions (H × W × D) Inches Millimeters
Host Endpoint 0.91 x 5.31 x 3.94 23 x 135 x 100
Device Endpoint 4.17 x 3.54 x 1.81 106 x 90 x 46
Weight Pounds Kilograms
Host Endpoint 0.71 0.32
Device Endpoint 0.88 0.39
Certification
Extender Kit CE, FCC, UKCA, RCM
Power Supply CE, FCC, UKCA, RCM, UL
Compliance
NDAA-889 Yes
Warranty
Device To view the product warranty, use the following link: atlona.com/warranty

Footnotes

(1) A USB device can have multiple In and Out endpoints. An In endpoint sends data to a USB Host, while an Out endpoint receives data from a USB Host.

(2) Specified bandwidth is the total available bandwidth. Actual bandwidth available for payload data will be reduced by USB and transport overhead. Practical payload data rates will be approximately 320 Mbps for USB 2.0 and 3.8 Gbps for USB 3.0.

Diagrams

5 Gbps USB 3.2 Gen 1 Extension

The USB-EX350-WPD-KIT can be used to extend USB signals from a 4K camera to an Omega switcher and routed to either the connected laptop or room PC.

Resources

Documentation

pdf-icon Datasheet
pdf-icon Manual

Related Products

Product Description
AT-CAP-FC110 Captivate™ 4K ePTZ Auto-Framing Camera
AT-HDVS-CAM PTZ Camera with USB

Similar Products

Product Description
AT-OME-EX-KIT-LT HDBaseT extender kit for HDMI, power, control, and USB
AT-OME-EX-TX HDBaseT Transmitter with HDMI Input and USB Hub
AT-OME-EX-RX HDBaseT Receiver with USB Hub
AT-OME-EX-WP-KIT Wallplate HDBaseT extender kit for HDMI, power, control, and USB
AT-OMNI-311 USB to IP Adapter for Host Device
AT-OMNI-324 IP to USB Adapter for Peripheral Devices

Known Compatibility Issues
Products Notes
AT-CAP-SP100 – Captivate™ USB / Bluetooth Speakerphone USB ports on the USB-EX350-KIT device endpoint are NOT compatible with the CAP-SP100 speakerphone
Overview

USB 3.2 Gen 1 Extender Extend high data rate USB

Extend high data rate USB

The Atlona AT-USB-EX350-WPD-KIT supports extension of 5 Gbps USB 3.2 Gen 1 data up to 330 feet (100 meters). It allows high data rate USB components including laptops, computers, cameras, microphones, and speakers are to be located in different areas of the room.

Enhanced integration capabilities

Network connection provides access to advanced features including individual VBUS configuration, power consumption and connection monitoring, firmware updates, and RS-232 control.

Additional Features

The Atlona AT-USB-EX350-WPD-KIT is a data only USB extender kit that supports transmission of 5 Gbps USB 3.2 Gen 1 data up to 330 feet (100 meters) using a single, cost-effective Category 6A U/FTP cable.

USB

Simultaneous support for USB 3.2 Gen 1 data rates up to 5 Gbps, and USB 2.0 data rates up to 480 Mbps.

Extension

Transmits 5 Gbps USB 3.2 Gen 1 data up to 330 feet (100 meters) over Category 6A U/FTP cable.

Integration Features

Network interface for VBUS configuration, power / connection monitoring, firmware updates, and RS-232 control.

Videos

Videos

Introducing the AT-USB-EX350-WP-KITS

This video offers a detailed introduction to the AT-USB-EX350-WP-KITS, a data only USB 3.2 extender kit supporting simultaneous extension of 5 Gbps USB 3.2 Gen 1 data and 480 Mbps USB 2.0 data, up to 330 feet (100 meters) over Category 6A U/FTP cable.

AT-USB-EX350-Kit Setup & Configuration

This video offers detailed instructions for the setup and configuration for the AT-USB-EX350-KIT.

Details

Details

The Atlona AT-USB-EX350-WPD-KIT is a data only USB 3.2 extender kit. It supports simultaneous extension of 5 Gbps USB 3.2 Gen 1 data and 480 Mbps USB 2.0 data up to 330 feet (100 meters) using a single, cost-effective Category 6A U/FTP cable.

The USB-EX350-WPD-KIT is ideal for video conferencing or remote instruction applications where high data rate USB components including laptops, computers, cameras, microphones, and speakers are in different areas of the room.

The USB-EX350-WPD-KIT is comprised of two endpoints. The host endpoint includes a USB-C port for connection to hosts such as laptops, computers, or other AV equipment that supports USB connectivity including many Omega™ Series products. The device endpoint is a two-gang wall plate that includes three USB Type A ports and one USB-C port for connection to 4K cameras, conferencing bars, microphones, speakers, and other peripherals. Bidirectional remote power allows the kit to be powered by the included power supply connected to either the host or device endpoint.

A LAN connection on the host endpoint provides access to advanced integration capabilities including:

  • Monitor system and port status for validation and troubleshooting
  • Configure VBUS modes
  • Update firmware
  • IP to RS-232 translation supporting bi-directional serial control through the device endpoint

The USB-EX350-WPD-KIT is a great solution for extending USB 3.2 Gen 1 data up to 5 Gbps between components at distances greater than is possible with traditional cabling.

Applications

  • Education – Provides clean wall plate device connection for classroom applications where higher data rate USB peripherals such as 4K cameras are located at distances of up to 330 feet (100 meters) from the room computer or teacher laptop.
  • Commercial – Access higher data rate USB peripherals at distances of up to 330 feet (100 meters) from a room computer or BYOD laptop host connected to a wall plate matching the aesthetics of modern meeting room environments.

Features

  • Point-to-point USB extender kit for devices such as cameras, speakers, microphones and other peripherals
  • Extends USB data up to 330 feet (100 meters) using a single Category 6A U/FTP cable
  • Supports USB 3.2 Gen 1 data rates up to 5 Gbps
  • Supports USB 2.0 data rates up to 480 Mbps
  • One USB-C interface for host connection
  • Three USB-A and one USB-C for peripheral connections on the device wall plate
  • Each peripheral port provides up to 1.5 amps (3.2 amps total) allowing even energy-hungry components to be powered by the device endpoint
  • Kit is powered from the host endpoint, allowing a single cable connection for data and power to the device wall plate
  • LAN port for configuration, monitoring, and control over the network
  • Configurable VBUS mode for each USB port on the device endpoint
  • IP to RS-232 translation for bi-directional RS-232 communications through the device wall plate
  • US two-gang device wall plate – interchangeable white and black trim kits
  • Compact enclosures can be mounted in furniture, behind a display, or above a projector
  • Kit includes device wall plate, white and black trim kits, host endpoint, power supply, and mounting brackets
  • To view the product warranty, use the following link: https://atlona.com/warranty/
Specifications

Specifications

USB Capabilities
Protocol Support USB 2.0, USB 3.2 Gen 1 (5 Gbps)
USB 2.0 Capabilities(1) Maximum hubs: 9
Maximum hub tiers: 5
Maximum devices: 7
Maximum endpoints: 14 (IN), 15 (OUT)
USB 3.2 Gen 1 Capabilities(1) Maximum hub tiers: 5
Maximum endpoints: 126
USB Transfer Types Control, Bulk, Interrupt, Isochronous
Internal Hubs USB 2.0: 1 Hub, 1 Tier
USB 3.2 Gen 1: 2 Hubs, 2 Tiers
USB Power Host: No Power
Device: max 1.5A per port, 3.2A total across all device ports
USB Device VBUS Control Per-port settings: Follow USB Host, Always High, Always Low
Bandwidth(2) USB 2.0: 480 Mbps
USB 3.2 Gen 1: 5 Gbps
Ethernet
Port 1 x RJ45 on Host Endpoint
Standards and Protocols HTTP, HTTPS, Telnet, SSH, JSON over WebSockets, TCP Proxy for RS-232, NTP
Speeds 10/100 Mbps
Addressing DHCP, Static – selectable through built-in web server and API commands
802.1x Support PEAP-MSCHAPv2, EAP-TLS
RS-232
Port 1 x 3-pin captive screw on Device Endpoint
Use External device control via TCP Proxy
Baud Rates 9600, 19200, 38400, 57600, 115200
Data Flow Bidirectional
Distance Feet Meters
CAT 6a U/FTP – straight run 330 100
CAT 6a U/FTP – through patch panel/coupler 295 90
CAT 6a UTP – either straight run or through patch panel/coupler 230 70
CAT 5e UTP – either straight run or through patch panel/coupler 164 50
Indicators
Host Endpoint
PWR
LAN
HDBT-USB3
1 x LED, green
1 x LED, green; 1 x LED, amber
1 x LED, green (LINK); 1 x LED, amber (FW)
Device Endpoint
PWR
LINK
HDBT-USB3
1 x LED, green
1 x LED, amber
1 x LED, green (LINK); 1 x LED, amber (FW)
Connectors (Host Endpoint)
USB HOST (5G) 1 x USB-C, locking
LAN 1 x RJ45
HDBT-USB3 1 x RJ45
48V / 1.36A 1 x 2-pin captive screw
Connectors (Device Endpoint)
USB DEVICES (5G) 3 x USB-A
USB DEVICES (5G) 1 x USB-C, locking
DEBUG 1 x USB-C
RS-232 1 x 3-pin captive screw
HDBT-USB3 1 x RJ45
48V / 1.36A 1 x 2-pin captive screw
Environmental Fahrenheit Celsius
Operating Temperature +32 to +104 0 to +40
Storage Temperature -4 to +158 -20 to +70
Operating Humidity (RH) 20% to 90%, non-condensing
Power Powered from Total System Power Host Endpoint Device Endpoint
Consumption (under full USB device load) Host Endpoint 33 W (max.) 25.4 BTU/h 21 BTU/h
Consumption (under full USB device load) Device Endpoint 29 W (max.) 11.1 BTU/h 25 BTU/h
External Power Supply Input: 100-240 V AC, 50/60 Hz Output: 48 V DC / 1.36 A
Dimensions (H × W × D) Inches Millimeters
Host Endpoint 0.91 x 5.31 x 3.94 23 x 135 x 100
Device Endpoint 4.17 x 3.54 x 1.81 106 x 90 x 46
Weight Pounds Kilograms
Host Endpoint 0.71 0.32
Device Endpoint 0.88 0.39
Certification
Extender Kit CE, FCC, UKCA, RCM
Power Supply CE, FCC, UKCA, RCM, UL
Compliance
NDAA-889 Yes
Warranty
Device To view the product warranty, use the following link: atlona.com/warranty

Footnotes

(1) A USB device can have multiple In and Out endpoints. An In endpoint sends data to a USB Host, while an Out endpoint receives data from a USB Host.

(2) Specified bandwidth is the total available bandwidth. Actual bandwidth available for payload data will be reduced by USB and transport overhead. Practical payload data rates will be approximately 320 Mbps for USB 2.0 and 3.8 Gbps for USB 3.0.

Diagrams

Diagrams

5 Gbps USB 3.2 Gen 1 Extension

The USB-EX350-WPD-KIT can be used to extend USB signals from a 4K camera to an Omega switcher and routed to either the connected laptop or room PC.

Resources

Resources

Documentation

pdf-icon Datasheet
pdf-icon Manual

Related Products

Related Products

Product Description
AT-CAP-FC110 Captivate™ 4K ePTZ Auto-Framing Camera
AT-HDVS-CAM PTZ Camera with USB

Similar Products

Product Description
AT-OME-EX-KIT-LT HDBaseT extender kit for HDMI, power, control, and USB
AT-OME-EX-TX HDBaseT Transmitter with HDMI Input and USB Hub
AT-OME-EX-RX HDBaseT Receiver with USB Hub
AT-OME-EX-WP-KIT Wallplate HDBaseT extender kit for HDMI, power, control, and USB
AT-OMNI-311 USB to IP Adapter for Host Device
AT-OMNI-324 IP to USB Adapter for Peripheral Devices

Known Compatibility Issues
Products Notes
AT-CAP-SP100 – Captivate™ USB / Bluetooth Speakerphone USB ports on the USB-EX350-KIT device endpoint are NOT compatible with the CAP-SP100 speakerphone
