USB 3.2 Gen 1 Data Extender Kit

USB 3.2 Gen 1 Data Extender Kit

AT-USB-EX350-KIT

  • USB extension up to 330 feet (100 meters)
  • Supports USB 3.2 Gen 1 data rates up to 5 Gbps
  • Supports USB 2.0 data rates up to 480 Mbps
  • USB-C interface for host connection
  • Three USB-A and one USB-C for peripheral connections
  • LAN port for configuration, monitoring, and control over the network
SKU: AT-USB-EX350-KIT Categories: , , , , Tags: , , , , , ,

NOW SHIPPING ***


USB 3.2 Gen 1 Extender

Extend high data rate USB

The Atlona AT-USB-EX350-KIT supports extension of 5 Gbps USB 3.2 Gen 1 data up to 330 feet (100 meters). It allows high data rate USB components including laptops, computers, cameras, microphones, and speakers are to be located in different areas of the room.

Enhanced integration capabilities

Network connection provides access to advanced features including individual VBUS configuration, power consumption and connection monitoring, firmware updates, and RS-232 control.

Additional Features

The Atlona AT-USB-EX350-KIT is a data only USB extender kit that supports transmission of 5 Gbps USB 3.2 Gen 1 data up to 330 feet (100 meters) using a single, cost-effective Category 6A U/FTP cable.

USB

Simultaneous support for USB 3.2 Gen 1 data rates up to 5 Gbps, and USB 2.0 data rates up to 480 Mbps.

Extension

Transmits 5 Gbps USB 3.2 Gen 1 data up to 330 feet (100 meters) over Category 6A U/FTP cable.

Integration Features

Network interface for VBUS configuration, power / connection monitoring, firmware updates, and RS-232 control.

Bidirectional Remote Power

The USB-EX350-KIT offers the flexibility of powering the extender from either the host or device endpoint.

Videos

Atlona AT-USB-EX350-KIT Highlights

Watch this overview video to see how the AT-USB-EX350-KIT enhances USB extension.

Introducing the AT-USB-EX350-KIT

This video offers a detailed introduction to the AT-USB-EX350-KIT, a data only USB 3.2 extender kit supporting simultaneous extension of 5 Gbps USB 3.2 Gen 1 data and 480 Mbps USB 2.0 data, up to 330 feet (100 meters) over Category 6A U/FTP cable.

AT-USB-EX350-Kit Setup & Configuration

This video offers detailed instructions for the setup and configuration for the AT-USB-EX350-KIT.

Details

The Atlona AT-USB-EX350-KIT is a data only USB 3.2 extender kit. It supports simultaneous extension of 5 Gbps USB 3.2 Gen 1 data and 480 Mbps USB 2.0 data up to 330 feet (100 meters) using a single, cost-effective Category 6A U/FTP cable.

The USB-EX350-KIT is ideal for video conferencing or remote instruction applications where high data rate USB components including laptops, computers, cameras, microphones, and speakers are in different areas of the room.

The USB-EX350-KIT is comprised of two endpoints. The host endpoint includes a USB-C port for connection to hosts such as laptops, computers, or other AV equipment that supports USB connectivity including many Omega™ Series products. The device endpoint includes three USB Type A ports and one USB-C port for connection to 4K cameras, conferencing bars, microphones, speakers, and other peripherals. Bidirectional remote power allows the kit to be powered by the included power supply connected to either the host or device endpoint.

A LAN connection on the host endpoint provides access to advanced integration capabilities including:

  • Monitor system and port status for validation and troubleshooting
  • Configure VBUS modes
  • Update firmware
  • IP to RS-232 translation supporting bi-directional serial control through the device endpoint

The USB-EX350-KIT is a great solution for extending USB 3.2 Gen 1 data up to 5 Gbps between components at distances greater than is possible with traditional cabling.

Applications

  • Education – Ideal for remote instruction applications where higher data rate USB peripherals such as 4K cameras are located at distances of up to 330 feet (100 meters) from a classroom computer or teacher laptop.
  • Commercial – Provides access to higher data rate USB peripherals such as 4K cameras that are located at distances of up to 330 feet (100 meters) from video conferencing software running on a meeting/conference room computer or laptop.

Features

  • Point-to-point USB extender kit for devices such as cameras, speakers, microphones and other peripherals
  • Extends USB data up to 330 feet (100 meters) using a single Category 6A U/FTP cable
  • Supports USB 3.2 Gen 1 data rates up to 5 Gbps
  • Supports USB 2.0 data rates up to 480 Mbps
  • One USB-C interface for host connection
  • Three USB-A and one USB-C for peripheral connections
  • Each peripheral port provides up to 1.5 amps (3.2 amps total) allowing even energy-hungry components to be powered by the device endpoint
  • Bidirectional remote power allows the kit to be powered by either the host or device endpoint
  • LAN port for configuration, monitoring, and control over the network
  • Configurable VBUS mode for each USB port on the device endpoint
  • IP to RS-232 translation for bi-directional RS-232 communications through the device endpoint
  • Compact enclosures can be mounted in furniture, behind a display, or above a projector
  • Kit includes host endpoint, device endpoint, power supply, 3′ USB-A to USB-C cable, captive screw connector, mounting brackets, and screws
  • To view the product warranty, use the following link: https://atlona.com/warranty/

Specifications

USB Capabilities
Protocol Support USB 2.0, USB 3.2 Gen 1 (5 Gbps)
USB 2.0 Capabilities(1) Maximum hubs: 9
Maximum hub tiers: 5 (including the one in the AT-USB-EX350-KIT)
Maximum devices: 7
Maximum endpoints: 14 (IN), 15 (OUT)
USB 3.2 Gen 1 Capabilities(1) Maximum hub tiers: 5 (including the one in the AT-USB-EX350-KIT)
Maximum end points: 126
USB Transfer Types Control, Bulk, Interrupt, Isochronous
Internal Hubs USB 2.0: 1 Hub, 1 Tier
USB 3.2 Gen 1: 2 Hubs, 2 Tiers
USB Power Host: No Power
Device: max 1.5A per port, 3.2A total across all device ports
USB Device VBUS Control Per-port settings: Follow USB Host, Always High, Always Low
Bandwidth(2) USB 2.0: 480 Mbps
USB 3.2 Gen 1: 5 Gbps

Ethernet
Port 1 x RJ45 on Host Endpoint
Standards and Protocols HTTP, HTTPS, Telnet, SSH, JSON over WebSockets, TCP Proxy for RS-232, NTP
Speeds 10/100 Mbps
Addressing DHCP, Static – selectable through built-in web server and API commands
802.1x Support PEAP-MSCHAPv2, EAP-TLS

RS-232
Port 1 x 3-pin captive screw on Device Endpoint
Use External device control via TCP Proxy
Baud Rates 9600, 19200, 38400, 57600, 115200
Data Flow Bidirectional
Distance Feet Meters
CAT 6A U/FTP – straight run 330 100
CAT 6A U/FTP – through patch panel/coupler 295 90
CAT 6A UTP – either straight run or through patch panel/coupler 230 70
CAT 5e UTP – either straight run or through patch panel/coupler 164 50

Indicators (Host Endpoint)
PWR
LINK
FW(3)		 1 x LED, green
1 x LED, green
1 x LED, amber

Indicators (Device Endpoint)
PWR
LINK
FW(3)		 1 x LED, green
1 x LED, green
1 x LED, amber

Connectors (Host Endpoint)
USB HOST (5G) 1 x USB-C, locking
MGMT 1 x USB-C
LAN 1 x RJ45
HDBT-USB3 1 x RJ45
48V – 1.36A(4) 1 x 2-pin captive screw

Connectors (Device Endpoint)
USB DEVICES (5G) 3 x USB-A
1 x USB-C, locking
DEBUG 1 x USB-C
RS-232 1 x 3-pin captive screw
HDBT-USB3 1 x RJ45
48V – 1.36A(4) 1 x 2-pin captive screw

Environmental Fahrenheit Celsius
Operating Temperature +32 to +104 0 to +40
Storage Temperature -4 to +158 -20 to +70
Operating Humidity (RH) 20% to 90%, non-condensing

Power Powered from Total System Power Host Endpoint Device Endpoint
Consumption (system under full USB device load) Host Endpoint
Device Endpoint		 33 W (max)
29 W (max)		 25.4 BTU/h
11.1 BTU/h		 21 BTU/H
25 BTU/h
External Power Supply 100 – 240 V AC, 50/60 Hz
Output: 48 V DC / 1.36 A

Dimensions (H x W x D) Inches Millimeters
Host Endpoint 0.91 x 5.31 x 3.94 23 x 135 x 100
Device Endpoint 0.91 x 5.31 x 3.94 23 x 135 x 100

Weight Pounds Kilograms
Host Endpoint 0.68 0.31
Device Endpoint 0.71 0.32

Certification
Extender Kit CE, FCC, UKCA, RCM
Power Supply CE, FCC, UKCA, RCM, UL

Compliance
NDAA-889 Yes

Footnotes

(1) A USB device can have multiple In and Out endpoints. An In endpoint sends data to a USB Host, while an Out endpoint receives data from a USB Host.

(2) Specified bandwidth is the total available bandwidth. Actual bandwidth available for payload data will be reduced by USB and transport overhead. Practical payload data rates will be approximately 320 Mbps for USB 2.0 and 3.8 Gbps for USB 3.0.

(3) Used to indicate the state of the HDBT-USB3 firmware.

(4) Kit can be powered from either end.

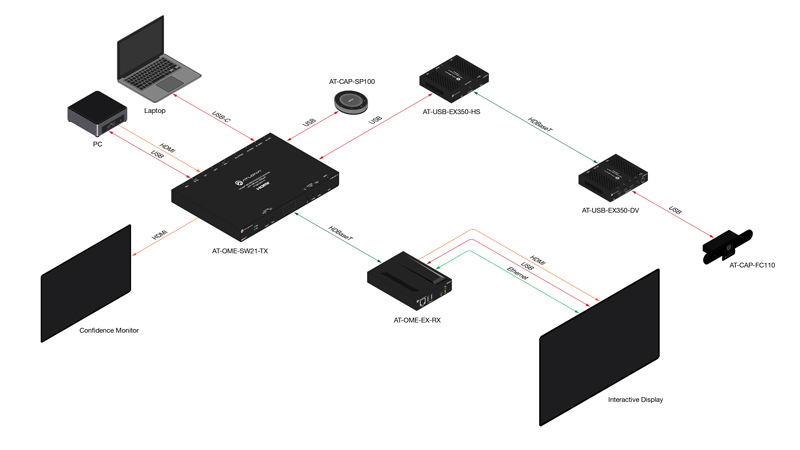

Diagrams

5 Gbps USB 3.2 Gen 1 Extension

The USB-EX350-KIT can be used to extend USB signals from a 4K camera to an Omega switcher and routed to either the connected laptop or room PC.

Resources

Documentation

pdf-icon Datasheet
pdf-icon Installation Guide
pdf-icon Manual
pdf-icon API

Declaration of Conformity

pdf-icon AT-USB-EX350-KIT
pdf-icon CE AT-USB-EX350-KIT
pdf-icon UK AT-USB-EX350-KIT

Letter of Volatility

pdf-icon AT-USB-EX350-KIT

CAD Files

cad-icon-(1) AT-USB-EX350-DV (dwg)
cad-icon-(1) AT-USB-EX350-DV (pdf)
cad-icon-(1) AT-USB-EX350-HS (dwg)
cad-icon-(1) AT-USB-EX350-HS (pdf)

Support

pdf-icon Product Engineering Document

Related Products

Product Description
AT-CAP-FC110 Captivate™ 4K ePTZ Auto-Framing Camera
AT-HDVS-CAM PTZ Camera with USB

Similar Products

Product Description
AT-OME-EX-KIT-LT HDBaseT extender kit for HDMI, power, control, and USB
AT-OME-EX-TX HDBaseT Transmitter with HDMI Input and USB Hub
AT-OME-EX-RX HDBaseT Receiver with USB Hub
AT-OME-EX-WP-KIT Wallplate HDBaseT extender kit for HDMI, power, control, and USB
AT-OMNI-311 USB to IP Adapter for Host Device
AT-OMNI-324 IP to USB Adapter for Peripheral Devices

Known Compatibility Issues
Products Notes
AT-CAP-SP100 – Captivate™ USB / Bluetooth Speakerphone USB ports on the USB-EX350-KIT device endpoint are NOT compatible with the CAP-SP100 speakerphone

AT-USB-EX350-KIT Firmware

Firmware Version 1.0.0
File Size 23 MB
Date 03.18.25

Factory Firmware

Version 1.0.0

Features

  • Initial release.

Bug Fixes

  • None.

Known Issues

  • Certain USB hubs, when connected to a device port on the AT-USB-EX350-KIT, can cause the unit to incorrectly report device connectivity status on the web UI. This does not affect the functionality of the AT-USB-EX350-KIT. This has only been seen in isolated cases, and a work-around is to use a hub from a different manufacturer.
  • When accessing the web UI using the Mozilla Firefox® browser, refreshing the web page can cause the the AT-USB-EX350-KIT login page to be displayed. In this case, it is recommended to use a different browser, such as Google Chrome™, to avoid this issue.
  • Repeatedly sending the UsbInfo.Get API call to the AT-USB-EX350-KIT can cause USB 3.0 devices to disconnect and reconnect. Users are advised not to poll this command regularly as it can cause connectivity issues.
