4K HDR HDBaseT Matrix Switcher

4K HDR HDBaseT Matrix Switcher

AT-HDR-MX1616

  • Matrix switcher with 16 HDMI® inputs and 16 HDBaseT™ outputs
  • Mirrored HDMI output for each HDBaseT output
  • 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
  • HDBaseT outputs extend AV, Ethernet, control signals, and power up to 330 feet (100 meters)
  • Audio matrix routes de-embedded audio sources to unbalanced stereo analog outputs
  • Remotely powers compatible receivers over HDBaseT
SKU: AT-HDR-MX1616 Categories: , , , , , , Tags: ,

NOW SHIPPING ***


4K HDR HDBaseT Matrix Switcher

High Density Matrix Switching

With 16 HDMI inputs and 16 HDBaseT outputs the Atlona AT-HDR-MX1616 matrix switcher is perfect for education, commercial, and hospitality applications where centralized inputs need to be routed to multiple projectors or displays installed throughout the environment.

Long Distance Extension and Audio Matrix

HDBaseT outputs support transmission of video, audio, Ethernet, control signals, and power up to 330 feet (100 meters). The built-in audio matrix routes de-embedded audio sources to analog outputs for integration with multi-zone audio distribution systems.

Additional Features

The Atlona AT-HDR-MX1616 is a high density matrix switcher for high dynamic range (HDR) formats. It enables flexible routing of 16 HDMI input signals to 16 HDBaseT outputs and has an audio matrix for integration with multi-zone distribution systems.

4K HDR

4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats.

HDMI I/O

16 HDMI inputs as well as a mirrored HDMI output for each HDBaseT output.

HDBaseT Outputs

16 HDBaseT outputs extend AV, Ethernet, control, and power up to 330 feet (100 meters).

Audio Matrix

Routes 16 de-embedded audio sources to 16 unbalanced stereo analog outputs.

Videos

Introducing the AT-HDR-MX1616

This video offers a detailed introduction to the AT-HDR-MX1616, a matrix switcher with 16 HDMI inputs and 16 HDBaseT outputs.

AT-HDR-MX1616 Setup & Configuration

This video offers detailed instructions for the setup and configuration for the AT-HDR-MX1616.

Details

The Atlona AT-HDR-MX1616 is a 16×16 HDMI® to HDBaseT™ matrix switcher for high dynamic range (HDR) formats. It is HDCP 2.2 compliant, supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, and data rates up to 18 Gbps.

The HDR-MX1616 enables flexible routing of 16 HDMI input signals to 16 HDBaseT outputs that support transmission of video, audio, Ethernet, control signals, and power up to 330 feet (100 meters) over CAT6A cable. Each HDBaseT output also has a mirrored HDMI output for connection to local display devices.

The built-in audio matrix routes up to 16 2CH PCM de-embedded audio sources to 16 unbalanced stereo analog outputs for integration with multi-zone audio distribution systems. Each audio output has independent volume and mute control.

The HDR-MX1616 provides TCP/IP, RS-232, and IR ports for control of the switcher itself. It also supports independent RS-232, IR, and CEC communications over each HDBaseT output for controlling remote displays and peripherals.

The HDR-MX1616 is housed in a 4U enclosure with active cooling to ensure continuous reliability. It also provides remote power to compatible HDBaseT receivers. Access the Compatibility Table for information on receivers for the HDR-MX1616.

Applications

  • Education – Lecture halls and auditoriums where routing centralized inputs to multiple projectors or displays installed throughout the room is required
  • Commercial – Board rooms, training rooms, common areas, or manufacturing/warehousing facilities where video sources need to be routed to multiple display devices
  • Hospitality/Retail – Sports bars, casinos, or showrooms that require matrix routing of 4K HDR content

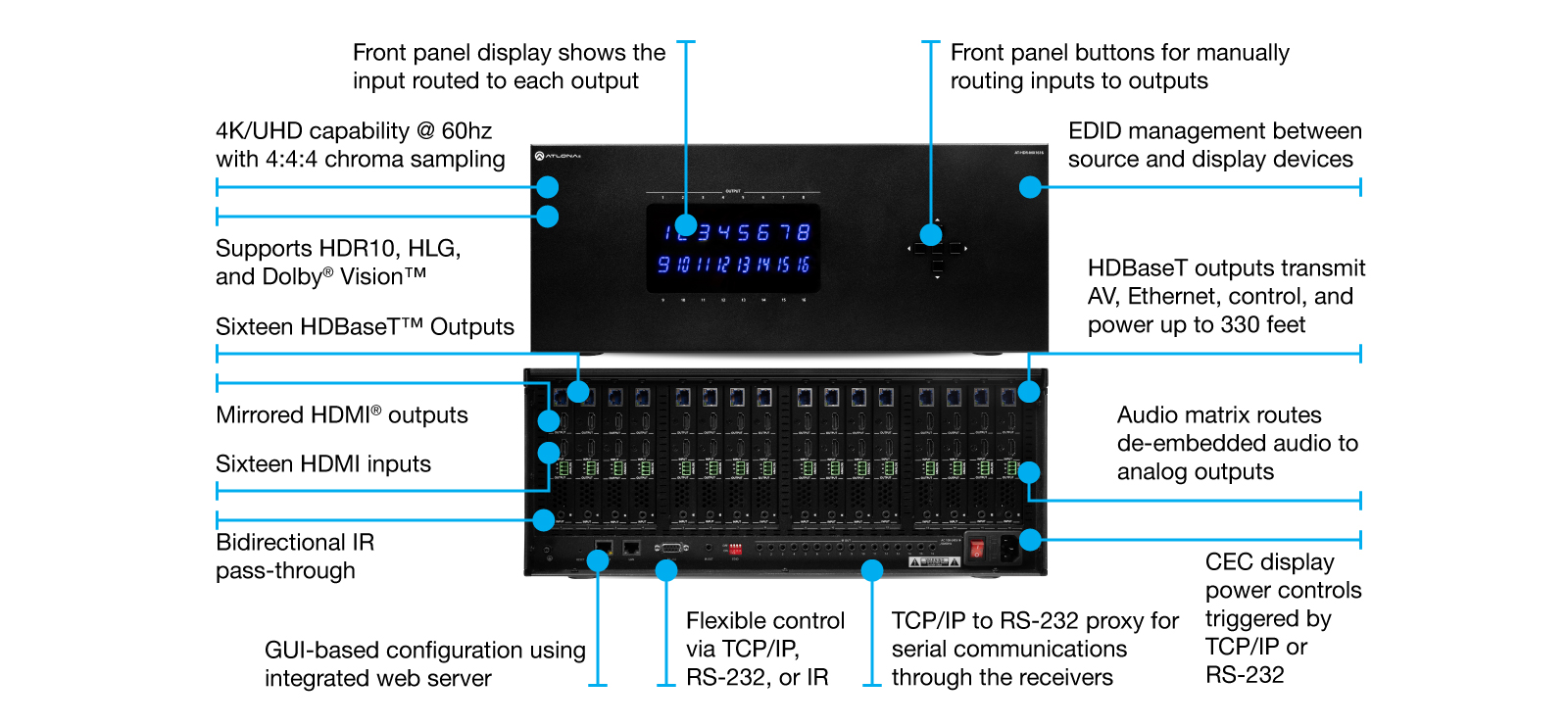

Features

  • 4K HDR matrix switcher with 16 HDMI inputs and 16 HDBaseT outputs
  • Each HDBaseT output has a mirrored HDMI output to support local display devices
  • 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling
  • Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT
  • HDCP 2.2 compliant
  • Supports HDR10, HLG, and Dolby Vision® HDR formats
  • HDBaseT outputs extend 4K HDR video, multi-channel audio, Ethernet, control signals, and power up to 330 feet (100 meters) over Category 6A cable
  • Built-in audio matrix routes de-embedded audio sources to unbalanced stereo analog outputs with independent volume control for integration with zoned audio systems
  • Remotely powers compatible receivers over HDBaseT
  • Manages EDID communications between source and display devices with automatic, user defined, or preset configurations.
  • Front panel button controls and display
  • Intuitive GUI-based configuration using integrated web server
  • Flexible control options via TCP/IP, RS-232, and IR with Atlona Velocity™ or third-party control systems
  • TCP/IP to RS-232 proxy for bi-directional serial communications through the receivers over HDBaseT
  • Supports automatic CEC display power controls as well as triggering by TCP/IP or RS-232 for both HDBaseT and mirrored HDMI for each output
  • Compatible with the AT-HDR-EX-100CEA-RX receiver for extension of up to 330 feet (100 meters)
  • Compatible with the AT-HDR-EX-70C-RX receiver for extension of up to 130 feet (40 meters)
  • Rack mountable 4U, full-rack width enclosure
  • Included Accessories: Captive screw connectors (3-pin), IEC Cable, mounting ears w/screws, feet w/screws
  • To view the product warranty, use the following link: https://atlona.com/warranty/

Specifications

Video
Signal Input – HDMI
Output – HDBaseT, HDMI
Copy Protection HDCP 1.4/2.2
Pixel Clock Up to 600MHz with a compatible receiver
UHD/HD/SD 4096×2160(DCI)@60/50/30/25/24Hz
3840×2160(UHD)@60/50/30/25/24Hz
2560×1440@30Hz
1920x1080p@60/59.94/50/30/29.97/25/24/23.98Hz		 1920x1080i@30/29.97/25Hz
1280x720p@60/59.94/50/30Hz
720x576i/p@50Hz
720x480i/p@60Hz
VESA
All resolutions are 60Hz		 2560×1600
2048×1536
1920×1200
1680×1050
1600×1200
1440×900
1400×1050
1280×1024 		1280×800
1366×768
1360×768
1152×864
1024×768
800×600
640×480
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color Depth 8-bit, 10-bit, 12-bit
HDR Up to 4K HDR10@60Hz, 4K Hybrid-Log Gamma (HLG)@60Hz, and 4K Dolby
Vision®@60Hz

Audio
HDMI Pass-Through Formats LPCM 2.0
LPCM 5.1
LPCM 7.1 		Dolby®
Dolby Digital Plus™
Dolby Atmos®		 DTS® Digital Surround™
DTS-HD Master Audio™
DTS:X®
Bit Depth Up to 24 bits
Sample Rate 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Analog Audio Format: Stereo 2-Channel
Type: Unbalanced Audio

LAN
Port 1 x RJ45
Standards and Protocols HTTP, HTTPS, Telnet, SSH, mDNS
Speeds 10/100 Mbps
Addressing DHCP, Static

CEC
Ports 16 x HDMI OUT, Type A, 19-pin female
16 x HDBaseT pass through, RJ45
Triggering via Auto, and built-in Web Server

Connectors
HDMI IN 16 x Type A, 19-pin female
HDMI OUT 16 x Type A, 19-pin female
HDBaseT OUT 16 x RJ45
Analog Audio Out 16 x 3-pin captive screw
IR IN/OUT/Ext 33 x 3.5 mm, female
ETHERNET/LAN 2 x RJ45
RS-232 1 x DE-9
AC 100-240V 50/60Hz 1 x IEC connector

Indicators, Buttons, and Controls
Buttons
  Up, Down, Left, Right, Enter 		5 – momentary, tact-type

Resolution / Distance Distance Resolution
HDMI 10m/30ft 1080p@60Hz 4:4:4 8-bit
HDMI 5m/15ft 4K@60Hz 4:4:4 12-bit
CAT 5e/6 100m/330ft 1080p@60Hz 4:4:4 10-bit
CAT 5e/6 70m/230ft 1080p@60Hz 4:4:4 12-bit
4K@60Hz 4:4:4 8-bit
CAT6a/7 100m/330ft 1080p@60Hz 4:4:4 12-bit
4K@60Hz 4:4:4 8-bit

Power
Consumption Idle: 126W
Max: 360W
Supply Internal AC 100-240V 50/60Hz
BTU/h (max) 791.12

Temperature Fahrenheit Celsius
Operating 32 to 113 0 to 45
Storage -4 to 158 -20 to 70
Humidity (RH) 10% to 90%, non-condensing

Dimensions (H x W x D) Inches Millimeters
Unit 6.93 x 17.32 x 15.07 176 x 440 x 382.7

Weight Pounds Kilograms
Device 38.58 17.49

Certification
Device CE, FCC

Compliance
NDAA-899 Yes

Warranty
Device To view the product warranty, use the following link: https://atlona.com/warranty/

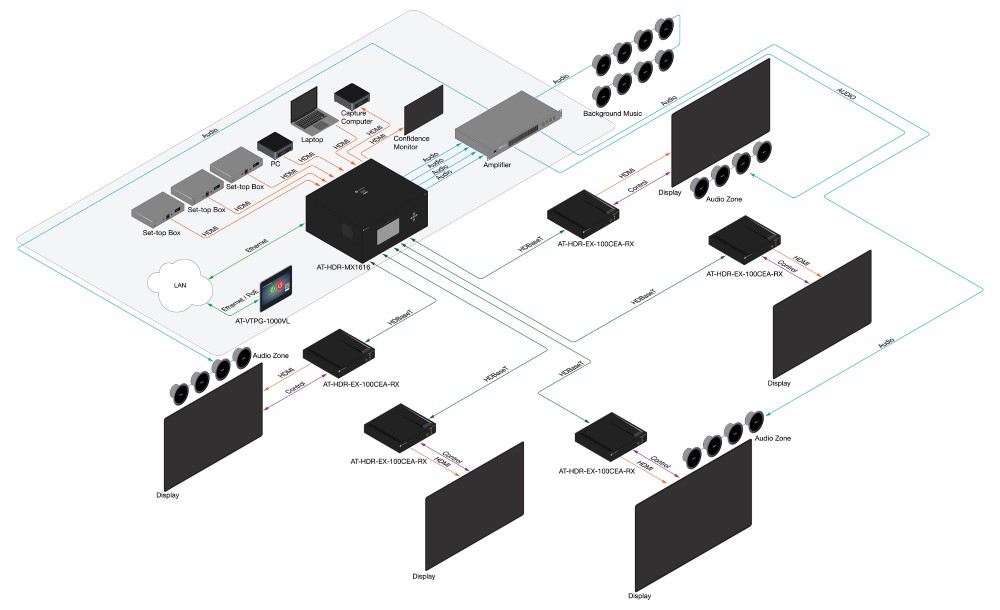

Diagrams

High Density Matrix Switching and Extension

The HDR-MX1616 is designed for matrix environments where up to 16 sources need to be routed to up to 16 display devices. It’s HDBaseT outputs extend signals to receivers up to 100 meters. The audio matrix feeds into individual speaker zones.

Resources

Documentation

pdf-icon Datasheet
pdf-icon Installation Guide
pdf-icon Manual
pdf-icon API

Declaration of Conformity

pdf-icon AT-HDR-MX1616
pdf-icon CE AT-HDR-MX1616
pdf-icon UK AT-HDR-MX1616

Letter of Volatility

pdf-icon AT-HDR-MX1616

Related Products

Compatible Products

These products are designed to work together with the AT-HDR-MX1616.

Product Description
AT-HDR-EX-100CEA-RX 4K HDR HDBaseT Receiver with Control, Ethernet, and Remote Power
AT-HDR-EX-70C-RX 4K HDR HDBaseT Receiver with Control and Remote Power
AT-UHD-EX-100CE-RX 4K/UHD HDMI Over 100 M HDBaseT Receiver with Ethernet, Control, and PoE*
AT-UHD-EX-70C-RX 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE*

*Note: Chroma sampling and HDR support are limited for these products. Refer to the Compatibility Table for further information.

Similar Products

These products are similar to the AT-HDR-MX1616 in capabilities and function.

Product Description
AT-PRO5-MX810 4K HDR HDMI Matrix Switcher with SDVoE Extension Outputs
AT-HDR-H2H-88MA 4K HDR 8×8 Matrix Switcher for HDMI Signals
AT-OME-PS62 6×2 Matrix Presentation Switcher with USB Hub
AT-UHD-CLSO-824 8×2 Multi-Format Matrix Switcher with Dual, Mirrored HDMI / HDBaseT Outputs

Compatibility Table

The following table shows compatibility information between the AT-HDR-MX1616 and receivers.

SKU Max Resolution HDR Ethernet Pass Through Remote Power
AT-HDR-EX-100CEA-RX 4K@60 4:4:4 X X X
AT-HDR-EX-70C-RX 4K@60 4:4:4 X X
AT-UHD-EX-100CE-RX 4K@60 4:2:0 X X
AT-UHD-EX-70C-RX 4K@60 4:2:0 X

AT-HDR-MX1616 Firmware

Firmware Version 1.0.1
File Size 297 MB
Date 05.27.25

Release Notes

Version 1.0.1

Features

  • Added separate Telnet and SSH selections within the Web Server, to allow user to individually enable/disable each protocol.

Bug Fixes

  • Updated SSH TLS Version.
  • Updated compatibility for use with Velocity Device Manager.
  • IP Address now updates correctly when physically connected to another network.
  • Input labels can now be renamed.
  • Carriage return and linefeed are no longer incorrectly added to RS-232 commands send through the Web Server.
  • VOUT# sta command is now working as intended.

Known Bugs

  • N/A

Previous Releases
Version 1
  • Factory firmware
Overview

4K HDR HDBaseT Matrix Switcher

High Density Matrix Switching

With 16 HDMI inputs and 16 HDBaseT outputs the Atlona AT-HDR-MX1616 matrix switcher is perfect for education, commercial, and hospitality applications where centralized inputs need to be routed to multiple projectors or displays installed throughout the environment.

Long Distance Extension and Audio Matrix

HDBaseT outputs support transmission of video, audio, Ethernet, control signals, and power up to 330 feet (100 meters). The built-in audio matrix routes de-embedded audio sources to analog outputs for integration with multi-zone audio distribution systems.

Additional Features

The Atlona AT-HDR-MX1616 is a high density matrix switcher for high dynamic range (HDR) formats. It enables flexible routing of 16 HDMI input signals to 16 HDBaseT outputs and has an audio matrix for integration with multi-zone distribution systems.

4K HDR

4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats.

HDMI I/O

16 HDMI inputs as well as a mirrored HDMI output for each HDBaseT output.

HDBaseT Outputs

16 HDBaseT outputs extend AV, Ethernet, control, and power up to 330 feet (100 meters).

Audio Matrix

Routes 16 de-embedded audio sources to 16 unbalanced stereo analog outputs.

Videos

Videos

Introducing the AT-HDR-MX1616

This video offers a detailed introduction to the AT-HDR-MX1616, a matrix switcher with 16 HDMI inputs and 16 HDBaseT outputs.

AT-HDR-MX1616 Setup & Configuration

This video offers detailed instructions for the setup and configuration for the AT-HDR-MX1616.

Details

Details

The Atlona AT-HDR-MX1616 is a 16×16 HDMI® to HDBaseT™ matrix switcher for high dynamic range (HDR) formats. It is HDCP 2.2 compliant, supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, and data rates up to 18 Gbps.

The HDR-MX1616 enables flexible routing of 16 HDMI input signals to 16 HDBaseT outputs that support transmission of video, audio, Ethernet, control signals, and power up to 330 feet (100 meters) over CAT6A cable. Each HDBaseT output also has a mirrored HDMI output for connection to local display devices.

The built-in audio matrix routes up to 16 2CH PCM de-embedded audio sources to 16 unbalanced stereo analog outputs for integration with multi-zone audio distribution systems. Each audio output has independent volume and mute control.

The HDR-MX1616 provides TCP/IP, RS-232, and IR ports for control of the switcher itself. It also supports independent RS-232, IR, and CEC communications over each HDBaseT output for controlling remote displays and peripherals.

The HDR-MX1616 is housed in a 4U enclosure with active cooling to ensure continuous reliability. It also provides remote power to compatible HDBaseT receivers. Access the Compatibility Table for information on receivers for the HDR-MX1616.

Applications

  • Education – Lecture halls and auditoriums where routing centralized inputs to multiple projectors or displays installed throughout the room is required
  • Commercial – Board rooms, training rooms, common areas, or manufacturing/warehousing facilities where video sources need to be routed to multiple display devices
  • Hospitality/Retail – Sports bars, casinos, or showrooms that require matrix routing of 4K HDR content

Features

  • 4K HDR matrix switcher with 16 HDMI inputs and 16 HDBaseT outputs
  • Each HDBaseT output has a mirrored HDMI output to support local display devices
  • 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling
  • Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT
  • HDCP 2.2 compliant
  • Supports HDR10, HLG, and Dolby Vision® HDR formats
  • HDBaseT outputs extend 4K HDR video, multi-channel audio, Ethernet, control signals, and power up to 330 feet (100 meters) over Category 6A cable
  • Built-in audio matrix routes de-embedded audio sources to unbalanced stereo analog outputs with independent volume control for integration with zoned audio systems
  • Remotely powers compatible receivers over HDBaseT
  • Manages EDID communications between source and display devices with automatic, user defined, or preset configurations.
  • Front panel button controls and display
  • Intuitive GUI-based configuration using integrated web server
  • Flexible control options via TCP/IP, RS-232, and IR with Atlona Velocity™ or third-party control systems
  • TCP/IP to RS-232 proxy for bi-directional serial communications through the receivers over HDBaseT
  • Supports automatic CEC display power controls as well as triggering by TCP/IP or RS-232 for both HDBaseT and mirrored HDMI for each output
  • Compatible with the AT-HDR-EX-100CEA-RX receiver for extension of up to 330 feet (100 meters)
  • Compatible with the AT-HDR-EX-70C-RX receiver for extension of up to 130 feet (40 meters)
  • Rack mountable 4U, full-rack width enclosure
  • Included Accessories: Captive screw connectors (3-pin), IEC Cable, mounting ears w/screws, feet w/screws
  • To view the product warranty, use the following link: https://atlona.com/warranty/
Specifications

Specifications

Video
Signal Input – HDMI
Output – HDBaseT, HDMI
Copy Protection HDCP 1.4/2.2
Pixel Clock Up to 600MHz with a compatible receiver
UHD/HD/SD 4096×2160(DCI)@60/50/30/25/24Hz
3840×2160(UHD)@60/50/30/25/24Hz
2560×1440@30Hz
1920x1080p@60/59.94/50/30/29.97/25/24/23.98Hz		 1920x1080i@30/29.97/25Hz
1280x720p@60/59.94/50/30Hz
720x576i/p@50Hz
720x480i/p@60Hz
VESA
All resolutions are 60Hz		 2560×1600
2048×1536
1920×1200
1680×1050
1600×1200
1440×900
1400×1050
1280×1024 		1280×800
1366×768
1360×768
1152×864
1024×768
800×600
640×480
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color Depth 8-bit, 10-bit, 12-bit
HDR Up to 4K HDR10@60Hz, 4K Hybrid-Log Gamma (HLG)@60Hz, and 4K Dolby
Vision®@60Hz

Audio
HDMI Pass-Through Formats LPCM 2.0
LPCM 5.1
LPCM 7.1 		Dolby®
Dolby Digital Plus™
Dolby Atmos®		 DTS® Digital Surround™
DTS-HD Master Audio™
DTS:X®
Bit Depth Up to 24 bits
Sample Rate 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Analog Audio Format: Stereo 2-Channel
Type: Unbalanced Audio

LAN
Port 1 x RJ45
Standards and Protocols HTTP, HTTPS, Telnet, SSH, mDNS
Speeds 10/100 Mbps
Addressing DHCP, Static

CEC
Ports 16 x HDMI OUT, Type A, 19-pin female
16 x HDBaseT pass through, RJ45
Triggering via Auto, and built-in Web Server

Connectors
HDMI IN 16 x Type A, 19-pin female
HDMI OUT 16 x Type A, 19-pin female
HDBaseT OUT 16 x RJ45
Analog Audio Out 16 x 3-pin captive screw
IR IN/OUT/Ext 33 x 3.5 mm, female
ETHERNET/LAN 2 x RJ45
RS-232 1 x DE-9
AC 100-240V 50/60Hz 1 x IEC connector

Indicators, Buttons, and Controls
Buttons
  Up, Down, Left, Right, Enter 		5 – momentary, tact-type

Resolution / Distance Distance Resolution
HDMI 10m/30ft 1080p@60Hz 4:4:4 8-bit
HDMI 5m/15ft 4K@60Hz 4:4:4 12-bit
CAT 5e/6 100m/330ft 1080p@60Hz 4:4:4 10-bit
CAT 5e/6 70m/230ft 1080p@60Hz 4:4:4 12-bit
4K@60Hz 4:4:4 8-bit
CAT6a/7 100m/330ft 1080p@60Hz 4:4:4 12-bit
4K@60Hz 4:4:4 8-bit

Power
Consumption Idle: 126W
Max: 360W
Supply Internal AC 100-240V 50/60Hz
BTU/h (max) 791.12

Temperature Fahrenheit Celsius
Operating 32 to 113 0 to 45
Storage -4 to 158 -20 to 70
Humidity (RH) 10% to 90%, non-condensing

Dimensions (H x W x D) Inches Millimeters
Unit 6.93 x 17.32 x 15.07 176 x 440 x 382.7

Weight Pounds Kilograms
Device 38.58 17.49

Certification
Device CE, FCC

Compliance
NDAA-899 Yes

Warranty
Device To view the product warranty, use the following link: https://atlona.com/warranty/
Diagrams

Diagrams

High Density Matrix Switching and Extension

The HDR-MX1616 is designed for matrix environments where up to 16 sources need to be routed to up to 16 display devices. It’s HDBaseT outputs extend signals to receivers up to 100 meters. The audio matrix feeds into individual speaker zones.

Resources

Resources

Documentation

pdf-icon Datasheet
pdf-icon Installation Guide
pdf-icon Manual
pdf-icon API

Declaration of Conformity

pdf-icon AT-HDR-MX1616
pdf-icon CE AT-HDR-MX1616
pdf-icon UK AT-HDR-MX1616

Letter of Volatility

pdf-icon AT-HDR-MX1616
Related Products

Related Products

Compatible Products

These products are designed to work together with the AT-HDR-MX1616.

Product Description
AT-HDR-EX-100CEA-RX 4K HDR HDBaseT Receiver with Control, Ethernet, and Remote Power
AT-HDR-EX-70C-RX 4K HDR HDBaseT Receiver with Control and Remote Power
AT-UHD-EX-100CE-RX 4K/UHD HDMI Over 100 M HDBaseT Receiver with Ethernet, Control, and PoE*
AT-UHD-EX-70C-RX 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE*

*Note: Chroma sampling and HDR support are limited for these products. Refer to the Compatibility Table for further information.

Similar Products

These products are similar to the AT-HDR-MX1616 in capabilities and function.

Product Description
AT-PRO5-MX810 4K HDR HDMI Matrix Switcher with SDVoE Extension Outputs
AT-HDR-H2H-88MA 4K HDR 8×8 Matrix Switcher for HDMI Signals
AT-OME-PS62 6×2 Matrix Presentation Switcher with USB Hub
AT-UHD-CLSO-824 8×2 Multi-Format Matrix Switcher with Dual, Mirrored HDMI / HDBaseT Outputs
Compatibility Table

Compatibility Table

The following table shows compatibility information between the AT-HDR-MX1616 and receivers.

SKU Max Resolution HDR Ethernet Pass Through Remote Power
AT-HDR-EX-100CEA-RX 4K@60 4:4:4 X X X
AT-HDR-EX-70C-RX 4K@60 4:4:4 X X
AT-UHD-EX-100CE-RX 4K@60 4:2:0 X X
AT-UHD-EX-70C-RX 4K@60 4:2:0 X
Firmware

AT-HDR-MX1616 Firmware

Firmware Version 1.0.1
File Size 297 MB
Date 05.27.25

Release Notes

Version 1.0.1

Features

  • Added separate Telnet and SSH selections within the Web Server, to allow user to individually enable/disable each protocol.

Bug Fixes

  • Updated SSH TLS Version.
  • Updated compatibility for use with Velocity Device Manager.
  • IP Address now updates correctly when physically connected to another network.
  • Input labels can now be renamed.
  • Carriage return and linefeed are no longer incorrectly added to RS-232 commands send through the Web Server.
  • VOUT# sta command is now working as intended.

Known Bugs

  • N/A
Previous Releases
Version 1
  • Factory firmware
