Eight-Output 4K HDR HDBaseT Distribution Amplifier

Eight-Output 4K HDR HDBaseT Distribution Amplifier

AT-HDR-CAT-8

  • One HDMI® input and eight HDBaseT™ outputs
  • Extend 4K/60 4:4:4 up to 130’ (40 m)
  • Supports HDR10, HLG, and Dolby® Vision™
  • Pass-through HDMI output
  • CEC display control on each output
  • Audio de-embedding with volume control
  • Also available with 2 outputs, 4 outputs, or 4 extended distance outputs
SKU: AT-HDR-CAT-8 Categories: , , Tags: , , , ,

4K HDR HDBaseT Distribution Amplifier

Long Distance HDBaseT Distribution

Send a single HDMI source to eight displays at distances up to 130′ (40 m) for video distribution applications including hospitality and retail, commercial reception areas or warehouses, and educational AV systems that require multiple screens.

4K HDR Support

Provides 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling as well as HDR10, HLG, and Dolby® Vision™ HDR formats for very high, pristine image quality.

Sophisticated Integration Capabilities

Features and capabilities designed to ease integration in commercial AV distribution applications include HDMI signal pass-through, audio de-embedding, EDID management, CEC display control, RS-232 and IR control extension, remote power for receivers, and HDBaseT link testing.

Unique Features

The Atlona AT-HDR-CAT-8 is a high dynamic range (HDR) distribution amplifier with one HDMI® input and eight HDBaseT™ outputs. Each output transmits 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus support for HDR formats up to 130 ft. (40 m). Also includes integration capabilities designed for commercial AV distribution applications.

4K HDR Support

4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling as well as HDR10, HLG, and Dolby® Vision™ HDR formats.

Long Distance Extension

HDBaseT outputs extend 4K/60 HDR up to 130 feet (40 meters) or 1080p up to 230 feet (70 meters).

CEC Display Control

Send display on/off commands to the pass-through and receiver HDMI outputs using the power button, IP, or RS-232.

Audio De-embedding

De-embed HDMI audio to a balanced analog output with volume control for integration with a separate audio system

Videos

Introducing the AT-HDR-CAT-8

The Atlona AT-HDR-CAT-8 is a high dynamic range (HDR) distribution amplifier with one HDMI® input and eight HDBaseT™ outputs. Each output transmits 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus support for HDR formats, multi-channel audio, control signals, and power up to 130 ft. (40 m) or 1080p up to 230 ft. (70 m).

Setting up the AT-HDR-CAT series

Learn how to set up and configure the AT-HDR-CAT series of 4K HDR HDBaseT distribution amplifiers using the built-in web server.

Details

The Atlona AT-HDR-CAT-8 is a high dynamic range (HDR) distribution amplifier with one HDMI® input and eight HDBaseT™ outputs. Each output transmits 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus support for HDR formats, multi-channel audio, control signals, and power up to 130 ft. (40 m) or 1080p up to 230 ft. (70 m) over Category 6/6A cable. The HDR-CAT-8 features sophisticated integration capabilities designed for commercial AV distribution applications including HDMI signal pass-through, audio de-embedding, EDID management, CEC display control, RS-232 and IR control extension, remote power for receivers, and HDBaseT link testing. It offers compatibility with any TCP/IP or RS-232 control system and is housed in a 1U, full rack width enclosure with external universal power supply. The HDR-CAT-8 is ideal for sending HDR and 4K/60 4:4:4 content to AT-HDR-EX-70C-RX receivers.

The HDR-CAT-8 is part of a family of 4K HDR HDBaseT distribution amplifiers that also includes the HDR-CAT-2 two output, HDR-CAT-4 four output, and HDR-CAT-4ED four output extended distance models.

Applications

  • Hospitality and Retail – ideal for hotel lobbies, malls, stores, and restaurants that need long distance signal extension of high-impact marketing content and program information
  • Commercial – Display company information on screens in reception areas or production and safety information on screens in the warehouse and manufacturing floor
  • Education – Complements lecture hall and auditorium AV systems by allowing presentation content to be distributed to repeater displays located throughout the space

Features

  • 4K HDR distribution amplifier with one HDMI input and eight HDBaseT outputs
  • Pass-through HDMI output to support local monitor
  • 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling
  • Supports HDR10, HLG, and Dolby® Vision™ HDR formats
  • Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT.
  • HDBaseT outputs extend AV, control signals, and power up to 130 feet (40 meters) for 4K HDR or 230 feet (70 meters) for 1080p with Category 6/6A
  • Bidirectional RS-232 and IR control extension for each output
  • Remotely powers compatible receivers over HDBaseT
  • CEC display control sends display power on/off commands to the pass-through HDMI output and HDBaseT receiver HDMI outputs using the power button, IP, or RS-232
  • Audio de-embedding to balanced analog output with volume control for integration with a separate audio system
  • HDBaseT link test verifies cable, termination, and link quality for more reliable installations
  • Multi-channel audio pass-through
  • Cascade up to 8 units to expand system without compromising performance
  • Compliant with HDCP 2.2, the latest specification for passing protected content between devices
  • Manages EDID communications with the source through a display’s EDID or internally stored EDID
  • Intuitive GUI-based configuration using integrated web server
  • Flexible control options via TCP/IP, RS-232, and IR with Atlona Velocity™ or third-party control systems
  • Easy to configure and manage with Velocity Device Manager
  • Front panel includes LEDs for power, HDBaseT link, and HDMI signal status information as well as buttons for power and EDID control
  • Compatible with the AT-HDR-EX-70C-RX receiver for 4K/60 4:4:4 HDR and AT-UHD-EX receivers for 4K/60 4:2:0
  • 1U, full rack width enclosure with rack mounting hardware included
  • Included accessories – rack mounting hardware, power supply, and installation guide
  • To view the product warranty, use the following link: https://atlona.com/warranty/

Specifications

Video
Signal Input – HDMI
Output – HDMI / HDBaseT
Copy Protection HDCP 2.2
Pixel Clock 600 MHz
UHD/HD/SD 4096×2160 (DCI) @ 24/25/30/50/60 Hz
3840×2160 (UHD) @ 24/25/30/50/60 Hz
1920x1080p @ 23.97/24/25/29.97/30/50/60 Hz
1920x1080i @ 50/60 Hz
1280x720p @ 30/50/60 Hz		 720x576p @ 50 Hz
720x576i @ 25/50 Hz
720x480p @ 60 Hz
640x480p @ 60 Hz
VESA 2560×1600 @ 60 Hz (RB)
2048×1536 @ 60 Hz
2048×1200 @ 60 Hz
2048×1080 @ 60 Hz
1920×1200 @ 60 Hz (RB)
1920×1080 @ 60 Hz (RB)
1680×1050 @ 60 Hz
1600×1200 @ 60 Hz
1600×900 @ 60 Hz
1440×900 @ 60 Hz
1400×1050 @ 60 Hz		 1366×768 @ 60 Hz
1360×768 @ 60 Hz
1280×1024 @ 60 Hz
1280×800 @ 60 Hz
1280×768 @ 60 Hz
1280×720 @ 60 Hz
1024×768 @ 60 Hz
800×600 @ 60 Hz
640×480i @ 29.97/30 Hz
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color Depth 8-bit, 10-bit, 12-bit
HDR Up to 4K HDR10 @ 60 Hz, 4K Hybrid-Log Gamma (HLG) @ 60 Hz, and 4K Dolby® Vision™ @ 60 Hz(1)

Audio
HDMI / HDBaseT
Pass-Through Formats		 PCM 2.0
LPCM 5.1
LPCM 7.1
Dolby® Digital
Dolby Digital Plus™		 Dolby TrueHD
Dolby Atmos®
DTS® Digital Surround™
DTS-HD Master Audio™
DTS:X®
Bit Depth Up to 24 bits
Analog Audio
   Format Stereo 2-Channel
   Balanced Output +4 dBu nominal gain, +19 dB headroom
   Frequency Response 20 Hz to 20 kHz, ± 0.5 dB
   THD+N < 0.006% at 20 Hz to 20 kHz
   SNR > 105 dB at 1 kHz, zero clipping @ 0 dBFS, unweighted
Sample Rate 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

Ethernet
Port 1 x RJ45
Standards and Protocols HTTP, Telnet
Speeds 10/100 Mbps
Addressing DHCP, Static – selectable through front panel, IP & RS-232 commands, and built-in web server

RS-232
Port 9 x 5-pin captive screw
Use Unit and external device control and configuration
Baud Rates 2400, 4800, 9600, 19200, 38400, 57600, 115200
Data Flow Bidirectional

IR
Port 9 x 5-pin captive screw
Use Pass-through from control system to sink device
Pass-through from viewing location to source
Frequency Range 30 kHz to 60 kHz

CEC
Ports 1 x HDMI OUT, Type A, 19-pin female; 8 x RJ45 (HDBaseT OUT)
Triggering Through IP, RS-232, and built-in web server

Resolution / Distance 4K/UHD Feet 4K/UHD Meters 1080p Feet 1080p Meters
HDMI IN/OUT 15 5 30 10
CAT5e/6 115 35 200 60
CAT6a/7 130 40 230 70

Buttons and Indicators
Buttons:
POWER, EDID		 2 x momentary, tact-type
Indicators:
HDMI IN/OUT, HDBaseT (1 – 8), LOCK, INT, LEARN		 13 x LED, blue

Connectors
HDMI IN 1 x Type A, 19-pin female
HDMI OUT 1 x Type A, 19-pin female
HDBaseT OUT 8 x RJ45
LAN 1 x RJ45
AUDIO OUT 1 x 5-pin captive screw
RS-232 / IR 9 x 5-pin captive screw
FW 1 x USB-C
DC 48V 1 x 2-pin captive screw

Environmental Fahrenheit Celsius
Operating Temperature +32 to +122 0 to +50
Storage Temperature -4 to +140 -20° to +60°
Operating Humidity (RH) 20% to 90%, non-condensing

Power
Consumption (w/ 8 PoE) 128.6 W
Idle Consumption (no PoE) 8.6 W
BTU/h 29.3
External Power Supply 100 – 240 V AC, 50/60 Hz
Output: 48 V / 4.16 A DC

Dimensions (H x W x D) Inches Millimeters
Unit 1.73 x 17.24 x 10 44 x 438 x 254
Power Supply (AT-PS-48416-C) 1.8 x 3.33 x 7.17 46 x 84.5 x 182

Weight Pounds Kilograms
Device 7.26 3.3

Certification
Device CE, RoHS, FCC
Power Supply CE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC

Compliance
NDAA-899 Yes

1 4K Dolby® Vision™ @ 60 Hz is supported on systems capable of Low Latency Dolby Vision (LLDV) mode. All other 4K modes limited to 30 Hz.

Diagrams

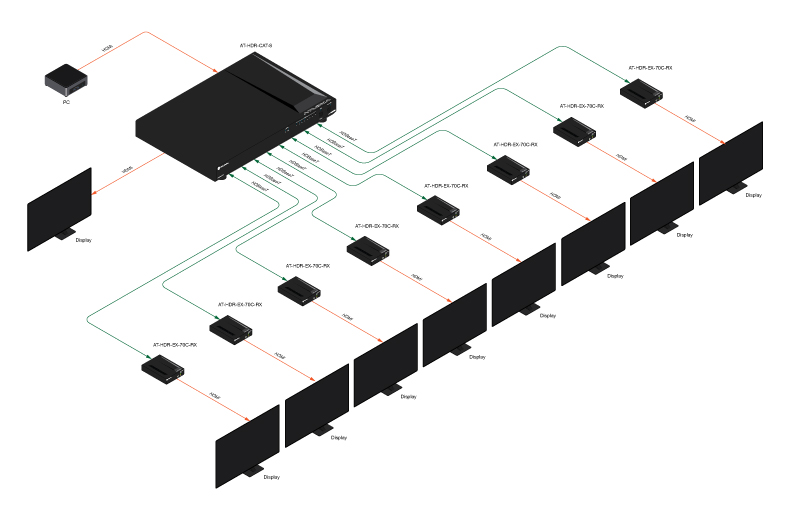

Long distance distribution for eight displays

The HDR-CAT-8 accepts an HDMI source and routes it to eight HDBaseT outputs which carry 4K HDR content to AT-HDR-EX-70C-RX receivers at distances of up to 130 feet (40 meters). The receiver then provides an HDMI output to its connected display. HDMI pass-through allows the signal to be sent to a local display.

Documentation

pdf-icon Datasheet
pdf-icon Ficha de datos
pdf-icon Installation Guide
pdf-icon Guía de instalación
pdf-icon Manual
pdf-icon API

Declaration of Conformity

pdf-icon AT-HDR-CAT-8
pdf-icon CE AT-HDR-CAT-8
pdf-icon UK AT-HDR-CAT-8

Letter of Volatility

pdf-icon AT-HDR-CAT-8

CAD Files

cad-icon-(1) AT-HDR-CAT-8 (dwg)
cad-icon-(1) AT-HDR-CAT-8 (pdf)

Related Products

WordPress Tables Plugin

* NOTE: For resolutions up to 4K/60 4:2:0.

Similar Products

WordPress Tables Plugin
Overview

4K HDR HDBaseT Distribution Amplifier

Long Distance HDBaseT Distribution

Send a single HDMI source to eight displays at distances up to 130′ (40 m) for video distribution applications including hospitality and retail, commercial reception areas or warehouses, and educational AV systems that require multiple screens.

4K HDR Support

Provides 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling as well as HDR10, HLG, and Dolby® Vision™ HDR formats for very high, pristine image quality.

Sophisticated Integration Capabilities

Features and capabilities designed to ease integration in commercial AV distribution applications include HDMI signal pass-through, audio de-embedding, EDID management, CEC display control, RS-232 and IR control extension, remote power for receivers, and HDBaseT link testing.

Unique Features

The Atlona AT-HDR-CAT-8 is a high dynamic range (HDR) distribution amplifier with one HDMI® input and eight HDBaseT™ outputs. Each output transmits 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus support for HDR formats up to 130 ft. (40 m). Also includes integration capabilities designed for commercial AV distribution applications.

4K HDR Support

4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling as well as HDR10, HLG, and Dolby® Vision™ HDR formats.

Long Distance Extension

HDBaseT outputs extend 4K/60 HDR up to 130 feet (40 meters) or 1080p up to 230 feet (70 meters).

CEC Display Control

Send display on/off commands to the pass-through and receiver HDMI outputs using the power button, IP, or RS-232.

Audio De-embedding

De-embed HDMI audio to a balanced analog output with volume control for integration with a separate audio system

Videos

Videos

Introducing the AT-HDR-CAT-8

The Atlona AT-HDR-CAT-8 is a high dynamic range (HDR) distribution amplifier with one HDMI® input and eight HDBaseT™ outputs. Each output transmits 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus support for HDR formats, multi-channel audio, control signals, and power up to 130 ft. (40 m) or 1080p up to 230 ft. (70 m).

Setting up the AT-HDR-CAT series

Learn how to set up and configure the AT-HDR-CAT series of 4K HDR HDBaseT distribution amplifiers using the built-in web server.

Details

Details

The Atlona AT-HDR-CAT-8 is a high dynamic range (HDR) distribution amplifier with one HDMI® input and eight HDBaseT™ outputs. Each output transmits 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus support for HDR formats, multi-channel audio, control signals, and power up to 130 ft. (40 m) or 1080p up to 230 ft. (70 m) over Category 6/6A cable. The HDR-CAT-8 features sophisticated integration capabilities designed for commercial AV distribution applications including HDMI signal pass-through, audio de-embedding, EDID management, CEC display control, RS-232 and IR control extension, remote power for receivers, and HDBaseT link testing. It offers compatibility with any TCP/IP or RS-232 control system and is housed in a 1U, full rack width enclosure with external universal power supply. The HDR-CAT-8 is ideal for sending HDR and 4K/60 4:4:4 content to AT-HDR-EX-70C-RX receivers.

The HDR-CAT-8 is part of a family of 4K HDR HDBaseT distribution amplifiers that also includes the HDR-CAT-2 two output, HDR-CAT-4 four output, and HDR-CAT-4ED four output extended distance models.

Applications

  • Hospitality and Retail – ideal for hotel lobbies, malls, stores, and restaurants that need long distance signal extension of high-impact marketing content and program information
  • Commercial – Display company information on screens in reception areas or production and safety information on screens in the warehouse and manufacturing floor
  • Education – Complements lecture hall and auditorium AV systems by allowing presentation content to be distributed to repeater displays located throughout the space

Features

  • 4K HDR distribution amplifier with one HDMI input and eight HDBaseT outputs
  • Pass-through HDMI output to support local monitor
  • 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling
  • Supports HDR10, HLG, and Dolby® Vision™ HDR formats
  • Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT.
  • HDBaseT outputs extend AV, control signals, and power up to 130 feet (40 meters) for 4K HDR or 230 feet (70 meters) for 1080p with Category 6/6A
  • Bidirectional RS-232 and IR control extension for each output
  • Remotely powers compatible receivers over HDBaseT
  • CEC display control sends display power on/off commands to the pass-through HDMI output and HDBaseT receiver HDMI outputs using the power button, IP, or RS-232
  • Audio de-embedding to balanced analog output with volume control for integration with a separate audio system
  • HDBaseT link test verifies cable, termination, and link quality for more reliable installations
  • Multi-channel audio pass-through
  • Cascade up to 8 units to expand system without compromising performance
  • Compliant with HDCP 2.2, the latest specification for passing protected content between devices
  • Manages EDID communications with the source through a display’s EDID or internally stored EDID
  • Intuitive GUI-based configuration using integrated web server
  • Flexible control options via TCP/IP, RS-232, and IR with Atlona Velocity™ or third-party control systems
  • Easy to configure and manage with Velocity Device Manager
  • Front panel includes LEDs for power, HDBaseT link, and HDMI signal status information as well as buttons for power and EDID control
  • Compatible with the AT-HDR-EX-70C-RX receiver for 4K/60 4:4:4 HDR and AT-UHD-EX receivers for 4K/60 4:2:0
  • 1U, full rack width enclosure with rack mounting hardware included
  • Included accessories – rack mounting hardware, power supply, and installation guide
  • To view the product warranty, use the following link: https://atlona.com/warranty/
Specifications

Specifications

Video
Signal Input – HDMI
Output – HDMI / HDBaseT
Copy Protection HDCP 2.2
Pixel Clock 600 MHz
UHD/HD/SD 4096×2160 (DCI) @ 24/25/30/50/60 Hz
3840×2160 (UHD) @ 24/25/30/50/60 Hz
1920x1080p @ 23.97/24/25/29.97/30/50/60 Hz
1920x1080i @ 50/60 Hz
1280x720p @ 30/50/60 Hz		 720x576p @ 50 Hz
720x576i @ 25/50 Hz
720x480p @ 60 Hz
640x480p @ 60 Hz
VESA 2560×1600 @ 60 Hz (RB)
2048×1536 @ 60 Hz
2048×1200 @ 60 Hz
2048×1080 @ 60 Hz
1920×1200 @ 60 Hz (RB)
1920×1080 @ 60 Hz (RB)
1680×1050 @ 60 Hz
1600×1200 @ 60 Hz
1600×900 @ 60 Hz
1440×900 @ 60 Hz
1400×1050 @ 60 Hz		 1366×768 @ 60 Hz
1360×768 @ 60 Hz
1280×1024 @ 60 Hz
1280×800 @ 60 Hz
1280×768 @ 60 Hz
1280×720 @ 60 Hz
1024×768 @ 60 Hz
800×600 @ 60 Hz
640×480i @ 29.97/30 Hz
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color Depth 8-bit, 10-bit, 12-bit
HDR Up to 4K HDR10 @ 60 Hz, 4K Hybrid-Log Gamma (HLG) @ 60 Hz, and 4K Dolby® Vision™ @ 60 Hz(1)

Audio
HDMI / HDBaseT
Pass-Through Formats		 PCM 2.0
LPCM 5.1
LPCM 7.1
Dolby® Digital
Dolby Digital Plus™		 Dolby TrueHD
Dolby Atmos®
DTS® Digital Surround™
DTS-HD Master Audio™
DTS:X®
Bit Depth Up to 24 bits
Analog Audio
   Format Stereo 2-Channel
   Balanced Output +4 dBu nominal gain, +19 dB headroom
   Frequency Response 20 Hz to 20 kHz, ± 0.5 dB
   THD+N < 0.006% at 20 Hz to 20 kHz
   SNR > 105 dB at 1 kHz, zero clipping @ 0 dBFS, unweighted
Sample Rate 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

Ethernet
Port 1 x RJ45
Standards and Protocols HTTP, Telnet
Speeds 10/100 Mbps
Addressing DHCP, Static – selectable through front panel, IP & RS-232 commands, and built-in web server

RS-232
Port 9 x 5-pin captive screw
Use Unit and external device control and configuration
Baud Rates 2400, 4800, 9600, 19200, 38400, 57600, 115200
Data Flow Bidirectional

IR
Port 9 x 5-pin captive screw
Use Pass-through from control system to sink device
Pass-through from viewing location to source
Frequency Range 30 kHz to 60 kHz

CEC
Ports 1 x HDMI OUT, Type A, 19-pin female; 8 x RJ45 (HDBaseT OUT)
Triggering Through IP, RS-232, and built-in web server

Resolution / Distance 4K/UHD Feet 4K/UHD Meters 1080p Feet 1080p Meters
HDMI IN/OUT 15 5 30 10
CAT5e/6 115 35 200 60
CAT6a/7 130 40 230 70

Buttons and Indicators
Buttons:
POWER, EDID		 2 x momentary, tact-type
Indicators:
HDMI IN/OUT, HDBaseT (1 – 8), LOCK, INT, LEARN		 13 x LED, blue

Connectors
HDMI IN 1 x Type A, 19-pin female
HDMI OUT 1 x Type A, 19-pin female
HDBaseT OUT 8 x RJ45
LAN 1 x RJ45
AUDIO OUT 1 x 5-pin captive screw
RS-232 / IR 9 x 5-pin captive screw
FW 1 x USB-C
DC 48V 1 x 2-pin captive screw

Environmental Fahrenheit Celsius
Operating Temperature +32 to +122 0 to +50
Storage Temperature -4 to +140 -20° to +60°
Operating Humidity (RH) 20% to 90%, non-condensing

Power
Consumption (w/ 8 PoE) 128.6 W
Idle Consumption (no PoE) 8.6 W
BTU/h 29.3
External Power Supply 100 – 240 V AC, 50/60 Hz
Output: 48 V / 4.16 A DC

Dimensions (H x W x D) Inches Millimeters
Unit 1.73 x 17.24 x 10 44 x 438 x 254
Power Supply (AT-PS-48416-C) 1.8 x 3.33 x 7.17 46 x 84.5 x 182

Weight Pounds Kilograms
Device 7.26 3.3

Certification
Device CE, RoHS, FCC
Power Supply CE, FCC, UL, CUL, TUV-GS, CB, PSE, CCC

Compliance
NDAA-899 Yes

1 4K Dolby® Vision™ @ 60 Hz is supported on systems capable of Low Latency Dolby Vision (LLDV) mode. All other 4K modes limited to 30 Hz.

Diagrams

Diagrams

Long distance distribution for eight displays

The HDR-CAT-8 accepts an HDMI source and routes it to eight HDBaseT outputs which carry 4K HDR content to AT-HDR-EX-70C-RX receivers at distances of up to 130 feet (40 meters). The receiver then provides an HDMI output to its connected display. HDMI pass-through allows the signal to be sent to a local display.
