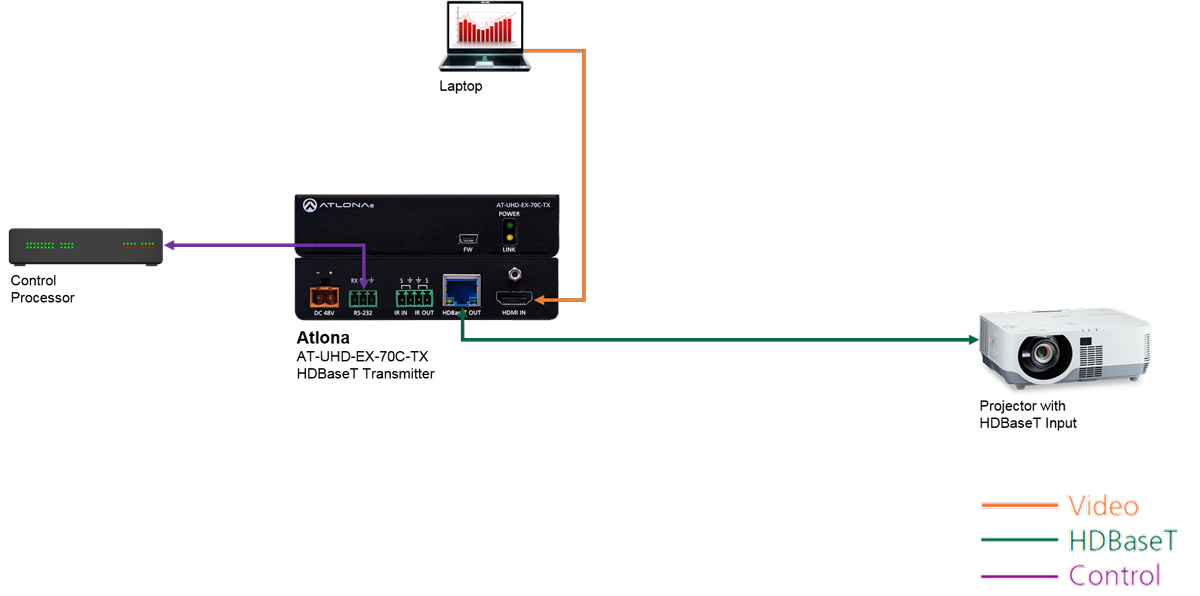

The Atlona AT-UHD-EX-70C-TX is an HDBaseT transmitter for HDMI transmission up to 230 feet (70 meters) over category cable with RS-232 and IR control pass-through. It transmits video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded multi-channel audio. The AT-UHD-EX-70C-TX is HDCP 2.2 compliant and supports EDID communication. This HDBaseT transmitter is externally powered by the included power supply, making it ideal for extending AV and control directly to a projector with an HDBaseT input.
The AT-UHD-EX-70C-TX provides a value-oriented integration solution for simple point-to-point signal extension to a display, or expanding the scope of an AV system design with remote input connectivity. It features a quarter rack width metal enclosure and includes surface mounting brackets for easy under-table, furniture, or on-wall installation.
Applications
The AT-UHD-EX-70C-TX is ideal for use in:
- Extending AV and control to HDBaseT-equipped projectors and flat-panel displays
- Integrating a remote source or HDMI connection point into an Atlona switcher with an HDBaseT input
- Installations in which UHD-EX Series transmitters are to be used with third-party HDBaseT devices
Product Compatibility
The AT-UHD-EX-70C-TX is compatible with the AT-UHD-EX-70C-RX receiver, as well as Atlona switchers and matrix switchers with HDBaseT inputs. See below for a list of compatible products. This transmitter is also ideal for extending AV and control to displays with HDBaseT inputs.
| Product | Description |
|---|---|
| AT-IR-CS-RX | IR Receiver Cable for PoE Extenders |
| AT-UHD-EX-70C-RX | 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE |
| AT-UHD-CLSO-824 | 8x2 Multi-Format Matrix Switcher with Dual, Mirrored HDMI / HDBaseT Outputs |
| AT-UHD-SW-5000ED | Five-Input HDMI / HDBaseT Switcher with Mirrored HDMI / HDBaseT Outputs |
| AT-RACK-1RU-ME | Multi-extender Rack Mount Shelf |
Atlona UHD-EX Series
The AT-UHD-EX-70C-TX is part of the Atlona UHD-EX Series of HDBaseT extenders. See below for a complete listing of transmitters, receivers, and extender kits.
| Product | Device Type | HDBaseT Transmission* | 4K/UHD & HDR Capability | Signals Extended | Device Powering | Atlona Switcher Compatiblity | Additional Features |
|---|---|---|---|---|---|---|---|
| AT-UHD-EX-70C-TX | Transmitter | 230 feet (70 meters) | 4K/60 4:2:0 4K/24 HDR10 130 feet (40 meters) | HDMI RS-232 IR | Local powering | SW-5000ED and CLSO Series with HDBaseT inputs | Ideal for extending AV and control to an HDBaseT-equipped projector |
| AT-UHD-EX-70C-RX | Receiver | 230 feet (70 meters) | 4K/60 4:2:0 4K/24 HDR10 130 feet (40 meters) | HDMI RS-232 IR | Remotely powered by AT-UHD-EX-70C-TX or Atlona switcher | UHD-PRO3, UHD-CAT, SW, CLSO, and HDVS-200 Series with HDBaseT outputs | |
| AT-HDR-EX-70C-KIT | Transmitter + receiver kit | 230 feet (70 meters) | 4K/60 4:4:4 4K/60 HDR10 Dolby Vision @ 30 Hz 130 feet (40 meters) | HDMI RS-232 IR | Receiver powered by transmitter | ||
| AT-HDR-EX-70-2PS | Transmitter + receiver kit | 230 feet (70 meters) | 4K/60 4:4:4 4K/60 HDR10 Dolby Vision @ 30 Hz 130 feet (40 meters) | HDMI only | Local powering at transmitter and receiver | ||
| AT-UHD-EX-100CE-TX | Transmitter | 330 feet (100 meters) | 4K/60 4:2:0 4K/24 HDR10 | HDMI RS-232 IR Ethernet | Local powering | SW-5000ED and CLSO Series with HDBaseT inputs | Ideal for extending AV and control to an HDBaseT-equipped projector |
| AT-UHD-EX-100CE-TX-PD | Transmitter | 330 feet (100 meters) | 4K/60 4:2:0 4K/24 HDR10 | HDMI RS-232 Ethernet | Remotely powered by AT-OME-RX11 or Atlona switcher | SW-5000ED and CLSO Series with HDBaseT inputs | |
| AT-UHD-EX-100CE-RX | Receiver | 330 feet (100 meters) | 4K/60 4:2:0 4K/24 HDR10 | HDMI RS-232 IR Ethernet | Remotely powered by AT-OME-RX11 or Atlona switcher | UHD-PRO3, UHD-CAT, SW, CLSO, and HDVS-200 Series with HDBaseT outputs | |
| AT-HDR-EX-100CEA-KIT | Transmitter + receiver kit | 330 feet (100 meters) | 4K/60 4:4:4 4K/60 HDR10 Dolby Vision @ 30 Hz | HDMI RS-232 IR Ethernet | Receiver powered by transmitter | Provides audio return pathway |
Atlona HDR-EX Series
Also available from Atlona are the HDR-EX Series for extending 4K HDR and control signals over HDBaseT.
| UHD-EX Series | HDR-EX Series | |
|---|---|---|
| Highest resolution | 3840x2160 @ 60 Hz up to 4:2:0 | 3840x2160 60 Hz up to 4:4:4 |
| HDR10 | Yes (up to 4K @ 24 Hz, 10-bit, 4:2:0) | Yes (up to 60 Hz) |
| Dolby Vision HDR | No | Yes (up to 30 Hz) |
| Legacy cable set-top box support (Cisco, Scientific Atlanta) | No | Yes |
| Auto EDID correction | No | Yes |
| Hot plug detection (HPD) management | No | Yes |
| HDBaseT cable test mode | No | Yes |
Features
4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- Supports 4K/60 4:2:0 and 4K/30 4:4:4
- Allows 4K/UHD transmission when used with a compatible HDBaseT-equipped display or HDBaseT receiver
HDCP 2.2 compliant
- Adheres to latest specification for High-bandwidth Digital Content Protection
- Allows protected content stream to pass between devices
Supports 4K HDR10 @ 24 Hz
- Extends 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color)
Local AC powering
- Includes external power supply – ideal for point-to-point installations with an HDBaseT-equipped projector
- IEEE 802.3af PoE Power Sourcing Equipment (PSE) – can supply power over HDBaseT to a remote receiver, such as the AT-UHD-EX-70C-RX*
- Saves time and integration costs
Long distance HDBaseT extension
- Transmits AV and control up to 230 feet (70 meters) @ 1080p or 130 feet (40 meters) @ 4K/UHD using CAT6a/7 cable
- Uses easy-to-integrate category cable for low-cost, reliable system installation
Extends bidirectional RS-232 and IR control signals
- Control signals travel over HDBaseT link to device for maximum control system flexibility
- Simplifies integration of source, control system, and display
Rear panel I/O connectors
- Placement of ports on rear panel simplifies wire management
- Saves installation time and eliminates clutter
Multi-channel audio compliant
- Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, DTS-HD Master Audio™, and DTS:X™
- Allows any multi-channel audio stream to be used within a professional audio system
Field-updatable firmware
- Front panel USB port provides an easy means for device updates
- Ensures long-term system return on investment
Front panel Power and Link status LEDs
- LED indicators provide power and HDBaseT link status information
- Provides easy setup and troubleshooting
Power chaining
- Included power supply provides ample power for up to three Atlona HDBaseT extenders
- Four Atlona HDBaseT extenders can be powered using the optional AT-PS-483125-C power supply
- Reduces clutter from multiple power supplies in equipment racks
Low-profile, 1 inch (25 mm) high quarter rack-width enclosure
- Easy installation into racks and confined spaces
- Keeps devices out-of-sight when placed in public spaces
Included accessories
- User guide, surface mounting brackets, and external universal power supply
Product warranty
- To view the product warranty, use the following link: https://atlona.com/warranty/
