SFP+ Fiber Optic Transceiver Module

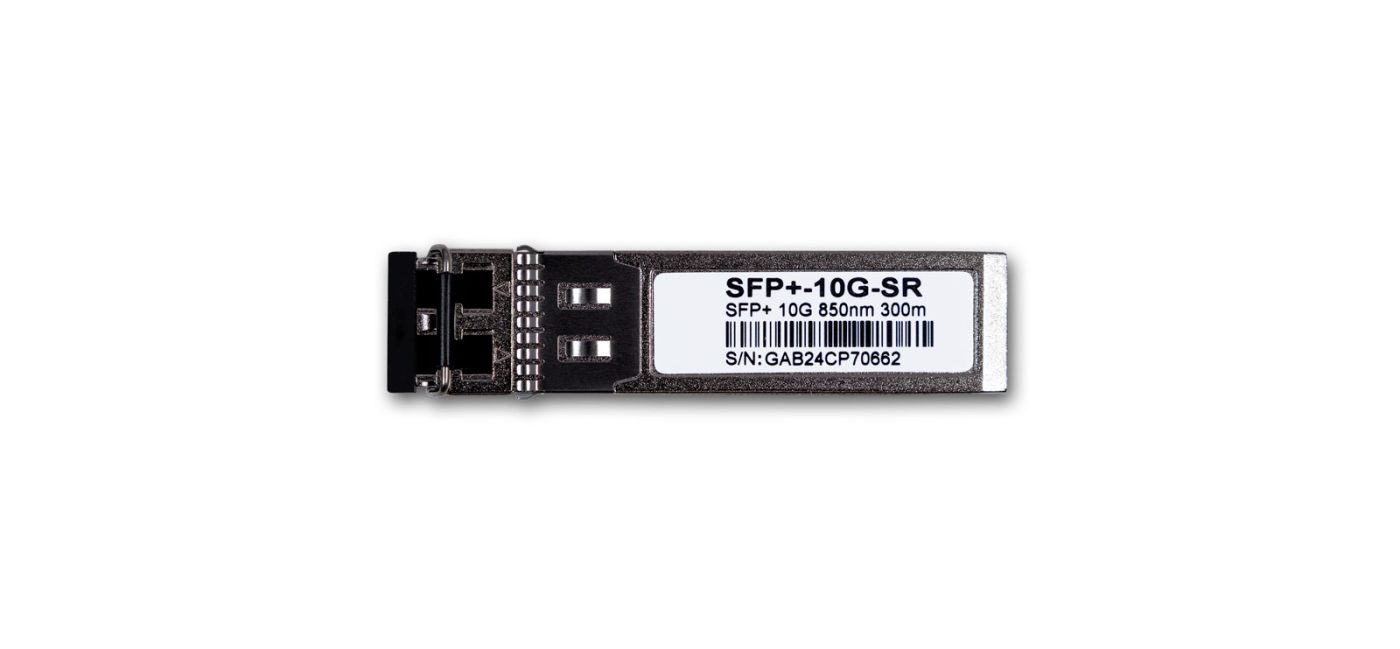

AT-SFP+-10GE-SR-TOP1-1600×742
AT-SFP-PLUS-10GE-SR product photo

SFP+ Fiber Optic Transceiver Module

AT-SFP-PLUS-10GE-SR

  • SFP+ fiber optic transceiver module
  • Fits into SFP+ cage of Atlona products with SDVoE® technology, such as the PRO5 Series
  • Allows long-distance 10GbE connectivity up to 300 meters (980 feet) with OM3 multi mode fiber-optic cable
  • LC duplex connector
  • Hot-swappable installation and removal
SKU: AT-SFP-PLUS-10GE-SR Categories: , Tags: , , , , , , , , ,

Coming Soon ***


SFP+ Fiber Optic Transceiver Module

The Atlona AT-SFP-PLUS-10GE-SR is an SFP+ (small form factor pluggable) fiber optic transceiver module. It fits into the SFP+ cage of Atlona products with SDVoE technology, such as the PRO5 Series. The SFP-PLUS-10GE-SR allows long-distance 10GbE connectivity up to 300 meters (980 feet) with OM3 multi mode fiber-optic cable.

Applications

  • Long distance extension – Atlona compatible devices with the SFP-PLUS-10GE-SR modules can extend 4K/60 4:4:4 video over distances well-exceeding the 100-meter capability over copper 10GbE cable.
  • Existing fiber optic cabling – The availability of unused fiber in a facility’s cable plant, also known as dark fiber, can be an appealing option for integrators without having to pull new cable for an AV system installation.

Features

  • SFP+ fiber optic transceiver module
  • Fits into SFP+ cage of Atlona products with SDVoE technology, such as the PRO5 Series
  • Allows long-distance 10GbE connectivity up to 300 meters (980 feet) with OM3 multi mode fiber-optic cable
  • LC duplex connector
  • Hot-swappable installation and removal

Specifications

Physical
Form Factor SFP+
Transmitter Type VCSEL
Receiver Type PIN
Max. Operating Distance Feet Meters
50/125 μm multimode fiber (OM3) 984 300
Connector
Type 1 x LC, duplex
Performance
Wavelength Range 840 ≤ λ ≤ 860 nm
Protocol IEEE 802.3ae
Maximum Data Rate 10.3125 Gbs
Extinction Ratio ER ≥ 3 dB
Receiver Sensitivity OMA ≤-11.1 dBm
DDM/DDMI Supported
Power
Consumption < 1.0 W
MTBF 4,986,536 hours (569 years)
Environmental Fahrenheit Celsius
Operating Temperature +32° to +158° 0° to +70°
Storage Temperature -40° to +185° -40° to +85°
Operating Humidity 85% (at +25° C), non-condensing
Dimensions Inches Millimeters
Unit 0.46 x 0.53 x 2.19 11.9 x 13.7 x 55.7
Weight Pounds Kilograms
Unit 0.4 0.0171
Compliance
Standards SFF-8024, SFF-8431, SFF-8472
Certification
Device UL 1950 CSA 22.2 No. 950, RoHS
Warranty
3 years View the full warranty information here: https://atlona.com/warranty

Resources

Documentation

pdf-icon Datasheet
