Challenge
Interactive displays and projectors are becoming more prevalent in K-12 because they help create a dynamic classroom environment that promotes collaboration, creativity, and active learning. Teachers are no longer tethered to the computer at their desk and students can work on lessons directly with what is essentially a large touch screen. However, reliable transmission of AV content as well as USB controls between the instructor computer and the interactive display needs to be carefully considered. Especially when distances exceed the relatively short cable lengths supported by today’s high data rate video and control signals.
Solution
Atlona offers several Omega™ Series products specifically designed to address the distance limitations of traditional cables related to high resolution AV and USB signals. Transmitter and receiver pairs utilize a sophisticated transmission technology called HDBaseT™ that can extend these signals up to 330’ (100 m) over a single low-cost Category cable, which is common to networking connections. This allows for reliable performance of AV and USB between the computer and display even if the cable is routed through the wall, in the ceiling, or under the floor.
Application Design
The OME-EX-KIT-LT is ideal for classroom environments that require extension of AV signals from the teacher’s desk to an interactive display at the front of the room up to 330’ (100 m) away. It also extends USB signals back from the display to the computer for control.

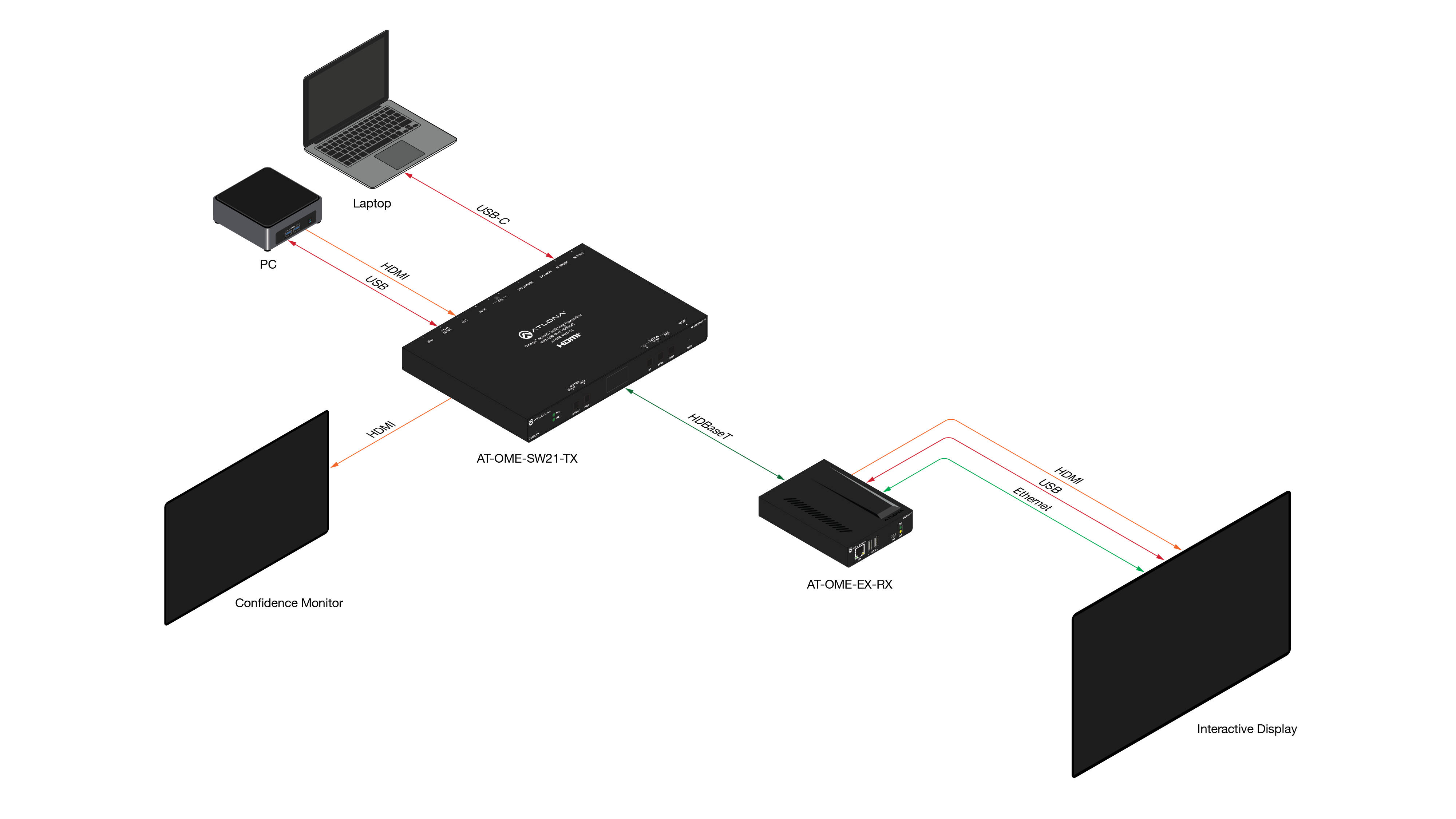

The AT-OME-SW21-TX is a great option when multiple sources or connection types are needed, such as a room PC with HDMI and an instructor laptop with USB-C. It also features auto-switching and automatic display control. This means that it will automatically turn the display on and switch to the appropriate input when a source is connected. When the source is disconnected, it will shut the system down to conserve energy.
See the Products Featured sections below to learn about more Omega Series products that also support extension of AV and USB signals between computers and interactive displays. There are a variety of HDMI and USB-C connection combinations as well as options for mounting on a wall or under a desk.
Project Consultation
Atlona is here to help guide you to the right solution for your next project. Our trained sales engineers work with you, uncovering the details that make the difference between a good project and a great project. Let us help you today!
Get a Free ConsultationProducts Featured - Extender Kits
AT-OME-EX-KIT-LT
The AT-OME-EX-KIT-LT is an HDBaseT extender kit for transmission of AV, USB, and control signals over distances up to 130 feet (40 meters). The kit includes a furniture mount transmitter with HDMI, USB-B host, and two USB-A device connections as well as a furniture mount receiver with HDMI and two USB-A device connections.
AT-OME-EX-WP-KIT-LT
The Atlona AT-OME-EX-WP-KIT-LT is an HDBaseT extender kit for transmission of AV, USB, and control signals over distances up to 130 feet (40 meters). The kit includes a US one-gang, wallplate form factor transmitter with HDMI, USB-B host, and USB-A device connections as well as a furniture mount receiver with HDMI and two USB-A device connections.
Products Featured - Transmitters (Select One)
AT-OME-EX-TX
The AT-OME-EX-TX is a furniture mount HDBaseT transmitter with HDMI, USB-B host, and two USB-A device connections supporting extension of AV, USB, Ethernet, and control signals up to 330 feet (100 meters).
AT-OME-EX-TX-WP
The AT-OME-EX-TX-WP is a wall mount HDBaseT transmitter with HDMI, USB-B host, and USB-A device connections supporting extension of AV, USB, and control signals up to 330 feet (100 meters).
AT-OME-EX-TX-WPC
The AT-OME-EX-TX-WPC is a wall mount HDBaseT transmitter with USB-C AV and USB host as well as USB-A device connections supporting extension of AV, USB, and control signals up to 330 feet (100 meters).
AT-OME-SW21-TX
The AT-OME-SW21-TX is a furniture mount HDBaseT transmitter with USB-C AV and USB host, HDMI, USB-B host, and two USB-A device connections supporting extension of AV, USB, Ethernet, and control signals up to 330 feet (100 meters).
AT-OME-SW21-TX-WPC
The AT-OME-SW21-TX-WPC is a wall mount HDBaseT transmitter with USB-C AV and USB host, HDMI, USB-B host, and USB-A device connections supporting extension of AV and USB signals up to 330 feet (100 meters).
Products Featured - receiver (required)
AT-OME-EX-RX
The AT-OME-EX-RX is a furniture mount HDBaseT receiver with HDMI and two USB-A device connections supporting extension of AV, USB, Ethernet, and control signals up to 330 feet (100 meters).
