The Atlona AT-HDR-H2H-88MA is an 8×8 matrix switcher for high dynamic range (HDR) formats. Part of the comprehensive family of Atlona 4K HDR integration products, it is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The HDR-H2H-88MA is ideal for residential applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It includes EDID and HDCP management features, and can send CEC display control* independently to each output. An unbalanced analog audio output is paired with each HDMI input for sending de-embedded HDMI audio to a whole-house audio system. The HDR-H2H-88MA can be controlled via Ethernet, RS-232, and IR.
The HDR-H2H-88MA is designed to deliver dependable, pristine-quality image presentations in residential as well as commercial applications.
(Note: The HDR-H2H-88MA de-embeds HDMI two-channel PCM audio. For extracting and downmixing Dolby® and DTS® audio, Atlona recommends the AT-HDR-M2C audio converter.)
* Consumer Electronics Control (CEC): Atlona does not guarantee the function of CEC with all televisions. We can confirm proper operation with many current Samsung, Panasonic, Sony, and LG TVs. Many manufacturers do not support the CEC “off” command when sent from a source and older TVs use proprietary commands. Atlona only supports those TVs that follow CEC command structure from HDMI 1.2a and support the “off” command when issued by a source. We encourage any dealer to get evaluation product from Atlona prior to designing a system around this control technology or be prepared to use other methods to control their displays if Atlona CEC is not compatible with the installed displays.
Applications

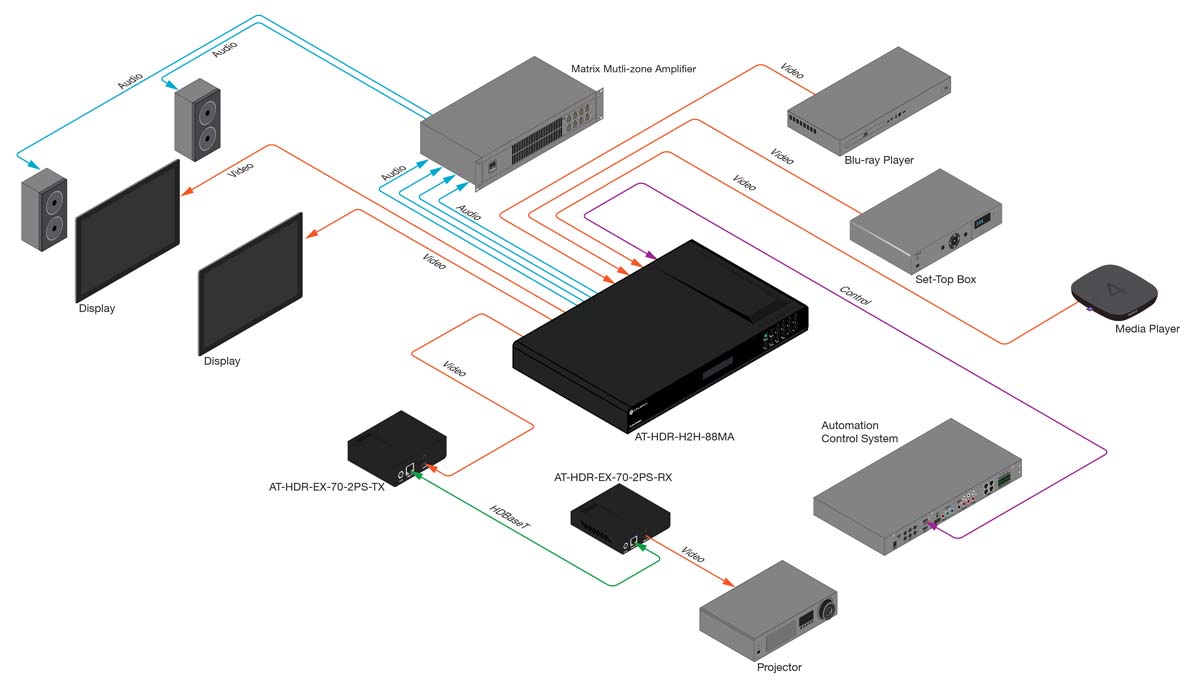

- Residential installations – The HDR-H2H-88MA is designed for AV systems with the latest UHD and HDR sources such as Ultra HD Blu-ray players, plus compatible televisions and projectors.
- TV showrooms – The HDR-H2H-88MA can be used for reliable content distribution to televisions, to properly demonstrate the quality and appeal of 4K and HDR programming.
- Professional AV applications – Atlona 4K HDR products are ideal for full-motion, highly detailed 4K graphics presentations for visualization, 3D renderings, simulations, and more.
Configured and Managed by Velocity™ Device Manager
Velocity Device Manager is a powerful network software platform ideal for configuring, managing, and monitoring the HDR-H2H-88MA and other Atlona IP-controllable devices over a LAN, WAN, or VPN. Velocity Device Manager is available free from Atlona, and greatly streamlines installation and maintenance of several Atlona products throughout a facility or enterprise, from a standard web browser.
Features
8×8 matrix switcher for HDMI signals
- Delivers high performance, reliable HDMI signal matrix switching
- Easy to install and deploy in residential and commercial applications
4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
- Ideal for new and emerging 4K/UHD and HDR-capable sources and displays
- Compatible with 4K HDR10 and Dolby® Vision™ @ 60 Hz, as well as HLG (Hybrid Log-Gamma) for 60p HDR broadcast services
HDCP 2.2 compliant
- Adheres to latest specification for High-bandwidth Digital Content Protection
- Allows protected content stream to pass between devices
Independent CEC display control to each output
- Sends display power on/off control to a specific HDMI output
- Enables independent control of displays connected to the matrix switcher (as supported by the display manufacturer)
- CEC control can be triggered by IP or RS-232 control commands
EDID management
- Manages EDID communications with the source through a display’s EDID or internally stored EDID
- Ensures desired audio formats and video resolutions are provided to the AV system
HDCP management
- HDCP compliance can be disengaged through Velocity Device Manager or other control system
- Allows non-protected material from PCs to pass to non-compliant displays, streaming devices, and teleconference systems; protected content is not transmitted
HDMI audio de-embedding* for each input
- Extracts HDMI two-channel PCM audio to an unbalanced analog audio output paired with a corresponding HDMI input
- Provides an additional integration option for whole-house as well as commercial audio systems
- * For extracting and downmixing Dolby and DTS audio, Atlona recommends the AT-HDR-M2C audio converter.
TCP/IP, RS-232, and IR control
- Flexible control options for compatibility with Atlona Velocity™ and third-party control systems
- Reduces integration time and costs
Intuitive GUI-based configuration using integrated web server
- Offers menu-based configuration of network settings, RS-232 settings, matrix switching, EDID and HDCP management, and audio
- Allows fast configuration of internal product settings and troubleshooting from a mobile device or PC in the field
Configured and managed by Velocity Device Manager
- This IP-controllable product is remotely managed by Velocity Device Manager
- Integrates product configuration, management, and updates to reduce installation time and enable remote support
Multi-channel audio compliant
- Passes through multi-channel audio formats from the HDMI inputs
- Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®
Field-updatable firmware
- Device can be updated in the field via the web GUI or Velocity Device Manager
- USB port also available for firmware updates
Front panel button controls and LCD menu display
- Matrix switcher can conveniently be controlled, configured, and monitored from the front panel
- Provides easy setup, user operation, and troubleshooting
Rack mountable 1U, full-rack width enclosure
- Installs easily in rack mounted systems with included 19″ rack mount brackets
- Reduces installation time and cost
Included accessories
- Installation guide, rack mounting brackets, and external universal power supply
